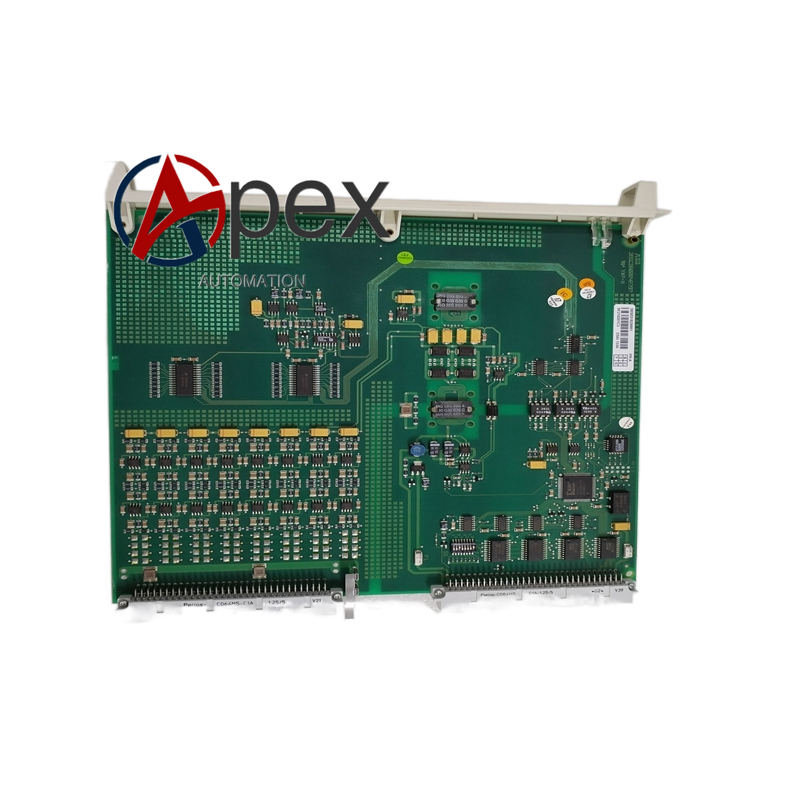

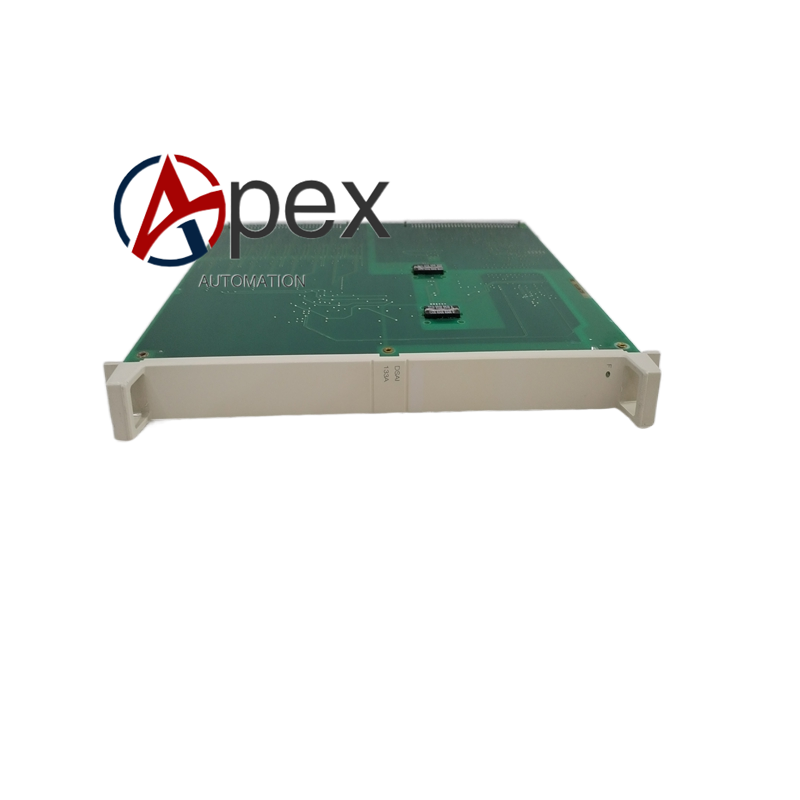

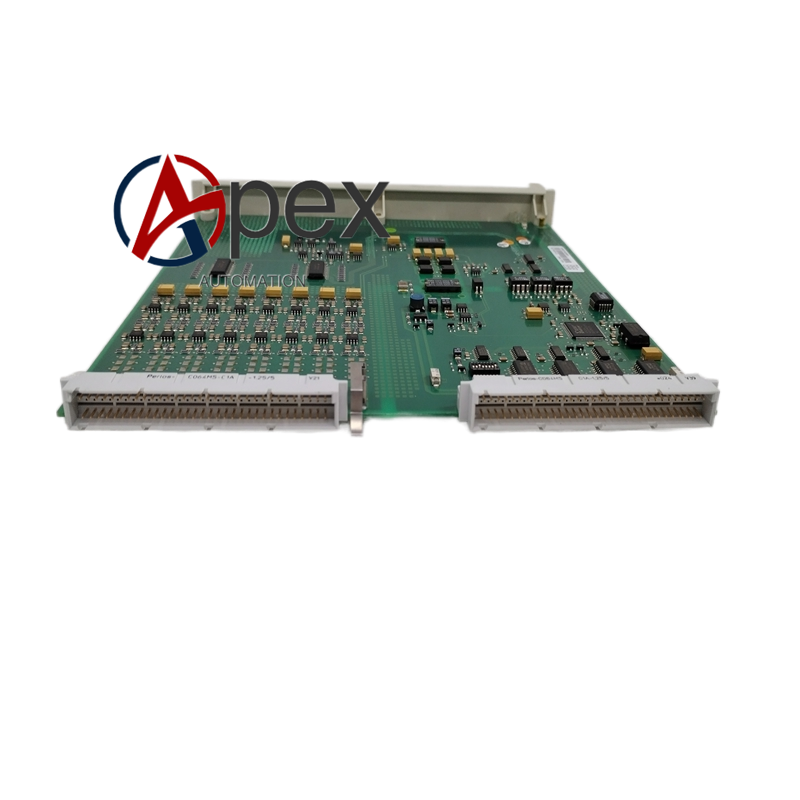

ABB DSAI133A Analog Input Module

Technical Specifications Model: DSAI133A System Compatibility: ABB Advant OCS DCS system Input Channel Quantity: 8 analog input channels Input Signal Type: 4‑20 mA current input A/D Conversion Resolution: 12‑bit Isolation: Group‑wise galvanic isolation Power Supply: From Advant rack backplane Mounting: Eurocard rack plug‑in module Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features Eight‑channel 4‑20 mA analog current input for field transmitter signal acquisition. 12‑bit high‑precision analog‑to‑digital conversion completes analog‑signal digital quantization. Group‑wise galvanic isolation suppresses field‑side common‑mode interference. Built‑in over‑range detection function monitors over‑scale and under‑range of input signal. Front‑panel LED indicators show module power‑on, running and fault status. Integrated hardware self‑diagnosis monitors power‑supply abnormality and internal circuit fault. Supports rack hot‑swap under authorized maintenance conditions of Advant system.

Application Scenarios Advant OCS system DSAI133A analog input module spare‑part replacement. Legacy chemical, pulp‑paper industry DCS cabinet process‑variable signal acquisition. Old‑generation ABB DCS system maintenance and hardware retrofit projects.

Usage Notes Field input signal shall keep within 4‑20 mA rated signal range. Signal cable adopts shielded twisted‑pair cable and implements single‑point shielding earthing. Periodically inspect terminal fastening condition and remove cabinet dust accumulation. Avoid installation location near strong electromagnetic interference sources. Execute lock‑out‑tag‑out safety procedure before module extraction or replacement.
