Technical Specifications Model: DI880 System Compatibility: ABB S800 I/O, AC800M Controller Input Channel Quantity: 16 channels Input Signal: 24 V DC sink/source configurable Isolation: Channel‑to‑channel galvanic isolation, 2500 V AC SOE Time‑stamp Resolution: 0.25 ms Input Filter: Configurable 0‑100 ms debounce filter Power Supply: From S800 rack backplane Mounting: DIN‑rail S800 rack plug‑in Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE, UL

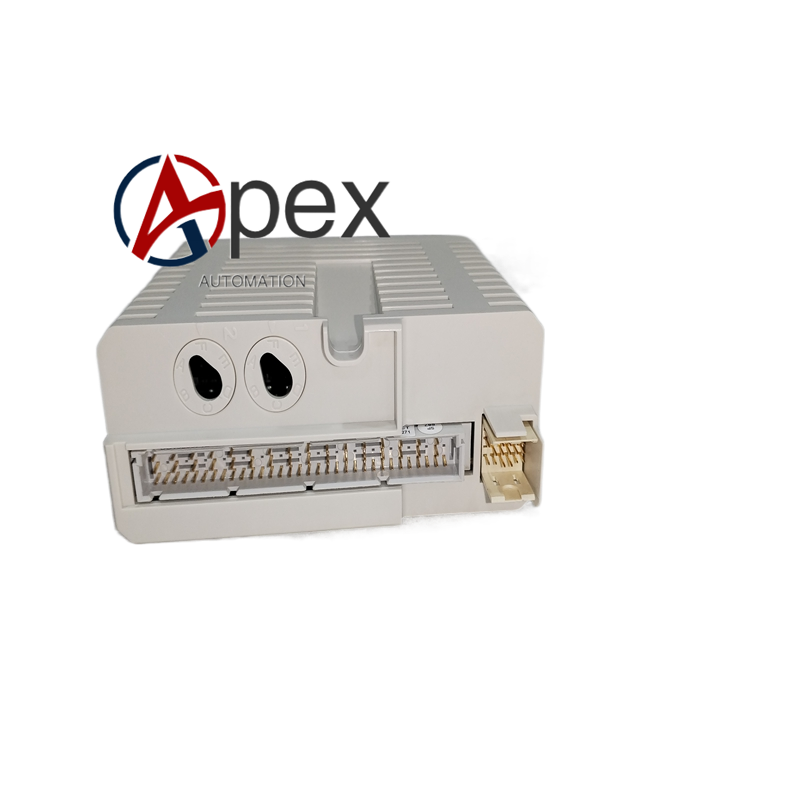

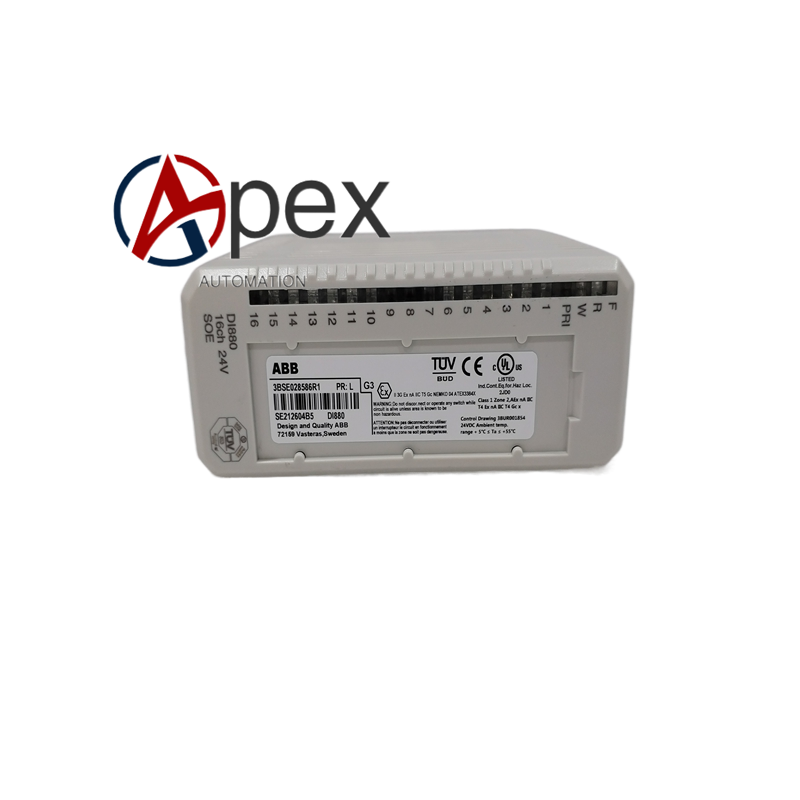

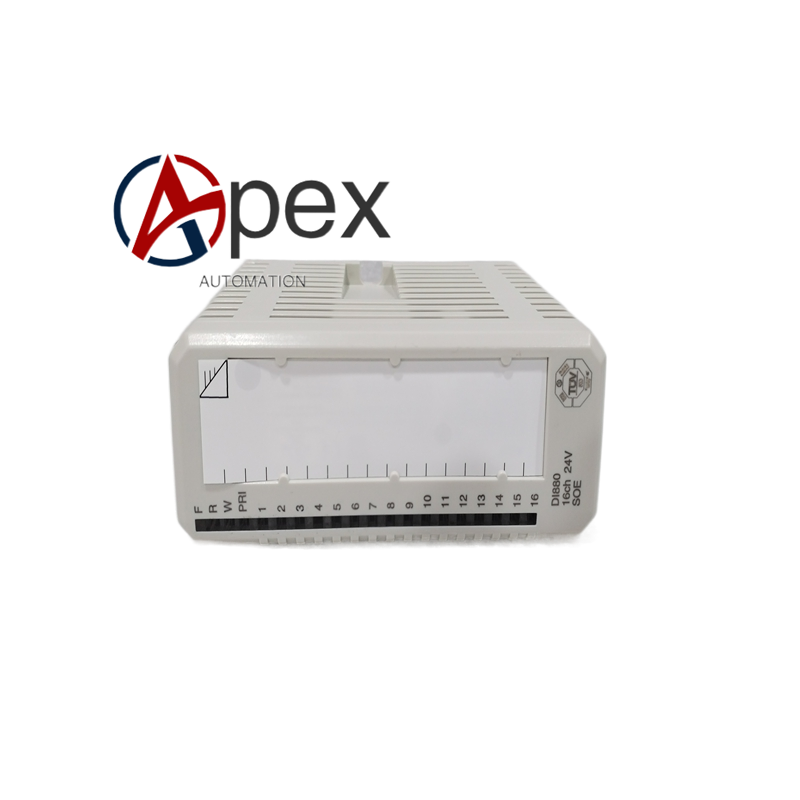

Functional Features Sixteen independent digital input channels support both sink and source 24 V DC field signals. Channel‑by‑channel galvanic isolation eliminates ground loop interference between field points. High‑precision SOE time‑stamping records state change events for post‑fault analysis. Configurable debounce filter suppresses mechanical contact bounce and field interference pulses. Per‑channel front‑panel LED indicators display real‑time signal status. Complete hardware self‑diagnosis covers power supply, communication and internal circuit faults. Supports hot‑swap operation on S800 I/O rack under authorized maintenance conditions.
Application Scenarios S800 I/O system DI880 spare‑part replacement projects. Power plant interlock cabinet, chemical plant safety interlock signal acquisition. Process automation projects demanding high‑precision SOE event sequence recording.
Installation Requirements Insert DI880 into target slot of S800 I/O rack and engage side spring lock. Connect 24 V DC field discrete signal cables to front screw terminals and tighten to specified torque. Set debounce filter and SOE parameters via AC800M engineering tool. Implement protective earthing following S800 system grounding specification. Separate field signal cables from high‑power power cables inside cabinet. Reserve ventilation space around module slot. Ambient temperature shall maintain within 0 ℃ ~ +55 ℃ without condensation.
