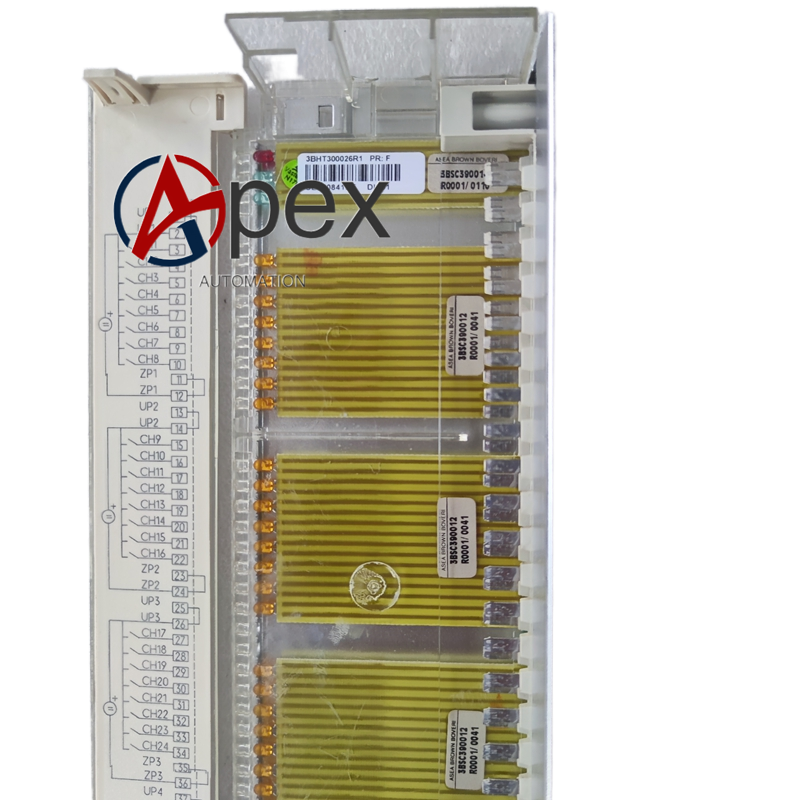

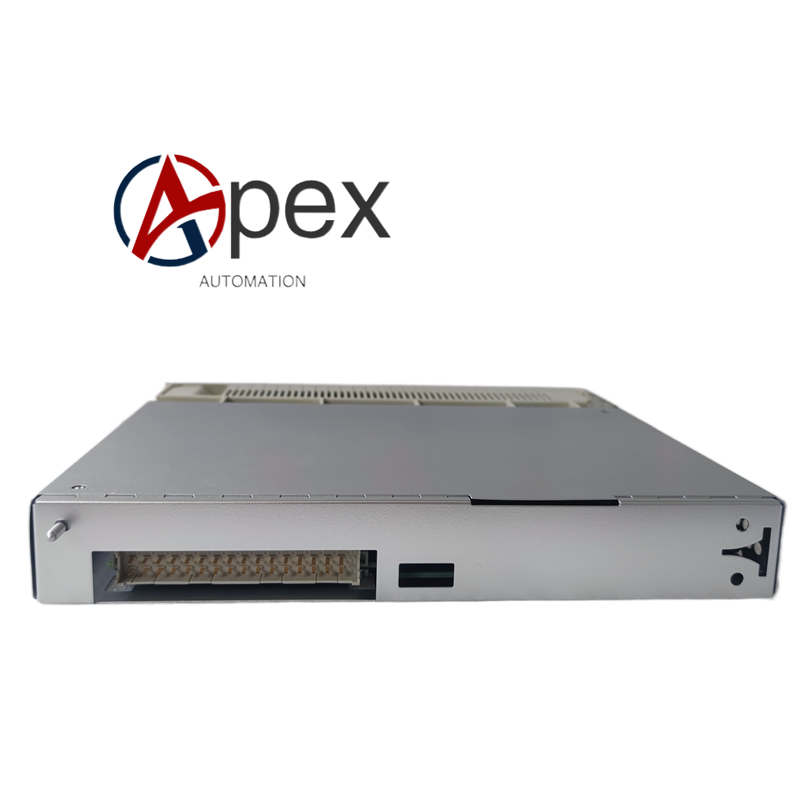

ABB DI651 32‑Channel High‑Density Digital Input Module

Technical Specifications Model: DI651 System Compatibility: ABB matched automation base terminal unit Input Channel Quantity: 32 digital input channels Input Signal Level: 24 V DC Input Current: 5.5 mA typical at 24 V DC Isolation Mode: Group‑wise galvanic isolation among channel groups Debounce Filter: Channel‑wise configurable input filter time Power Supply: Supplied by matched base terminal unit backplane circuit Mounting Type: DIN‑rail installation via matched base terminal unit Operating Temperature: ‑25 ℃ to +70 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE

Functional Features 32‑channel high‑density 24 V DC digital input realizes large‑quantity field‑switch‑signal acquisition. Group‑wise galvanic‑isolation design restrains electromagnetic interference between different signal groups. Each input channel supports independent configurable debounce filter for suppressing mechanical‑contact bounce pulse. Per‑channel front‑panel LED status indicator intuitively displays real‑time input‑signal on‑off condition. Built‑in module self‑diagnosis function monitors power‑supply fluctuation and internal hardware fault. Supports hot‑swap on matched base terminal unit, field‑side wiring remains connected during module replacement. High‑density channel design reduces cabinet space occupation for multi‑point signal acquisition projects.

Application Scenarios ABB automation system DI651 high‑density digital‑input spare‑part replacement. Large‑scale production‑line, water‑treatment plant, building‑automation system multi‑point discrete‑signal acquisition cabinet. Automation renovation project needing expanding large‑quantity digital input signal collection capacity.

Installation Requirements Fix matched base terminal unit onto standard 35 mm DIN‑rail inside control cabinet. Align DI651 module with base‑unit slot, fully insert module and lock side‑part spring locking buckle. Complete field‑site 24 V DC switch‑signal wiring on base‑unit screw‑type terminals. Set channel‑wise debounce filter parameters via system engineering configuration tool. Complete cabinet protective earthing complying with automation‑system grounding specification. Separate field‑signal cables and high‑power power cables inside control cabinet.
