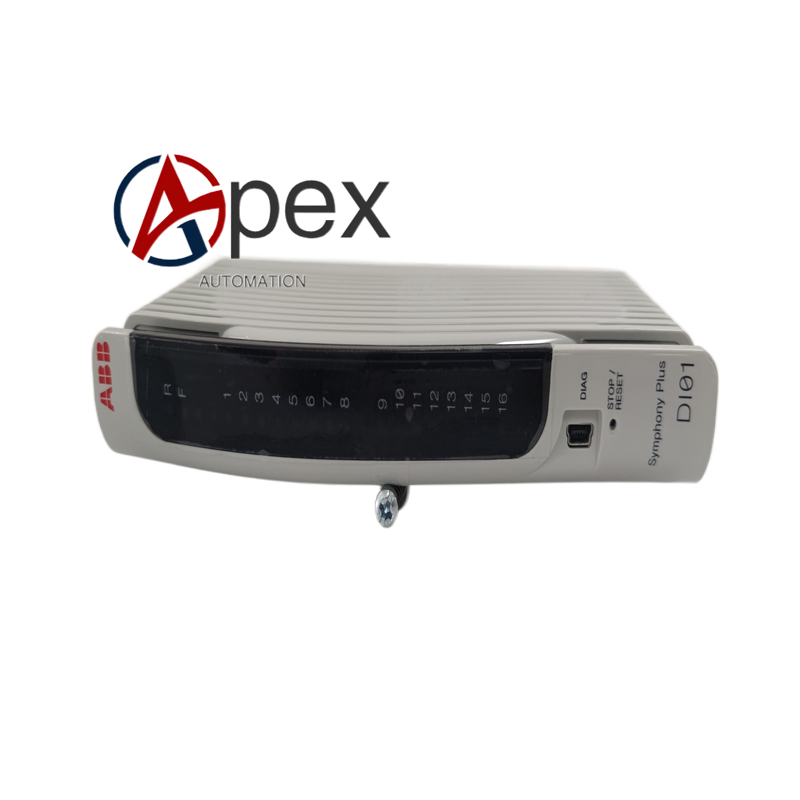

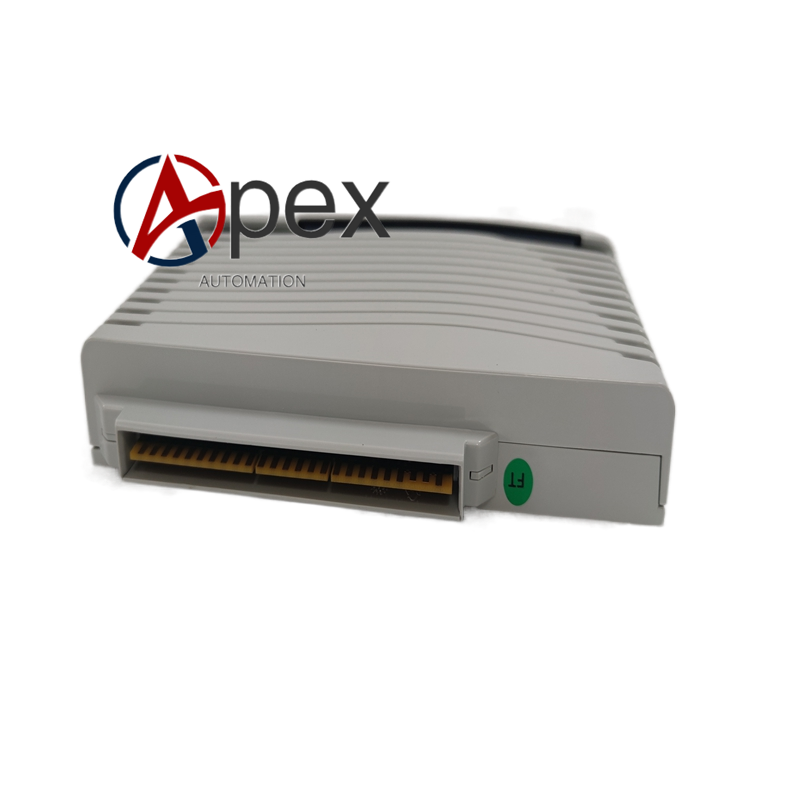

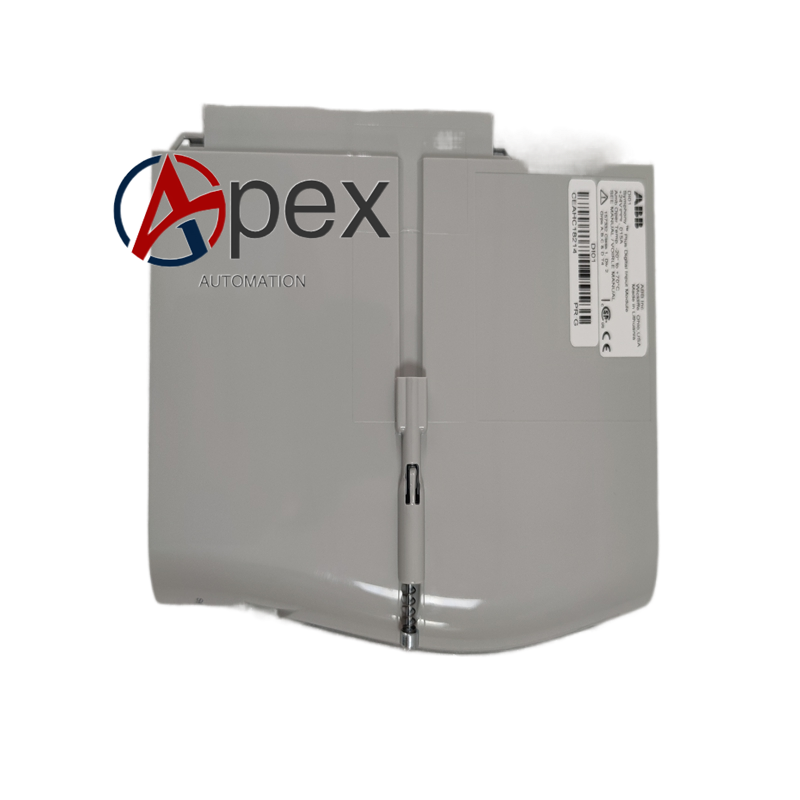

Technical Specifications Model: DI01 System Compatibility: ABB Ability Symphony Plus DCS system Input Channel Quantity: 16 channels Input Signal Level: 24 V DC / 48 V DC selectable Input Type: Sink / source configurable Galvanic Isolation: Channel‑to‑channel isolation, 1500 V AC one‑minute isolation voltage SOE Time‑stamp Resolution: 1 ms SOE Event Buffer: Maximum 50 configurable events Debounce Filter: Configurable 0‑255 ms contact debounce time Power Supply: Supplied by system rack backplane bus Mounting Type: Standard rack plug‑in module Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features 16 independent digital input channels support 24 V DC and 48 V DC field switch‑signal acquisition. Channel‑to‑channel galvanic isolation eliminates cross‑channel ground‑loop interference. High‑precision 1 ms resolution SOE time‑stamping records field‑site event sequence for fault post‑analysis. Configurable channel debounce filter suppresses mechanical‑contact bounce interference pulse. Supports both sink‑type and source‑type field‑input signal wiring mode. Each channel is equipped with front‑panel LED status indicator showing real‑time input signal state. Built‑in module self‑diagnosis function monitors power‑supply and internal hardware fault. Supports hot‑swap under system permitted maintenance condition.
Application Scenarios Symphony Plus DCS system digital input spare‑part replacement with SOE event‑recording requirement. Thermal power plant auxiliary system interlock signal, relay‑contact status signal acquisition cabinet. Process‑industry control projects requiring high‑precision sequence‑of‑event fault‑recording function.
Usage Notes Set signal level parameter consistent with actual field‑site input voltage. Configure debounce filter time according to mechanical‑contact bounce characteristic of field‑site equipment. Do not apply voltage exceeding 48 V DC maximum rated value to input channels. Periodically inspect front‑side wiring‑terminal fastening status and cabinet dust accumulation. Avoid installation position near strong‑electromagnetic‑interference sources. Execute lock‑out‑tag‑out safety procedures when extracting or replacing DI01 module.
