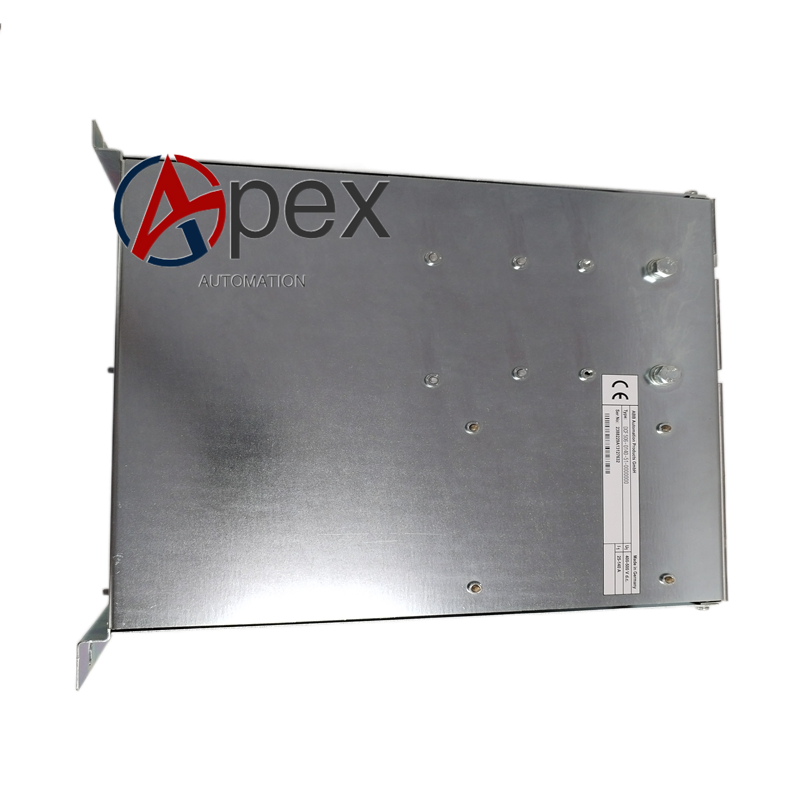

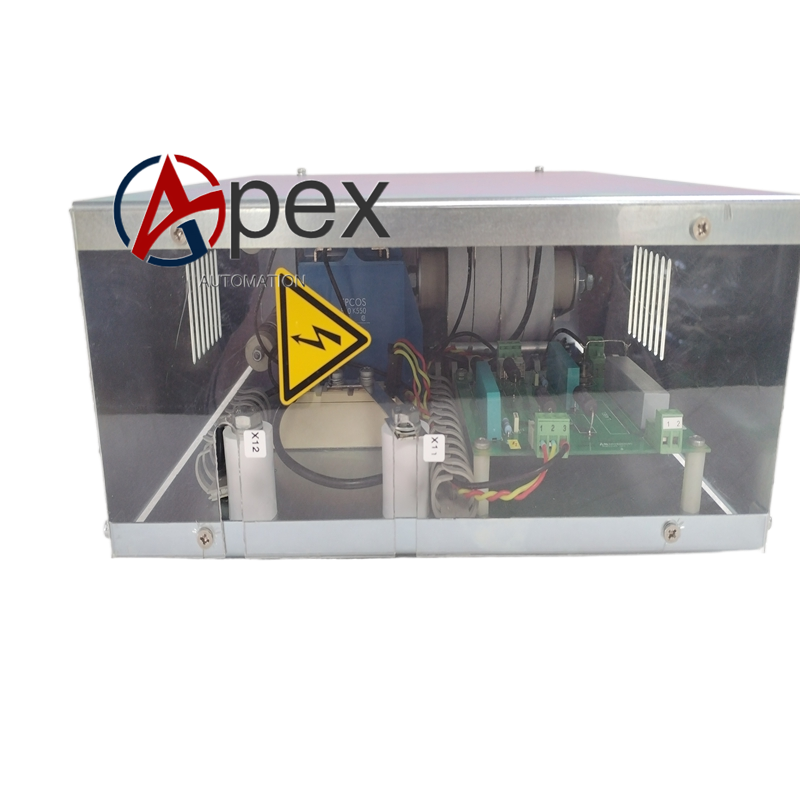

Technical Specifications Model: DCF506‑0140 Drive Compatibility: ABB DCS500 series DC drive system Input Power: Three‑phase AC power supply Nominal DC Excitation Output Current: 140 A Power Circuit Topology: Three‑phase thyristor full‑controlled bridge Control Interface: Signal interface matched with DCS500 drive control board Cooling Mode: Forced air cooling by built‑in fan Mounting Type: Cabinet floor‑mount unit Operating Temperature: ‑20 ℃ to +70 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 Certifications: CE
Functional Features Three‑phase thyristor full‑bridge power circuit outputs large‑current adjustable DC excitation for heavy‑duty DC motor field winding. High‑precision closed‑loop excitation current regulation maintains stable output under three‑phase power‑supply fluctuation. Integrated over‑current, over‑voltage, over‑temperature, field‑winding open‑circuit and fan‑fault protection function. Receives excitation current setpoint command from DCS500 main control board, dynamically adjusts trigger angle to change output current. Fault relay dry‑contact output transmits exciter fault alarm signal to upper‑level automation system. Built‑in cooling fan realizes forced heat dissipation for high‑current power semiconductor components. Supports heavy‑duty continuous operation for metallurgy and heavy‑industry DC motor equipment.
Application Scenarios DCS500 series large‑power DC drive system external field exciter spare‑part replacement. Metallurgical main rolling mill, large paper‑making calender, heavy‑duty winder DC motor excitation power supply unit. Heavy‑industry DC drive system renovation and capacity‑expansion engineering project.
Installation Requirements Fix DCF506‑0140 unit on cabinet floor‑mount base according to official dimension drawing. Connect three‑phase AC input power cable to power input terminals, connect DC output terminals to motor field‑winding heavy‑duty cable. Complete control‑signal wiring between DCF506‑0140 signal terminals and DCS500 drive control board. Implement protective earthing complying with heavy‑duty power equipment grounding specification. Ensure fan air‑inlet and air‑outlet channel are not blocked, reserve sufficient surrounding ventilation space. Physically separate high‑power power cables and low‑voltage control signal cables inside cabinet.
