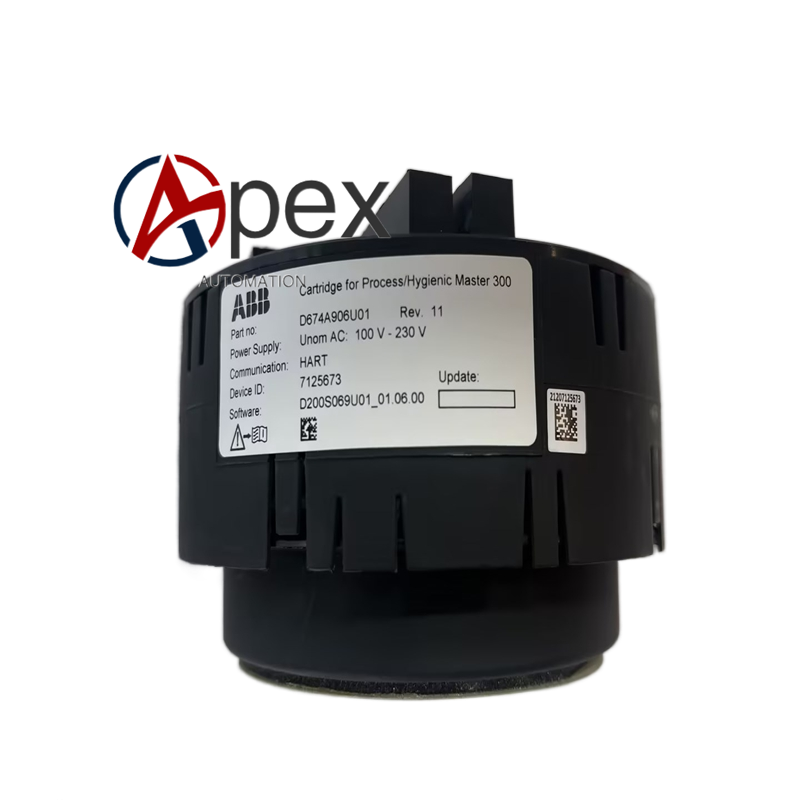

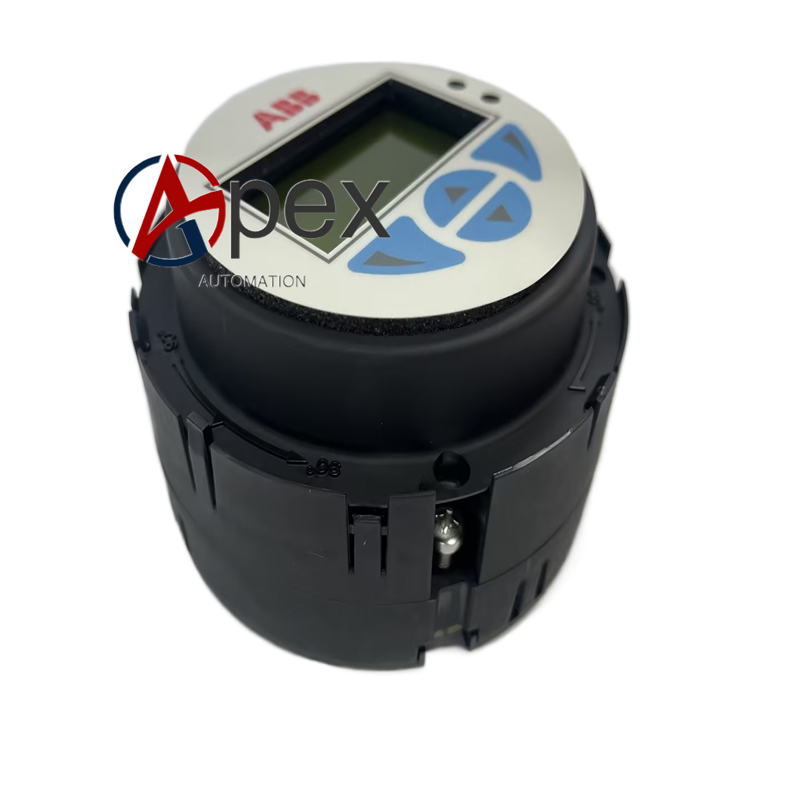

Technical Specifications Model: D674A906U01 Compatible Device: ProcessMaster 300 series electromagnetic flowmeter transmitter Communication Protocol: HART 7.0 Signal Driving: Std FET enhanced driving circuit Power Supply: Supplied by transmitter internal 24 V DC loop‑power circuit Current Consumption: 35 mA maximum Mounting Type: Plug‑in cartridge installed inside transmitter housing Operating Temperature: ‑20 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Protection Class: IP20 inside transmitter enclosure Certifications: CE
Functional Features Implements HART 7.0 bidirectional digital communication on 4‑20 mA measurement loop. Enhanced FET driving circuit improves HART signal transmission performance under long‑distance field cable condition. Supports remote reading of flow measurement value, totalizer and instrument internal diagnostic parameters. Realizes remote range modification, calibration and parameter download for flow transmitter. Transmits instrument fault alarm, hardware self‑check and process abnormal status to host control system. Cartridge plug‑in structure supports on‑site spare‑part replacement without replacing whole transmitter. Signal isolation and surge suppression circuit resist field‑site transient voltage interference.
Application Scenarios ProcessMaster 300 series flowmeter transmitter spare‑part replacement with long‑distance HART loop cable. Chemical, pulp‑paper, water‑treatment industrial flow measurement instrument HART communication upgrade. Field projects requiring high‑reliability remote maintenance and diagnostic function for flow instruments.
Installation Requirements Cut off flowmeter transmitter power before cartridge replacement operation. Open transmitter electronic housing cover, align D674A906U01 cartridge with slot anti‑mis‑insertion key, fully insert into internal socket. Verify reliable contact status of gold‑plated spring pins with mainboard connector. Re‑install transmitter housing cover and tighten housing screws to specified torque value. Restore instrument power supply, complete transmitter power‑on self‑diagnosis, verify HART communication connection via HART configuration tool.
