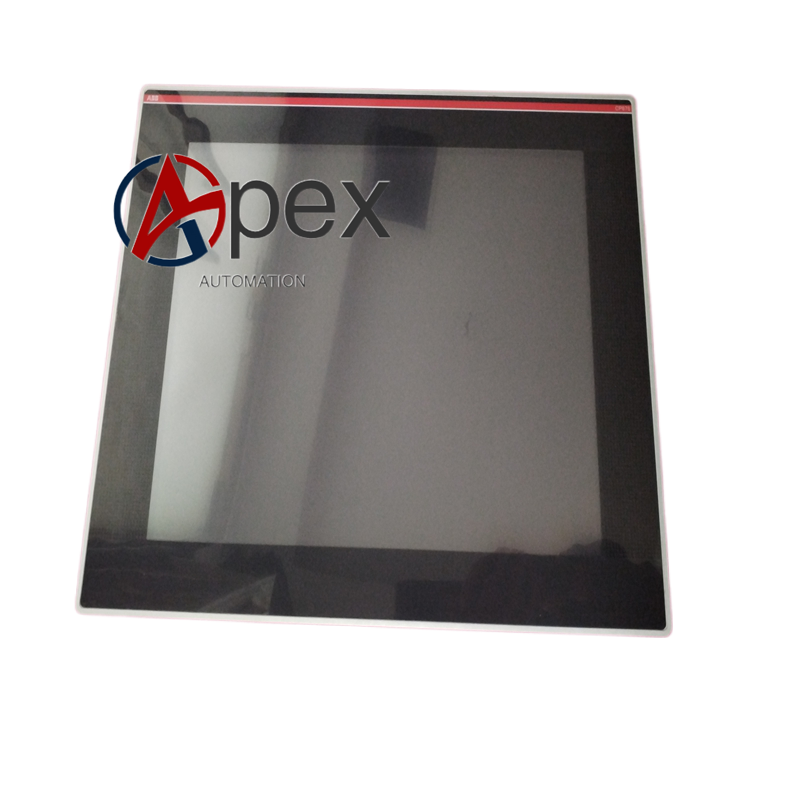

Technical Specifications Model: CP676 Display Size: 15‑inch TFT color display Screen Resolution: 1024 × 768 pixels Color Depth: 64 K colors Touch Technology: 4‑wire resistive touch screen Backlight Type: LED backlight Backlight Service Life: 40000 hours Memory: Flash memory 256 MB, RAM 128 MB Communication Interfaces: 2 × Ethernet RJ45, RS232‑RS422‑RS485 configurable serial port Power Supply: 24 V DC, operating range 18‑30 V DC Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑20 ℃ to +70 ℃ Relative Humidity: 5‑95 %, non‑condensing Front‑panel Protection Class: IP65 Rear‑side Protection Class: IP20 Mounting Type: Cabinet panel cut‑out mounting Certifications: CE, cULus
Functional Features Large‑size high‑resolution display supports multi‑window complex process graphic display. Realizes on‑site touch‑operation, parameter setting, equipment start‑stop control function. Complete mass alarm processing, event logging and long‑term historical‑data storage function. Dual‑Ethernet ports support network isolation and network redundancy configuration. Supports multiple industrial communication protocols for connecting ABB DCS, PLC and third‑party control equipment. Project configuration and downloading are completed by Panel Builder 600 engineering software. Supports multi‑level user access authority management, recipe data storage and recall function. Front‑panel LED indicators show power‑on, running, network link and fault‑alarm status. Built‑in real‑time clock provides time stamp for alarm and historical‑data records.
Application Scenarios Large‑scale chemical, metallurgy, paper‑making production‑line on‑site main operation‑monitoring station spare‑part replacement. System 800xA and AC500 supporting complex process‑automation project local HMI terminal. Factory central cabinet door large‑size visualization operation panel.
Installation Requirements Insert CP676 main body into corresponding large‑size cabinet panel cut‑out, fasten four‑side metal panel‑mount fixing clips. Connect 24 V DC power‑supply cable to rear‑side screw‑type power terminal block. Connect Ethernet network cable and serial‑communication signal cable to corresponding rear‑side interfaces. Reserve heat‑dissipation gap no less than 25 mm behind rear‑housing.
