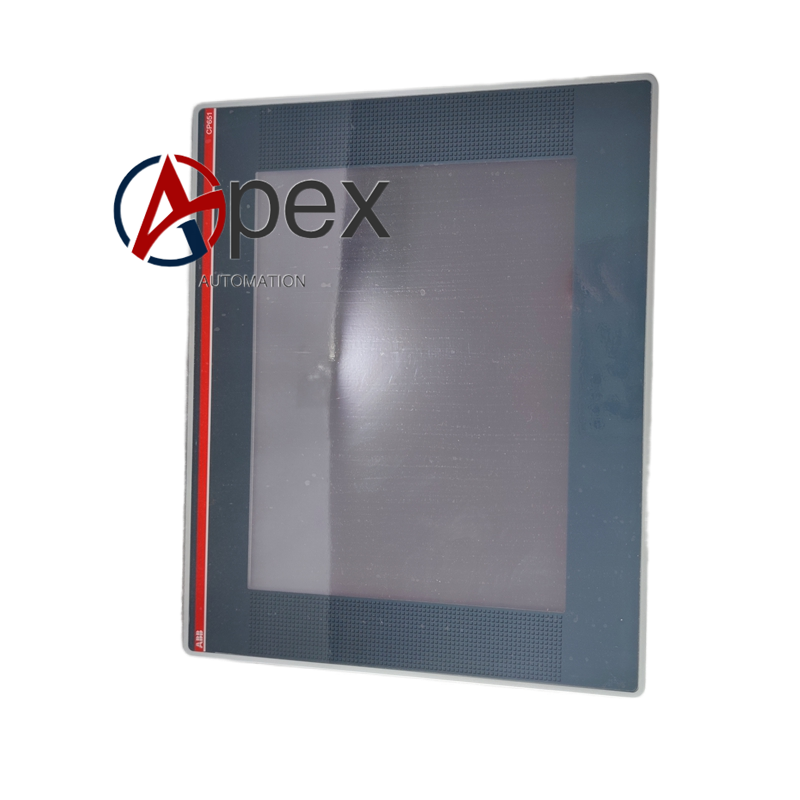

Technical Specifications Model: CP651‑WEB Display Size: 10.4‑inch TFT color display Screen Resolution: 800 × 600 pixels Color Depth: 64 K colors Touch Technology: 4‑wire resistive touch screen Backlight Type: LED backlight Backlight Service Life: 40000 hours Memory: Flash memory 256 MB, RAM 128 MB Communication Interfaces: 2 × Ethernet RJ45, RS232‑RS422‑RS485 configurable serial port Power Supply: 24 V DC, operating range 18‑30 V DC Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑20 ℃ to +70 ℃ Relative Humidity: 5‑95 %, non‑condensing Front‑panel Protection Class: IP65 Rear‑side Protection Class: IP20 Mounting Type: Cabinet panel cut‑out mounting Certifications: CE, cULus
Functional Features Completes local industrial process‑value display, alarm management, historical‑data logging and touch‑operation control. Built‑in web server function, supports remote access through standard web browser without dedicated client software. Dual‑Ethernet ports support network isolation and network redundancy configuration. Supports multiple mainstream industrial communication protocols for connecting ABB AC500 and third‑party PLC equipment. HMI project development is completed by Panel Builder 600 engineering software. Supports recipe storage, real‑time clock time stamp, user authority management function. Front‑panel LED indicators display power‑on, running, network link and fault‑alarm status.
Application Scenarios Automation projects requiring both local HMI operation and remote browser monitoring. Machinery manufacturing, logistics conveying‑line, water‑treatment system HMI spare‑part replacement. AC500‑PLC supporting system remote web‑visualization monitoring terminal.

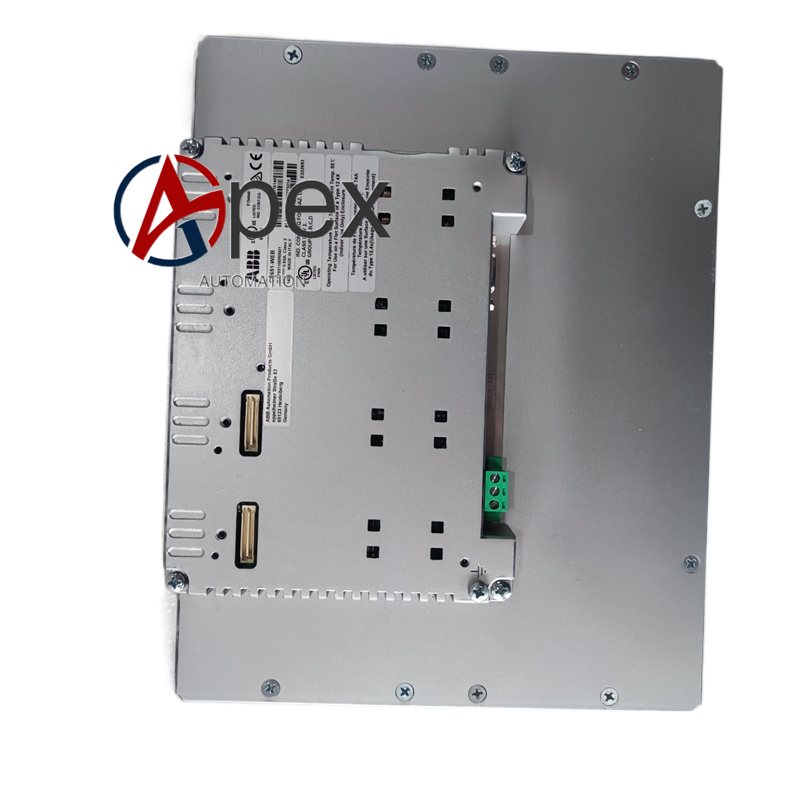

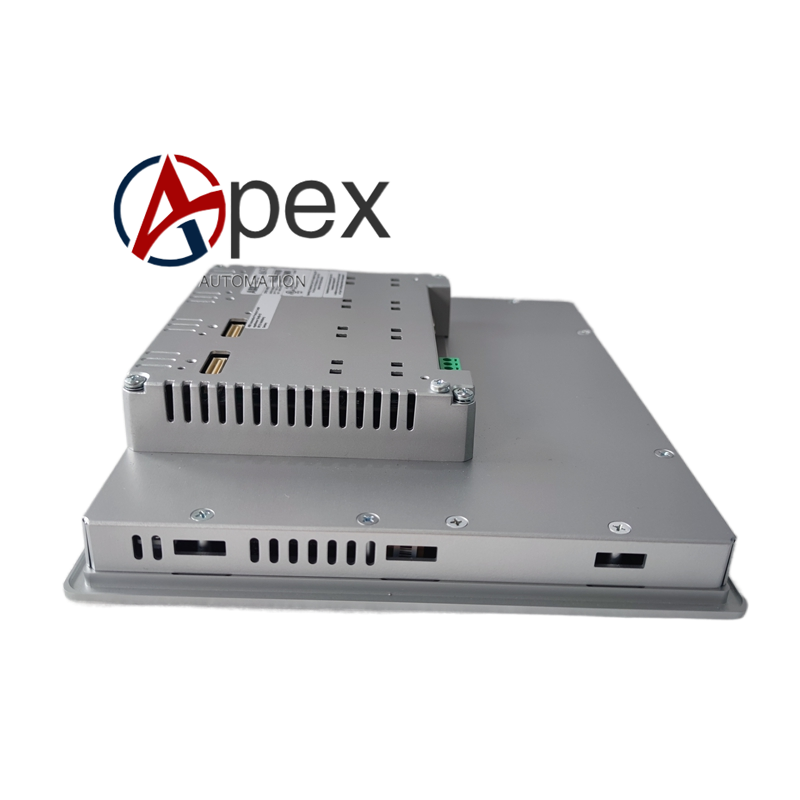

Installation Requirements Insert CP651‑WEB main body into cabinet panel cut‑out, fasten four‑side panel‑mount fixing clips. Connect 24 V DC power‑supply cable to rear‑side screw‑type power terminal block. Connect Ethernet network cable and serial‑communication signal cable to corresponding rear‑side interfaces. Reserve heat‑dissipation gap no less than 20 mm behind rear‑housing. Ambient operating temperature must keep within 0 ℃ ~ +55 ℃ without condensation. Avoid installation near heating source and high‑vibration equipment. Complete cabinet protective earthing complying with product specification requirement.
