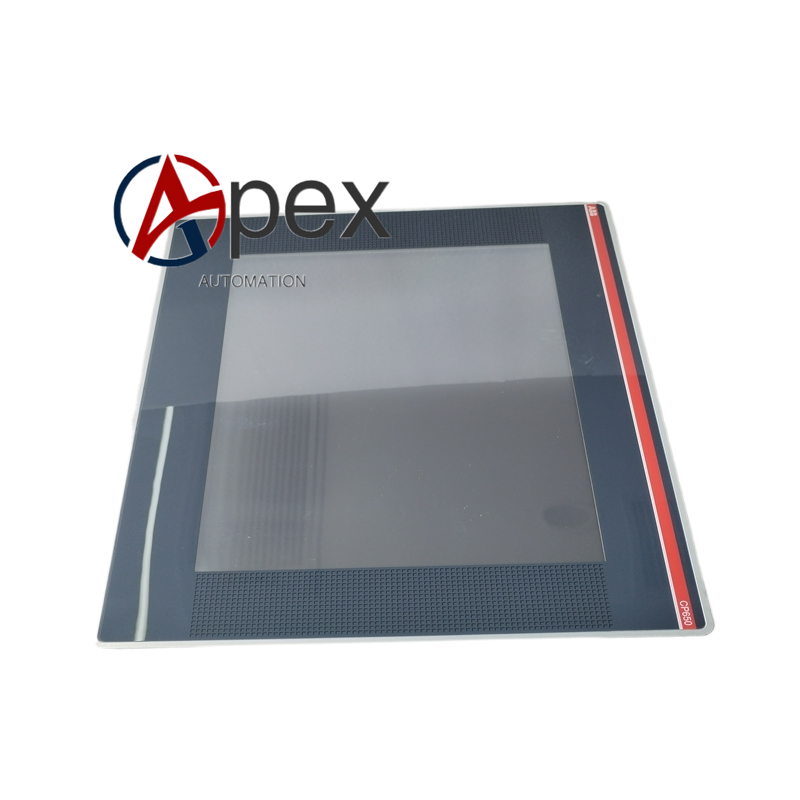

Technical Specifications Model: CP650 Display Size: 10.4‑inch TFT color display Screen Resolution: 800 × 600 pixels Color Depth: 64 K colors Touch Technology: 4‑wire resistive touch screen Backlight Type: LED backlight Backlight Service Life: 40000 hours Memory: Flash memory 128 MB, RAM 64 MB Communication Interfaces: 1 × Ethernet RJ45, RS232‑RS422‑RS485 configurable serial port Power Supply: 24 V DC, operating range 18‑30 V DC Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑20 ℃ to +70 ℃ Relative Humidity: 5‑95 %, non‑condensing Front‑panel Protection Class: IP65 Rear‑side Protection Class: IP20 Mounting Type: Cabinet panel cut‑out mounting Certifications: CE, cULus
Functional Features Real‑time display of process variable, set‑value and equipment operating status of automation system. Supports manual operation, parameter modification, equipment start‑stop control through touch screen. Complete alarm recording, event logging and historical‑data storage function. Supports multiple communication protocols for connecting ABB PLC and third‑party controller devices. Project development is completed by Panel Builder 600 engineering software. Front‑panel hardware LED indicators show power‑on, running and communication status. Supports recipe data storage and recall function for batch‑production application. Built‑in real‑time clock for time stamp of alarm and historical data.
Application Scenarios Mechanical equipment, packaging machinery, water‑treatment plant on‑site HMI operation‑monitoring spare‑part replacement. Factory automation, small‑scale process‑control system local man‑machine interaction station. AC500 PLC supporting project visual monitoring operation terminal.

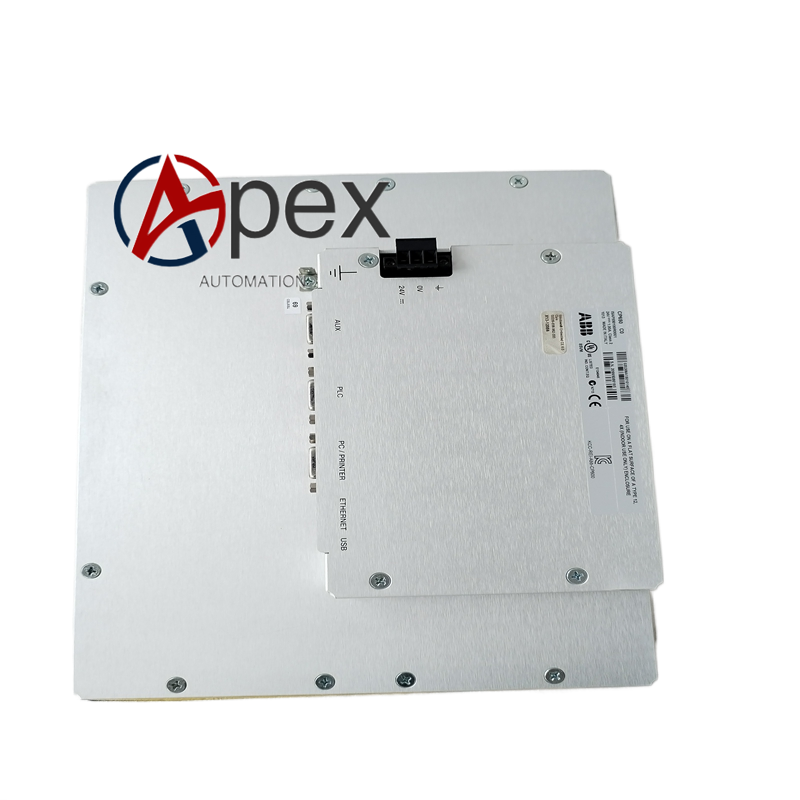

Installation Requirements Insert CP650 main body into standard cabinet panel cut‑out, fasten four‑side panel‑mount fixing clips. Connect 24 V DC power‑supply cable to rear‑side screw‑type power terminal block. Connect Ethernet cable or serial‑communication signal cable to corresponding rear‑side interface. Reserve heat‑dissipation gap of no less than 20 mm behind panel rear‑housing. Ambient operating temperature must keep within 0 ℃ ~ +55 ℃ without condensation. Avoid installation position close to heating source and high‑vibration equipment. Complete cabinet protective earthing according to equipment specification requirement.
