Technical Specifications Back‑plane controller bus interface, dual RJ45 Ethernet ports, RS‑485 serial port, IRIG‑B synchronization input port. Auxiliary power 24 V DC, typical power consumption 5 W. Operating temperature ‑20 ℃ to +70 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Ethernet transmission rate up to 100 Mbps, supports Modbus and mainstream industrial Ethernet protocols. Protection grade IP20. Weight approximately 0.096 kg.
Functional Features Exchanges process data with DCS controller via back‑plane bus. Implements protocol conversion between Ethernet and serial communication channels. Receives IRIG‑B timing signal and distributes unified system time for each controller station. Uploads process value, equipment status and fault alarm data to upper host system. Receives remote configuration and control commands from external equipment. Front‑panel LED displays communication link and module fault status. Built‑in hardware self‑diagnosis detects port abnormality and internal circuit faults.
Application Scenarios Communication spare part for ABB 800xA DCS system. Applied in power plant, petrochemical and chemical plant automation cabinets requiring multi‑protocol interconnection and high‑precision time synchronization.
Performance Parameters Stable real‑time bidirectional data transmission. High‑accuracy IRIG‑B clock synchronization performance. Reliable multi‑protocol parsing and conversion capability.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Protocol processing chip, signal isolation and timing processing assemblies. Conformal protective coating.

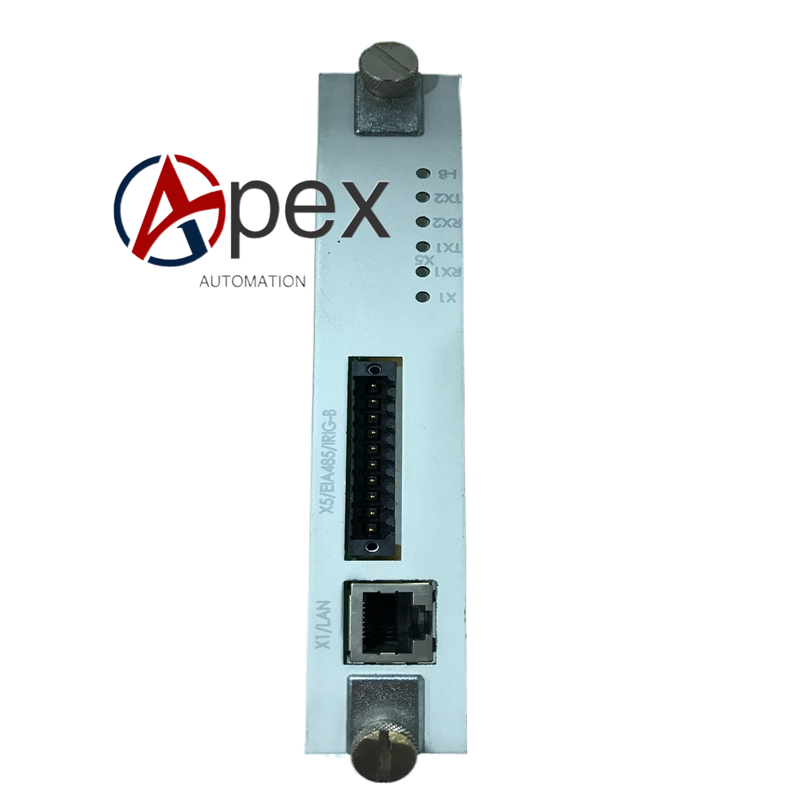

Structural Characteristics Standard rack plug‑in module. Front panel equipped with Ethernet ports, serial port, IRIG‑B port and status LED indicators. Rear side fitted with back‑plane bus connector.
Working Principle Module completes hardware initialization after power‑on. It reads process data from controller through back‑plane bus, encapsulates data according to target communication protocol and sends to external devices. Incoming remote commands are parsed and delivered to controller for execution.
Installation Requirements Insert COM0011 into corresponding controller rack slot and lock fixing latch. Connect Ethernet cable, RS‑485 cable and IRIG‑B timing signal cable.
