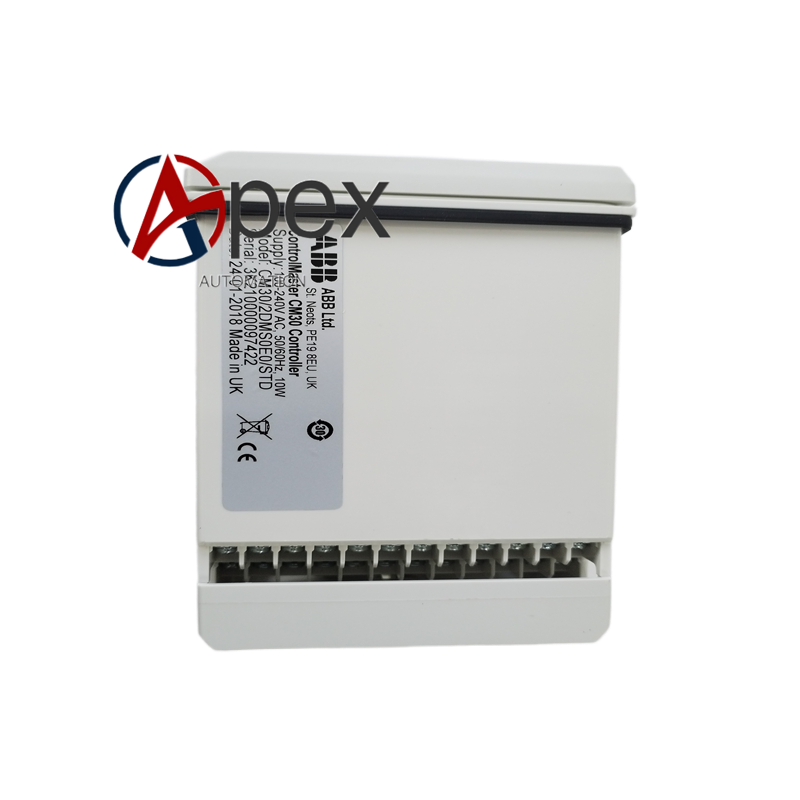

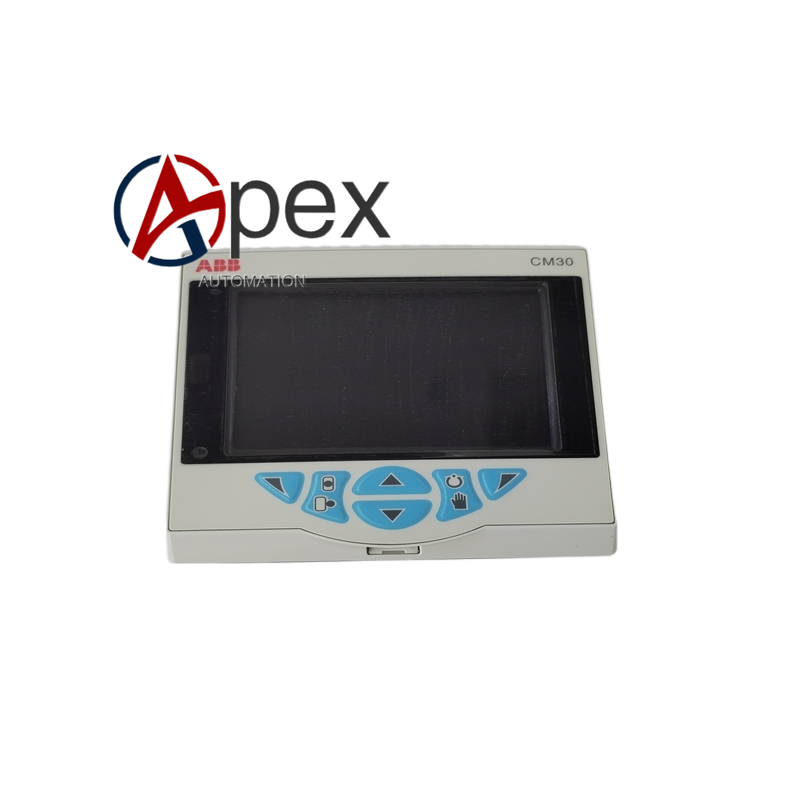

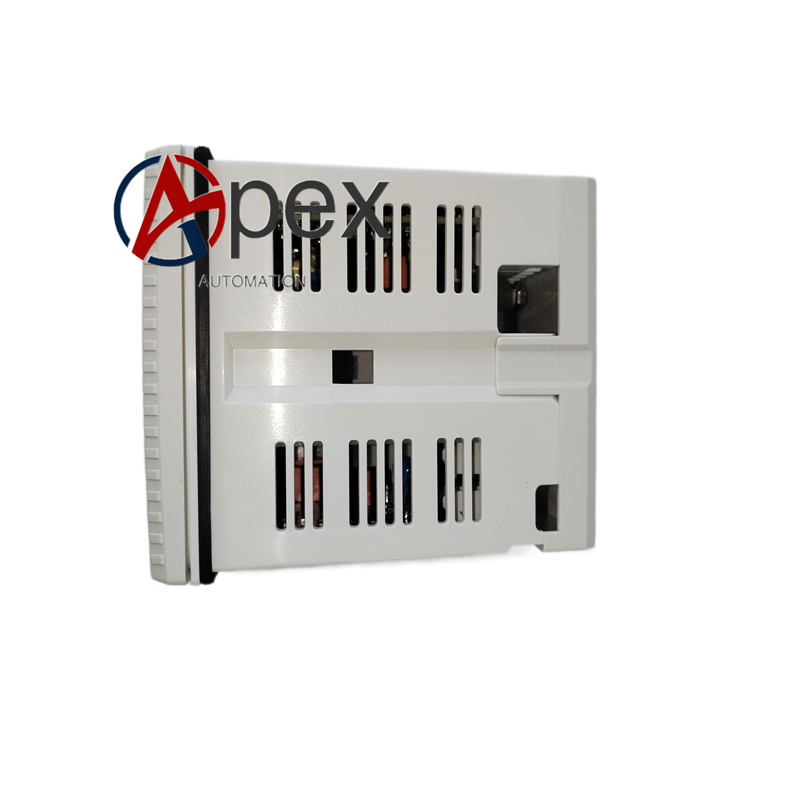

ABB CM302DMS0E0STD ControlMaster Universal Process Controller

Technical Specifications Model: CM302DMS0E0STD Mounting Form: 1/4‑DIN panel cut‑out mounting Input Signal: Thermocouple, RTD Pt100, 0‑10 V DC, 4‑20 mA DC universal analog input Control Output: Relay contact output, analog 4‑20 mA output configurable Communication Interface: RS485 Modbus‑RTU interface Power Supply: 100‑240 V AC universal alternating‑current power supply Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑20 ℃ to +70 ℃ Relative Humidity: 5‑95 %, non‑condensing Front‑panel Protection Class: IP65 Rear‑side Terminal Area Protection Class: IP20 Certifications: CE, UL

Functional Features Multi‑type universal sensor input, supports thermocouple, RTD and standard process signal. Built‑in multi‑group independent PID control loops with auto‑tuning function. Configurable output modes: relay switch output or analog regulating output. Front‑panel digital display and key operation for parameter setting and process‑value observation. RS485 Modbus‑RTU communication realizes remote parameter reading‑writing and process‑value uploading. Built‑in digital filter suppresses input‑signal field‑site interference noise. Supports flow totalizer function for pulse‑type flow‑meter signal input. Multiple alarm logic configurations for process‑value high‑limit, low‑limit and deviation alarm.

Application Scenarios Industrial furnace, heat‑exchanger temperature closed‑loop control. Water‑treatment, chemical small‑scale production process pressure, liquid‑level and flow local control. On‑site panel‑mount process‑control instrument spare‑part replacement.

Usage Notes Complete input‑signal‑type, range‑value, PID parameter and alarm‑threshold configuration via front‑panel keys. For Modbus‑RTU communication application, set station address, baud‑rate and parity‑bit parameters consistently with upper‑level host equipment. Do not apply input signal exceeding rated‑input range limit. Periodically inspect rear‑side wiring‑terminal fastening status. Do not clean front‑panel with corrosive solvent; adopt soft dry cloth for surface cleaning.
