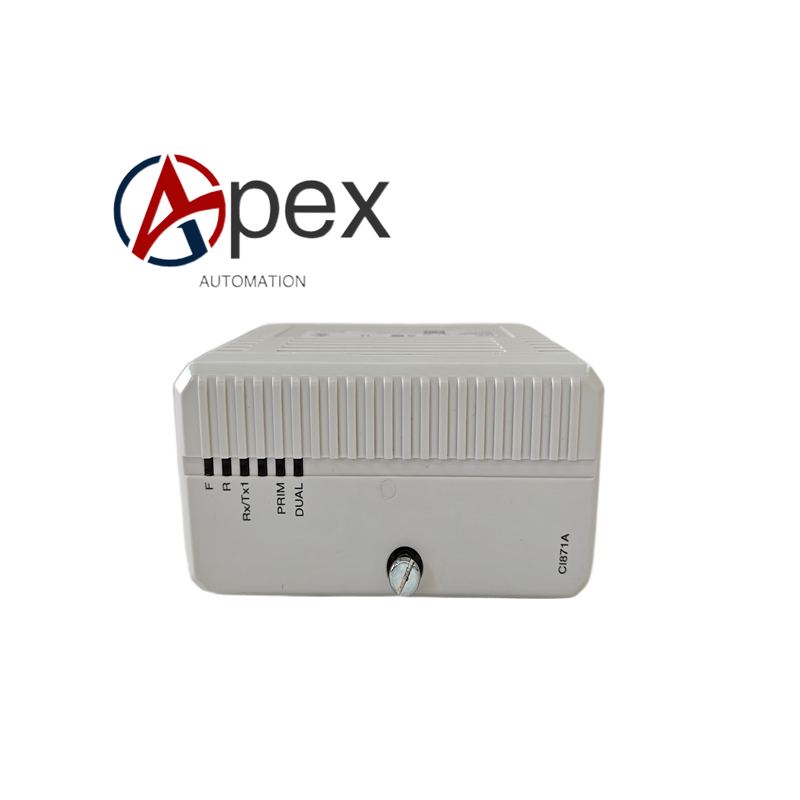

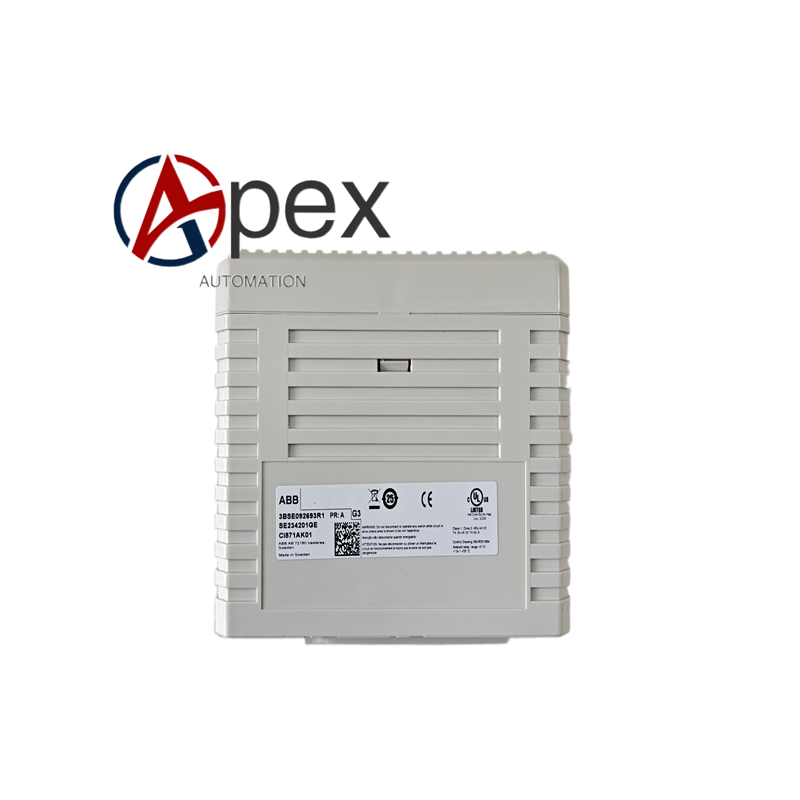

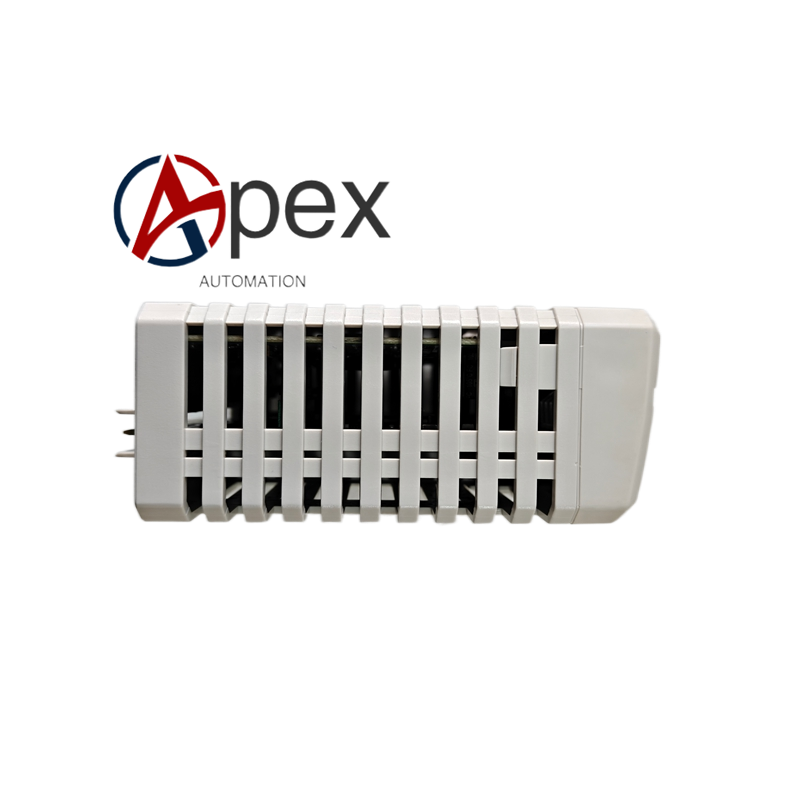

ABB CI871AK01 3BSE092693R1 PROFINET IO Communication Interface Module

Technical Specifications Part Number: 3BSE092693R1 Model: CI871AK01 Communication Protocol: PROFINET IO‑RT, PROFINET IO‑IRT Interface: 2 × RJ45 10/100 Base‑TX Ethernet ports, integrated internal network switch Power Supply: Supplied by rack CEX‑Bus backplane Operating Temperature: ‑20 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Mounting Type: AC800M rack plug‑in module, matched with TP871 baseplate Protection Class: IP20 Certifications: CE, PROFINET certified

Functional Features Works as PROFINET IO master station to manage all slave‑station devices on PROFINET IO network. Two‑port integrated Ethernet switch supports daisy‑chain network topology for field‑device connection. Supports PROFINET IO‑RT real‑time communication and IRT isochronous real‑time communication. Realizes cyclic process‑data exchange and acyclic parameter‑access service for slave‑station equipment. Complete comprehensive online diagnosis for slave‑station offline, channel fault and network communication error events. Front‑panel LED indicators display module power‑on, running, network‑link and fault‑alarm status. Supports module hot‑swap; network wiring stays on TP871 baseplate during module replacement. Supports MRP media‑redundancy protocol to improve industrial‑Ethernet network reliability.

Application Scenarios AC800M control‑system PROFINET IO master‑station interface spare‑part replacement. Automobile manufacturing, logistics conveying‑line, machinery‑manufacturing PROFINET IO industrial‑Ethernet control projects.

Usage Notes Complete PROFINET IO device list and real‑time‑parameter configuration through Control Builder M engineering software. Adopt shielded industrial‑Ethernet cable for PROFINET IO network wiring. Follow PROFINET IO specification for network topology design and node‑quantity control. Periodically inspect Ethernet connector fastening status and clear cabinet dust accumulation. Avoid installation positions adjacent to frequency‑converter strong‑electromagnetic‑interference sources. Execute lock‑out‑tag‑out safety procedures for module disassembly‑and‑replacement work.
