Technical Specifications Back‑plane controller bus interface, PROFINET IO Ethernet port. Auxiliary power 24 V DC, typical power consumption 5.1 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Supports real‑time PROFINET IO protocol.
Functional Features Works as PROFINET IO controller to connect multiple IO‑device field units. Exchanges process data with 800xA controller via back‑plane bus. Receives field measurement values, equipment status and fault alarm information. Outputs control commands and configuration parameters to PROFINET field devices. Front‑panel LED displays PROFINET link and module fault status. Built‑in hardware self‑diagnosis detects network link failure and internal hardware faults.
Application Scenarios PROFINET IO communication spare part for ABB 800xA DCS system. Applied in modern process industry automation projects adopting PROFINET fieldbus standard.
Performance Parameters High‑speed real‑time Ethernet data transmission. Supports multi‑node PROFINET IO device access. Accurate real‑time data mapping performance.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. PROFINET protocol processing and Ethernet signal isolation assemblies. Back‑plane plug‑in connector and RJ45 PROFINET port.

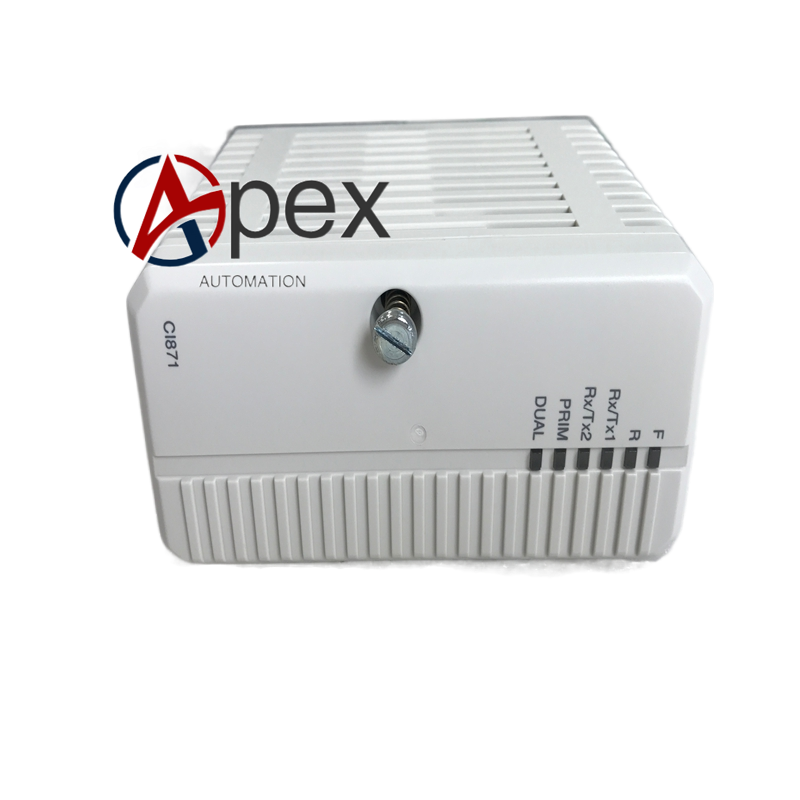

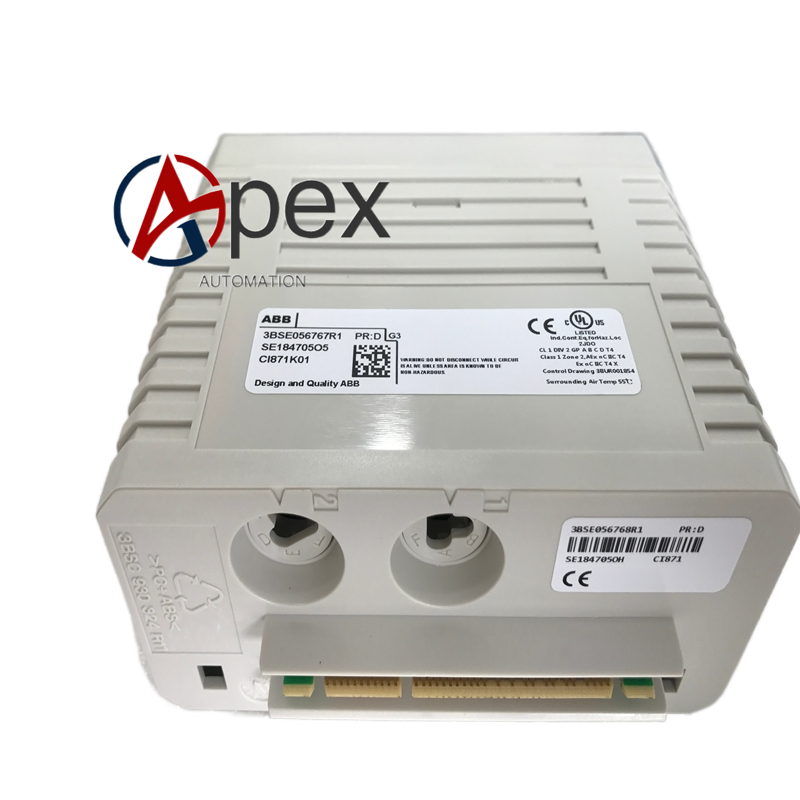

Structural Characteristics Standard controller rack plug‑in module. Front side equipped with PROFINET RJ45 port and status LED indicators. Rear side fitted with back‑plane bus connector. Weight approximately 0.48 kilogram.
Working Principle After power‑on, module loads PROFINET device configuration and completes network initialization. It executes real‑time cyclic data exchange with all connected PROFINET IO‑devices. Field process data is uploaded to controller through back‑plane bus. Control commands from controller are forwarded to target field devices.
Installation Requirements Insert CI871 into designated rack slot and lock fixing latch. Restore power supply, download hardware configuration and verify real‑time data interaction with field devices.
Usage Notes Use industrial‑grade shielded Ethernet cables. Configure IP address and device name consistent with project design. Verify communication status of all PROFINET field devices after installation.
