Technical Specifications Back‑plane controller bus interface, PROFIBUS‑DP physical communication port. Auxiliary power 24 V DC, typical power consumption 4.8 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Supports high‑speed PROFIBUS‑DP cyclic communication.
Functional Features Operates as PROFIBUS‑DP master station to communicate with multi‑group slave devices. Interacts with 800xA controller via back‑plane bus. Receives measurement value and equipment status data from field slave units. Transmits control commands and parameter setting values to field equipment. Front‑panel LED displays bus link and module fault status. Built‑in hardware self‑diagnosis detects bus interruption and internal circuit faults.
Application Scenarios PROFIBUS‑DP communication spare part for ABB 800xA control system. Used for industrial automation projects with large quantity of PROFIBUS‑DP field devices.
Performance Parameters High‑efficiency cyclic data processing capability. Stable multi‑slave bus communication performance. Reliable bus fault diagnosis function.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. PROFIBUS‑DP protocol processing and signal isolation assemblies. Back‑plane plug‑in connector and PROFIBUS‑DP port.

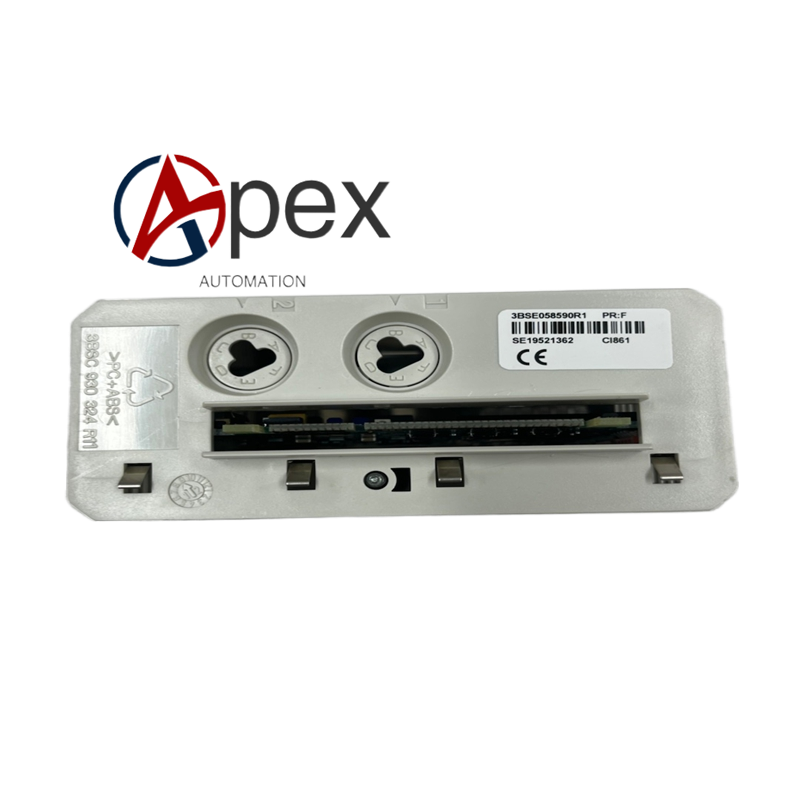

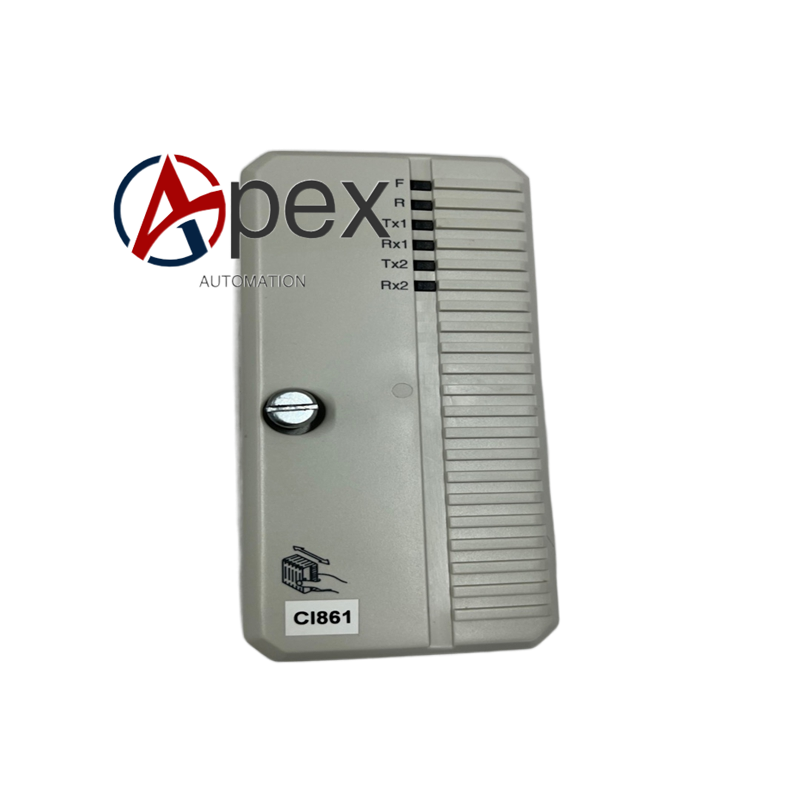

Structural Characteristics Standard controller rack plug‑in module. Front side fitted with PROFIBUS‑DP port and status LED indicators.
Working Principle Module loads slave device configuration and completes bus initialization after power‑on. It cyclically reads input data from each slave and sends output control data. Process data is transmitted to controller through back‑plane bus. Controller commands are parsed and distributed to corresponding slave units.
Installation Requirements Insert CI861 into corresponding rack slot and lock fixing latch. Connect PROFIBUS‑DP shielded bus cable to front‑end port. Restore power supply, import slave configuration and verify cyclic data communication.
Usage Notes Set baud rate and station address consistent with field slave devices. Install bus terminal resistor at bus tail end. Check data status of all PROFIBUS‑DP slave devices after replacement.
