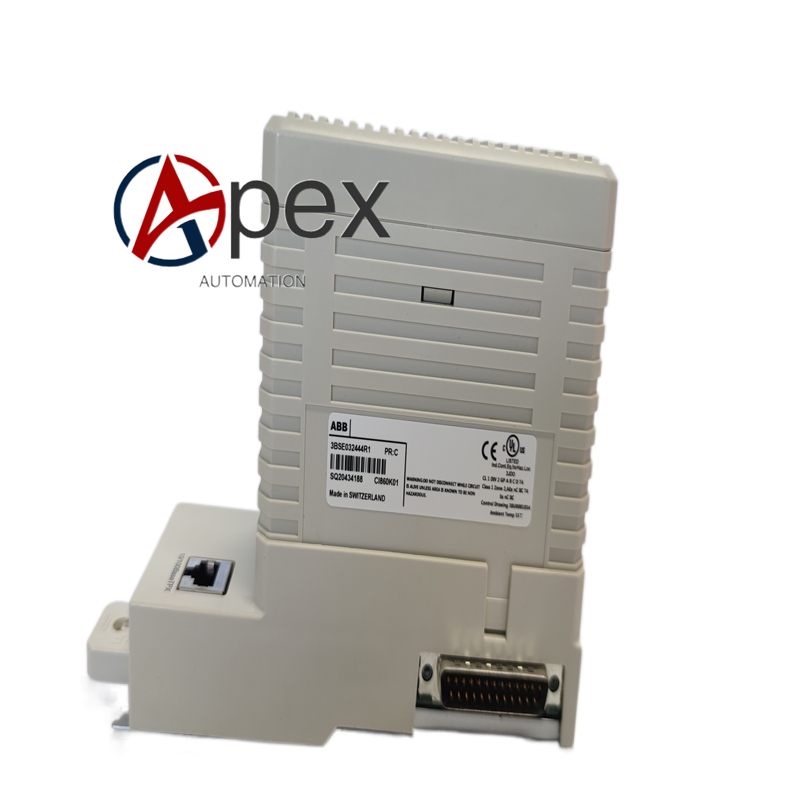

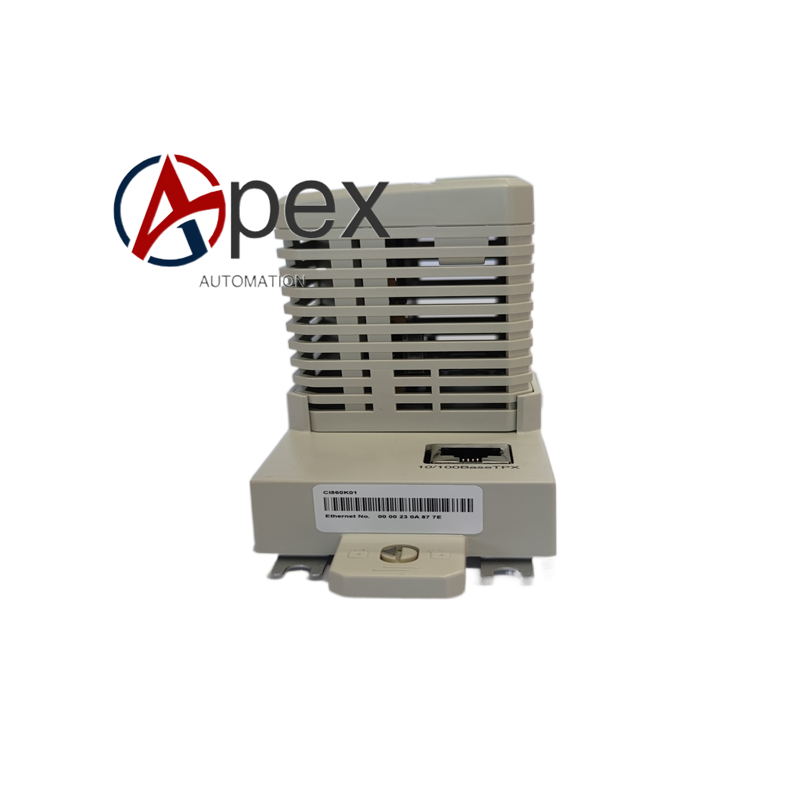

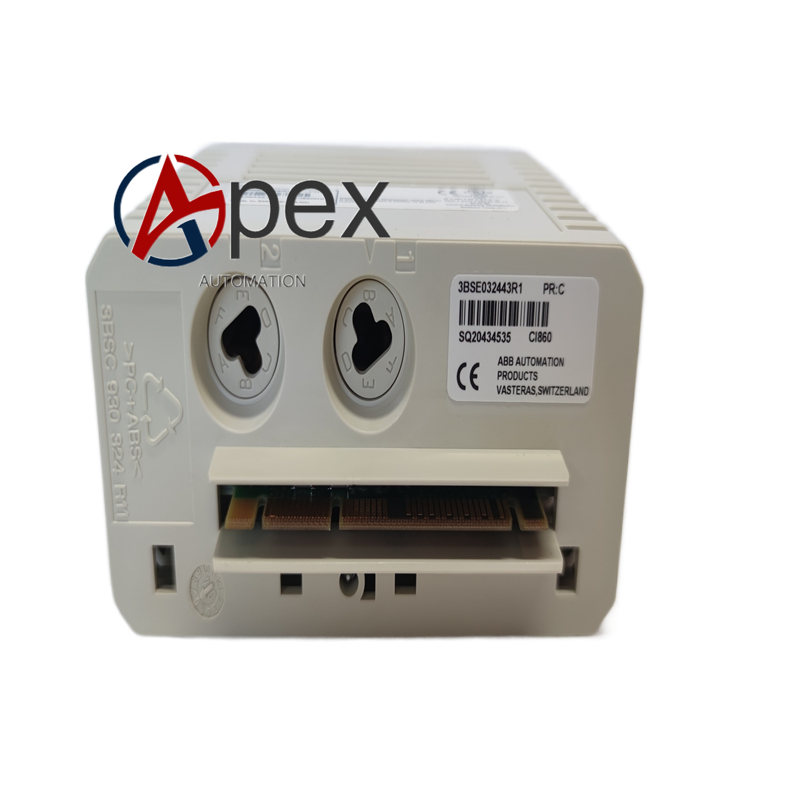

Technical Specifications Part Number: 3BSE032444R1 Model: CI860K01 Communication Protocol: FOUNDATION Fieldbus HSE Interface: 1 × RJ45 10/100 Base‑TX Ethernet port Power Supply: Powered by rack CEX‑Bus backplane, no external power supply Operating Temperature: 5 ℃ to +55 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Mounting Type: AC800M rack plug‑in module, matched with TP860 baseplate Protection Class: IP20 Certifications: CE, UL, cUL
Functional Features Realizes connection between AC800M controller and FOUNDATION Fieldbus HSE subnet. Maps FF HSE process variables and device status to IEC 61131‑3 control application variables. Supports 1+1 module redundancy configuration for high‑availability process control system. One AC800M controller supports maximum 12 pieces of CI860K01 modules. Supports module hot‑swap; field‑bus wiring stays on TP860 baseplate during module replacement. Front‑panel LED indicators display power‑on, running, Ethernet communication and fault‑alarm status. Realizes online diagnosis for HSE subnet equipment offline and communication abnormality events. Compatible with LD800HSE linking device for accessing FF H1 field‑bus instruments via HSE network.
Application Scenarios AC800M / 800xA system FOUNDATION Fieldbus HSE interface spare‑part replacement. Oil‑gas, chemical plant adopting FF HSE field‑bus instrument system integration projects. Process‑control plant modernization upgrading for FOUNDATION Fieldbus system.
Performance Parameters Ethernet communication rate: 10/100 Mbps auto‑negotiation MTBF: 219000 hours Shock and Vibration: Conforms to IEC 60068‑2‑6 rack‑mount communication‑module standard
Material Composition Circuit Substrate: Multilayer industrial PCB with conformal anti‑corrosion protective coating Housing Frame: Reinforced flame‑retardant plastic plug‑in frame Connectors: Gold‑plated CEX‑Bus backplane golden‑finger connector, RJ45 Ethernet port on TP860 baseplate Internal Components: FF‑HSE protocol processing chip, Ethernet physical layer chip, LED status‑indicator group.
nstallation Requirements Fix TP860 baseplate to designated slot of AC800M rack, insert CI860K01 module and lock spring‑clip buckle. Use CAT5E or higher‑grade shielded twisted‑pair Ethernet cable to connect TP860 RJ45 port to HSE subnet network switch.
