Technical Specifications Back‑plane controller bus interface, fieldbus communication port. Auxiliary power 24 V DC, typical power consumption 4.2 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%.
Functional Features Exchanges data with Advant controller via back‑plane bus. Performs protocol conversion for fieldbus communication. Uploads process value, equipment status and fault alarm data. Receives remote configuration and control commands from fieldbus master. Front‑panel LED indicates communication link and module fault status. Built‑in hardware self‑diagnosis detects communication link interruption and internal circuit faults.
Application Scenarios Fieldbus communication spare part for ABB Advant industrial control system. Used for industrial site controller interconnection with third‑party fieldbus equipment.
Performance Parameters Stable real‑time bidirectional data transmission. Accurate protocol conversion processing. Reliable communication fault detection capability.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Protocol processing chip and signal isolation assemblies. Back‑plane plug‑in connector and fieldbus port.

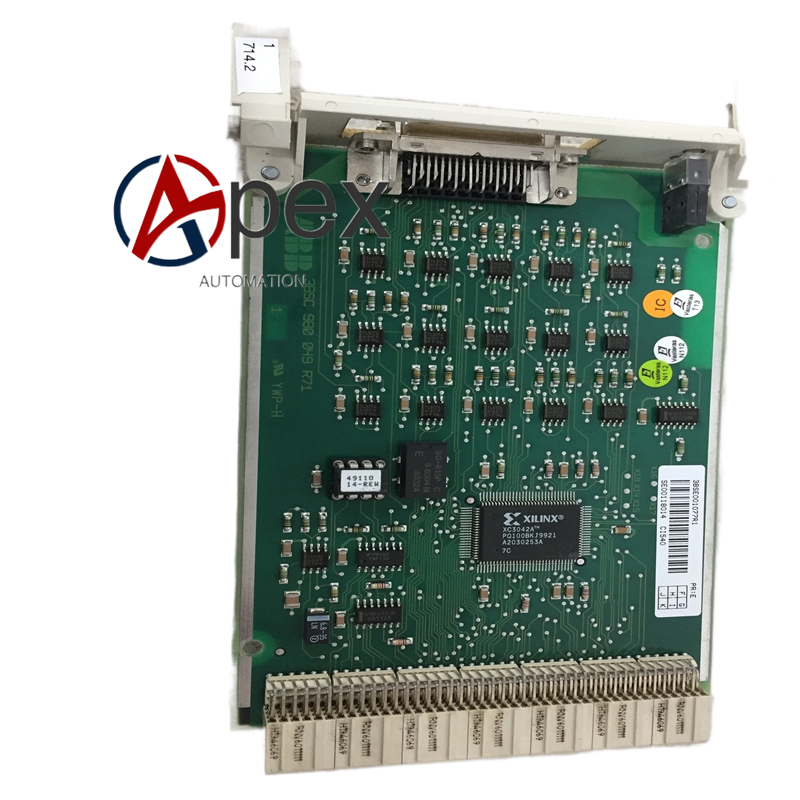

Structural Characteristics Standard controller rack plug‑in module. Front side fitted with fieldbus communication port and status LED indicators. Rear side equipped with back‑plane bus connector. Weight approximately 0.40 kilogram.
Working Principle After power‑on, module completes hardware initialization and fieldbus protocol configuration. It reads process data from controller through back‑plane bus, packages data and sends to fieldbus master station. Diagnosis circuit continuously monitors communication link and back‑plane bus operating state.
Installation Requirements Insert CI540 3BSE001077R1 into corresponding rack slot and lock fixing latch. Connect fieldbus communication cable to front‑end port. Confirm back‑plane connector is fully engaged. Restore power supply, configure communication parameters and verify bidirectional data interaction.
Usage Notes Configure station address and bus parameters consistent with project design. Use qualified industrial fieldbus cables. Hot‑plug under powered state is strictly prohibited. Verify data reading and command response after module replacement.
