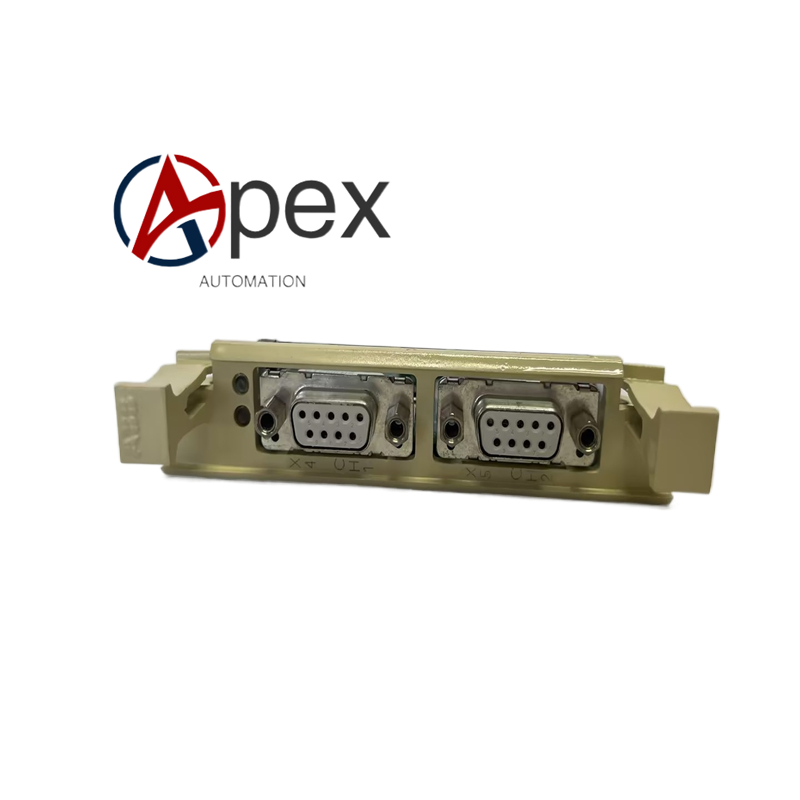

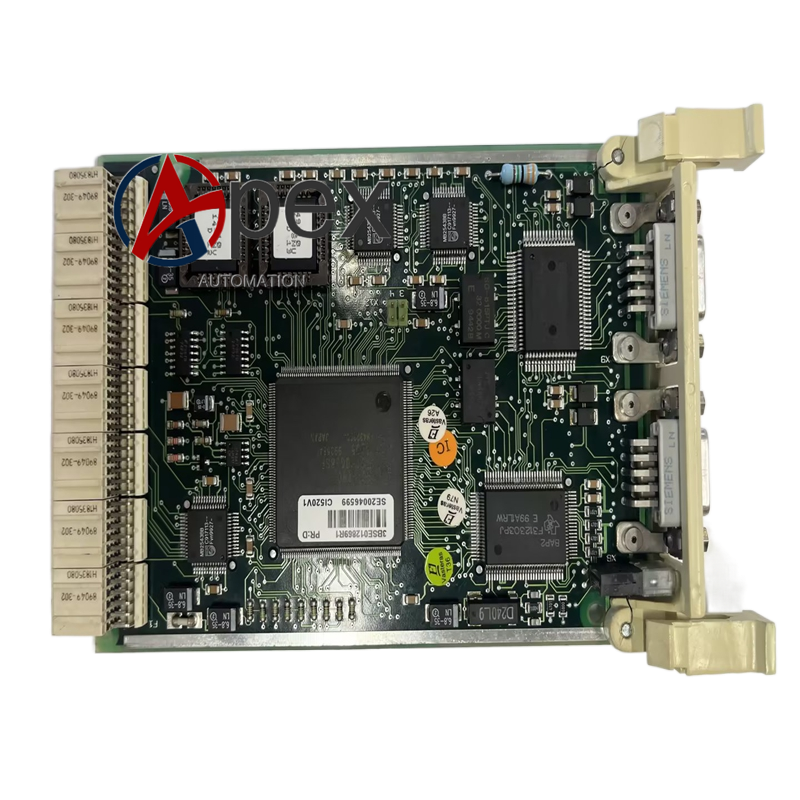

ABB CI520V1 Fieldbus Communication Interface Module

Technical Specifications Model: CI520V1 Bus Interface: S800 ModuleBus field‑bus interface Communication Medium: Twisted‑pair shielded cable Power Supply: 24 V DC from rack backplane Operating Temperature: ‑20 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5‑95 %, non‑condensing Mounting Type: AC800M rack plug‑in module Protection Class: IP20 Certifications: CE

Functional Features Realizes high‑speed data communication between AC800M controller and S800 remote I/O stations. Completes automatic configuration and parameter downloading for S800 series I/O modules. Collects fault‑diagnosis information of each remote‑I/O module and uploads to controller. Supports hot‑swap of S800 remote I/O modules under running system condition. Front‑panel LED indicators display module power‑on, running and bus‑communication‑fault status. Built‑in bus‑signal isolation circuit restrains ground‑loop interference on field‑bus cable. Supports redundant bus‑communication configuration for high‑availability system projects.

Application Scenarios AC800M control system S800 remote I/O expansion cabinet spare‑part‑replacement. Power, chemical, pulp‑and‑paper plant distributed remote‑signal‑collection automation projects.

Usage Notes Complete communication‑configuration work through Control Builder M engineering software. Strictly follow bus‑cable length and terminal‑matching‑resistance requirements specified in manual. Do not apply over‑voltage to field‑bus signal terminals. Periodically clean cabinet dust to guarantee golden‑finger contact reliability. Execute lock‑out‑tag‑out safety procedures for module disassembly‑and‑replacement.
