Technical Specifications Model Code: AX460100010STD Input Signal: Millivolt signal, resistance sensor signal Output Signal: 4‑20 mA DC loop current output Isolation Mode: Full galvanic isolation between input side and output side Power Supply: 12‑35 V DC loop‑power supply Operating Temperature: ‑40 ℃ to +85 ℃ Storage Temperature: ‑45 ℃ to +90 ℃ Relative Humidity: 0‑100 %, non‑condensing Mounting Method: DIN‑rail installation or pipe clamp installation Protection Class: IP67 Certifications: CE, intrinsic‑safety explosion‑proof certification available
Functional Features Supports multiple weak‑signal input modes for pressure, temperature and flow sensors. Built‑in precise linear compensation circuit for sensor characteristic correction. Complete galvanic isolation eliminates ground‑loop interference between field side and control cabinet. Loop‑power design eliminates independent auxiliary power wiring. Hardware protection includes over‑voltage, over‑current and reverse‑power‑supply protection. Zero‑point and span adjustment can be completed through local configuration interface. High‑strength sealed housing adapts to heavy‑dust and high‑humidity field conditions.
Application Scenarios Petrochemical, chemical plant on‑site pressure, differential‑pressure, temperature sensor signal conversion. Waste‑water treatment plant field process measurement signal transmission. Intrinsically‑safe measuring loop application for hazardous explosion‑risk zones.
Performance Parameters Measurement Output Accuracy: ±0.1 % full scale Response Time: ≤200 ms MTBF: 148000 hours Shock and Vibration: Conforms to IEC 60068‑2‑6 field‑equipment standard.

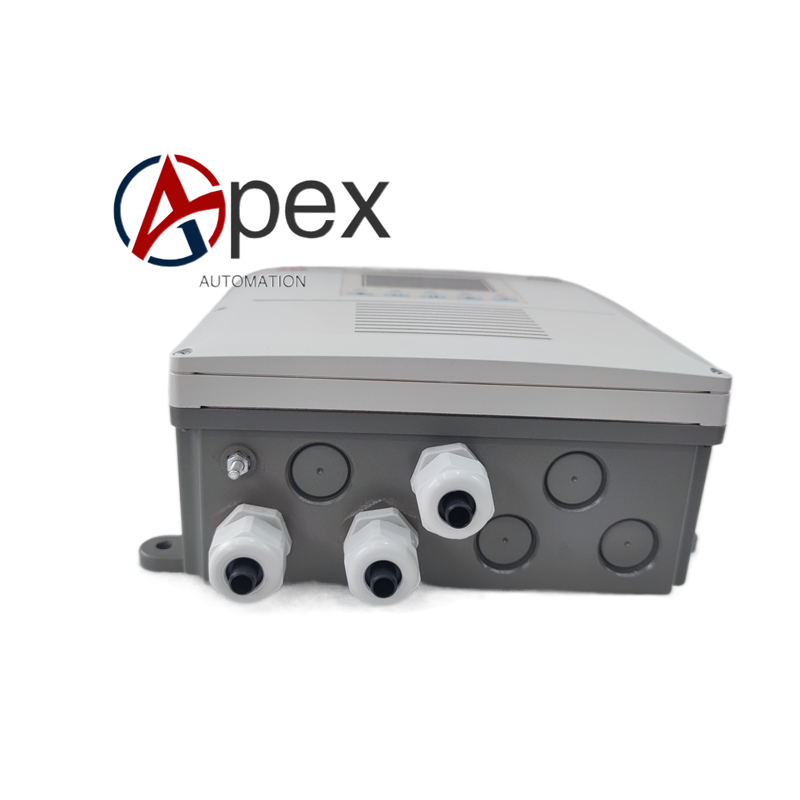

Installation Requirements Install the transmitter via DIN‑rail or pipe clamp according to site layout. Pass sensor cable and loop output cable through cable glands and connect to internal wiring terminals. Tighten cable gland threads to guarantee IP67 sealing performance. Complete protective‑earthing according to field explosion‑protection grounding specifications. Confirm loop power supply voltage stays within 12‑35 V DC range before power‑on. Avoid long‑term direct sunlight irradiation and installation adjacent to high‑heat sources.
