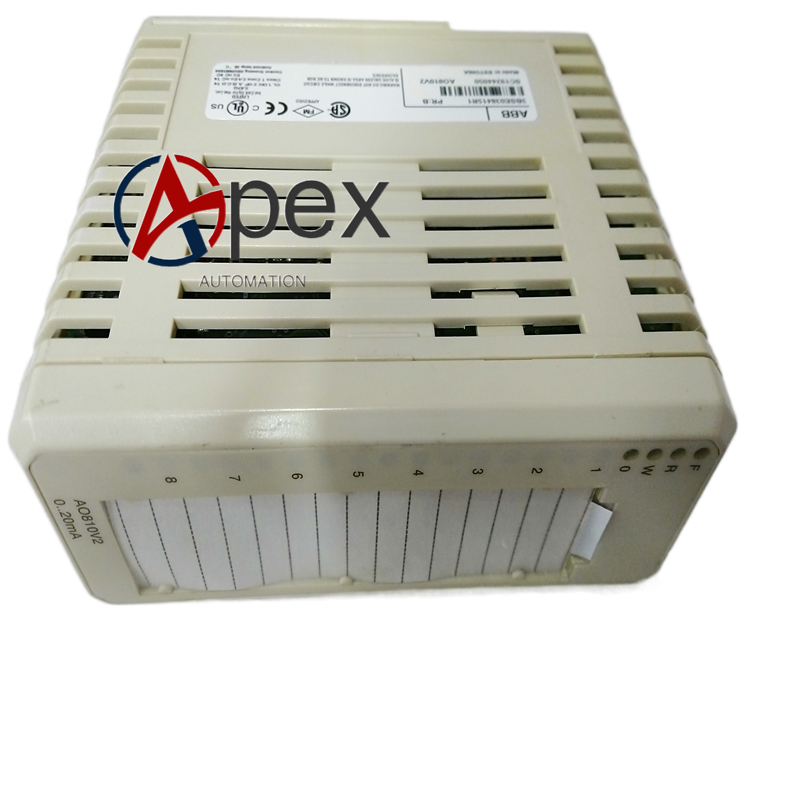

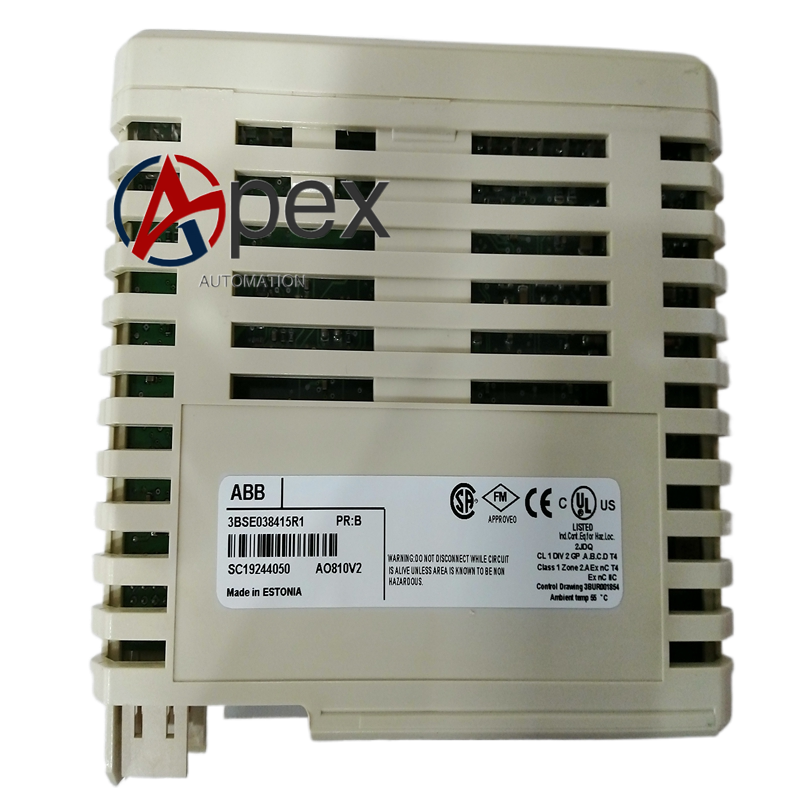

Technical Specifications Part Number: 3BSE038415R1 Operating Supply Voltage: 24 VDC ±10% Number of Output Channels: 8 analog output channels Output Signal Ranges: 0‑20 mA DC, 4‑20 mA DC, 0‑10 V DC D/A Resolution: 16‑bit Maximum Current Load: 750 Ω per channel Maximum Voltage Load: ≥1 kΩ per channel Isolation: Group galvanic isolation Operating Temperature: 0 ℃ to +70 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5%‑95%, non‑condensing Mounting Type: S800 rack plug‑in Hot‑Swap Support: Yes Protection Class: IP20 Certifications: CE
Functional Features Upgraded 16‑bit D/A delivers higher analog output precision. Supports current and voltage multi‑mode analog output for field actuators. Hot‑swap function supports online module replacement without system shutdown. Group‑wise galvanic isolation provides reliable electrical separation between field and control system. Hardware short‑circuit protection for each output channel. Front‑panel LED indicators display module power‑on, running and channel fault status. Matched detachable terminal unit simplifies field wiring and maintenance work. All channel parameters configured via Control Builder M software. Backward mechanical and electrical compatibility with existing S800 rack hardware.
Installation Requirements Insert AO810V2 module into designated slot of S800 standard rack and install supporting terminal unit. Complete cabinet protective earthing strictly following official system grounding specifications. Field actuator wiring adopts shielded twisted‑pair cables. Separate signal cables and high‑power power cables. Verify actuator load parameters match module output specification before power‑on. Reserve cabinet internal ventilation space around module for heat dissipation. Tighten terminal unit screws to manufacturer‑recommended torque values. Maintain ambient operating environment within rated temperature and humidity ranges without condensation. Execute specified safety operation procedures when performing hot‑swap replacement work.
