Technical Specifications Operating Supply Voltage: 24 VDC ±10% Number of Output Channels: 8 independent output channels Output Signal: 4‑20 mA DC A/D / D/A Resolution: 16‑bit HART Support: HART 5.4 Isolation: Group galvanic isolation Operating Temperature: 0 ℃ to +60 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5%‑95%, non‑condensing Mounting Type: Symphony Plus SD‑series rack plug‑in Protection Class: IP20 Certifications: CE

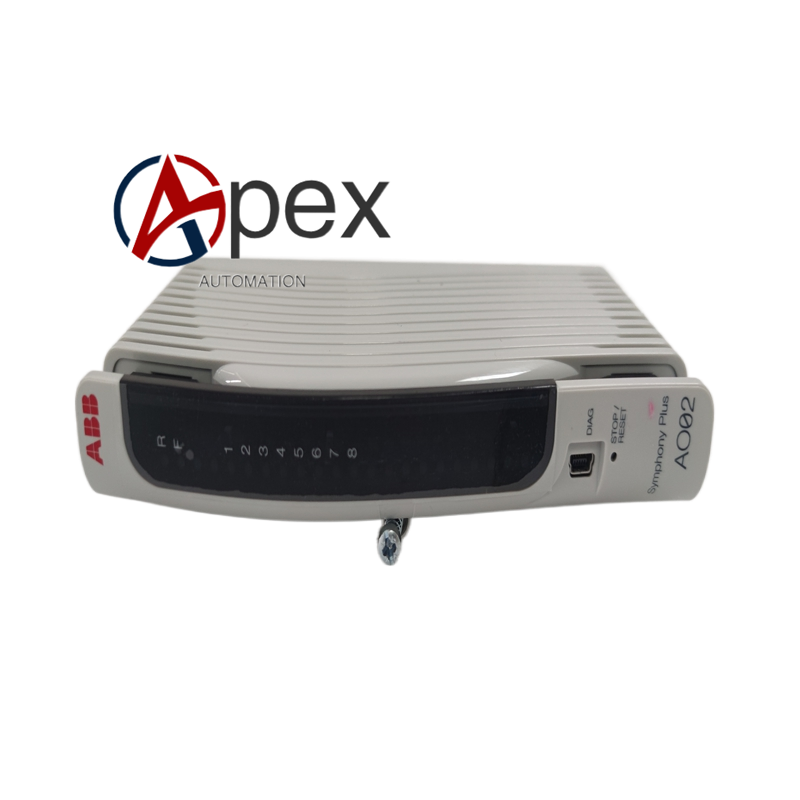

Functional Features Outputs 8‑channel 4‑20 mA analog control current for field actuators and valves. Built‑in HART modem for bidirectional communication with HART smart field devices. Hardware short‑circuit protection for each output channel. Detects output loop fault conditions and uploads diagnostic status to DCS. Front‑panel LED indicators display module power, run status and fault alarms. Software‑oriented channel parameter configuration without hardware jumpers. Full mechanical and electrical compatibility with Symphony Plus SD‑series rack base units.
Working Principle The module receives 24 VDC power supply from rack backplane bus. Digital control commands issued by DCS controller transmit to AO02 module via backplane bus. D/A conversion chip converts digital set‑point values into analog current control signals. HART modem superimposes HART digital communication signals onto current loops. Analog 4‑20 mA output signals drive field actuators and valve positioners. On‑board diagnostic circuits continuously monitor output loop status. When short‑circuit or open‑circuit faults occur, fault status flags are uploaded to upper‑level DCS control system.
Installation Requirements Insert AO02 module into designated slot of Symphony Plus SD‑series standard rack. Complete cabinet protective earthing strictly according to system grounding specifications. Field actuator wiring uses shielded twisted‑pair cables. Separate signal cables and high‑power power cables. Confirm field actuator load impedance matches module output specification before power‑on. Reserve cabinet ventilation space around the module to avoid heat accumulation. Tighten terminal block screws to manufacturer‑recommended torque values. Maintain ambient operating environment within rated temperature and humidity ranges without condensation.
