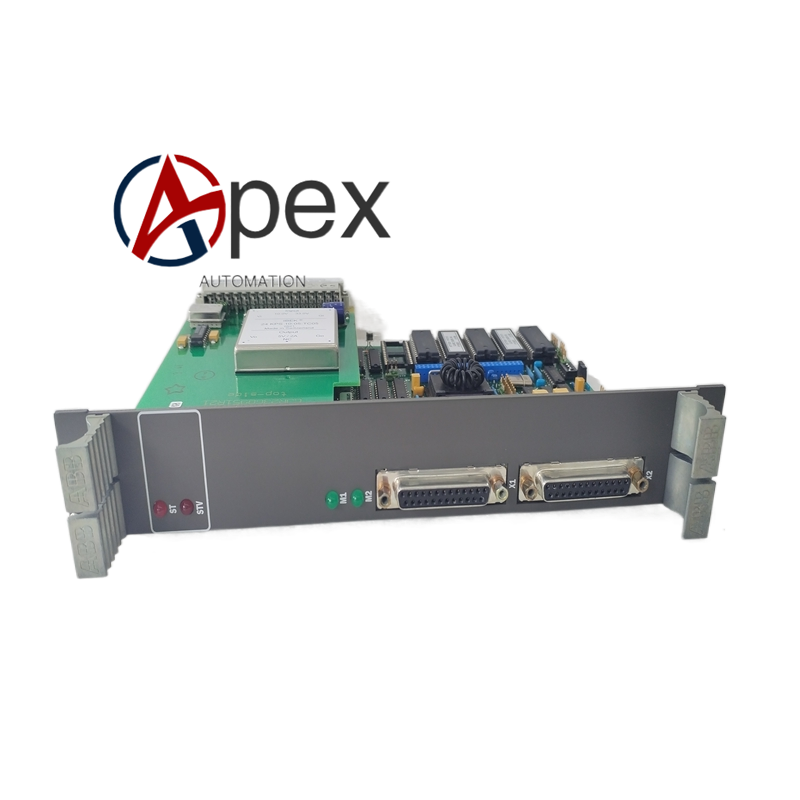

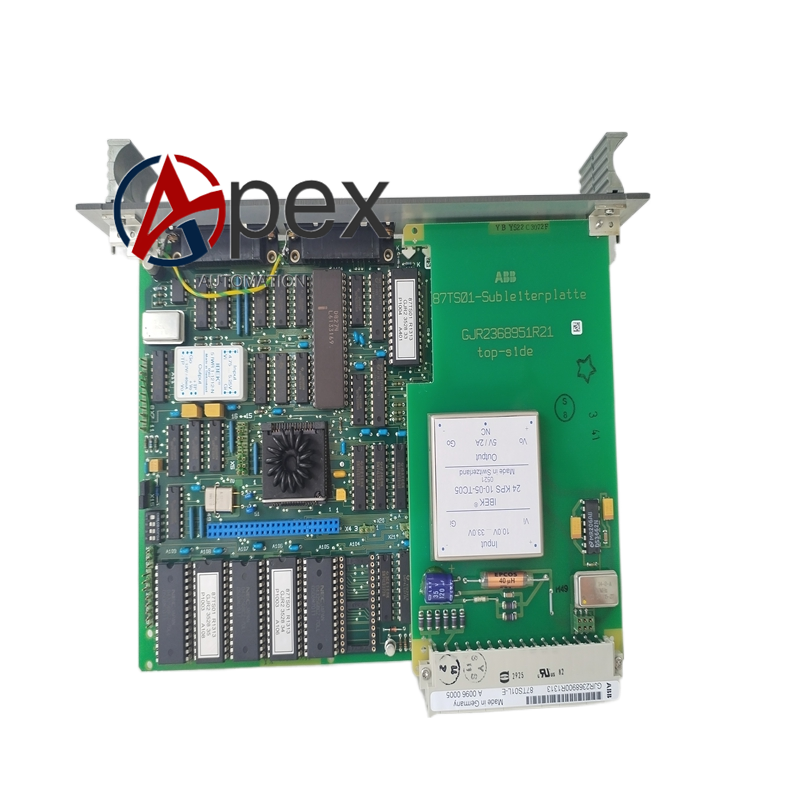

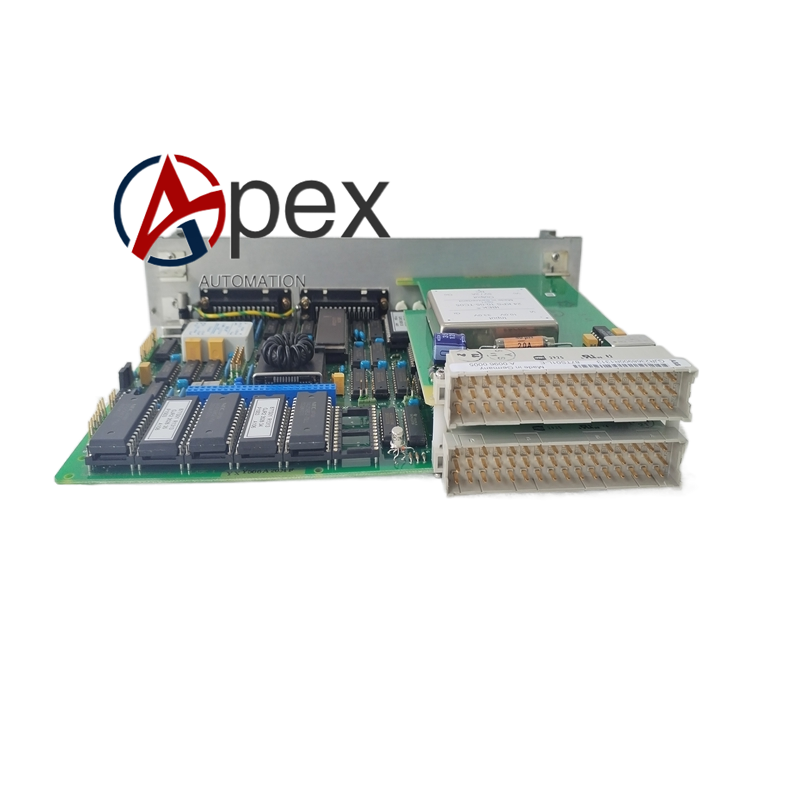

Technical Specifications
Manufacturer: ABB
Model: 87TS01L
System: Procontrol P14 DCS
Serial Interface: RS-232C / RS-422 (configurable)
Baud Rate: 9600 baud (standard)
Data Transfer: Cyclic and event-driven telegram transmission
Telegram Capacity: Receive up to 230 telegrams (addr 0-229); Transmit up to 200 telegrams (addr 0-199)
Protocol: Procontrol P14 proprietary
Isolation: Galvanic isolation between serial port and station bus
Power Supply: 24 V DC (redundant via 89MS01/R0200 or 89MS02/R0100)
Power Consumption: ≤ 5 W
Shared Memory: Dual-port RAM for receive/transmit buffering
Form Factor: Rack-mountable P14 module
Dimensions: 3.8 × 25.4 × 20.3 cm
Weight: 0.7 kg
Indicators: LEDs for power, communication activity, fault diagnostics
Operating Temperature: 0 to +60 °C
Storage Temperature: -25 to +70 °C
Humidity: 5 to 95 % RH non-condensing
Compliance: CE, IEC 61131-2
Functional Features
Dual serial standards (RS-232C and RS-422) support a wide range of external devices. High-capacity telegram handling (430 total) enables extensive system integration. Shared memory architecture ensures fast, reliable data exchange. CRC protection and protocol monitoring guarantee data integrity. Hot-swappable design supports online replacement. Compatible with redundant station bus configurations. Up to four modules can operate in parallel for expanded connectivity.
Application Scenarios
Connecting Procontrol P14 DCS to operator stations, programming tools, and diagnostic PCs. Time synchronization of DCS nodes via serial time source. Integration with third-party computers and peripherals in power, chemical, and process industries.
Installation and Usage Notes
Insert the module into the Procontrol P14 subrack station bus slot. Connect the serial device to the RS-232C or RS-422 port using the appropriate cable. Configure the serial parameters (baud rate, protocol) via the Procontrol engineering tool. Verify the redundant 24 V DC supply is present. Check the status LEDs (power, communication, fault) during commissioning. For parallel operation, install up to four modules observing the station bus addressing scheme.
