Technical Specifications
Manufacturer: ABB

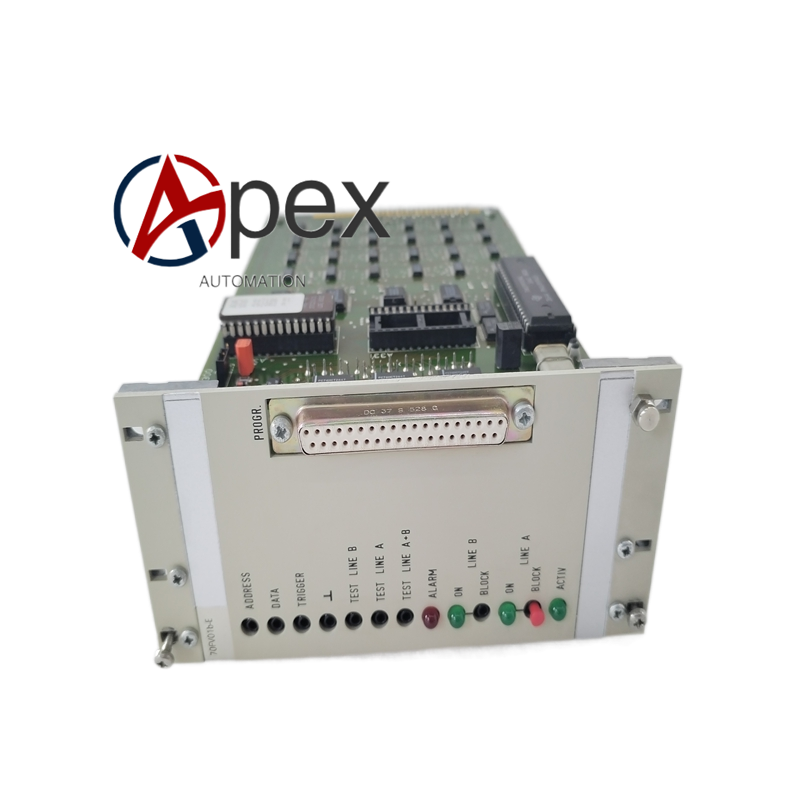

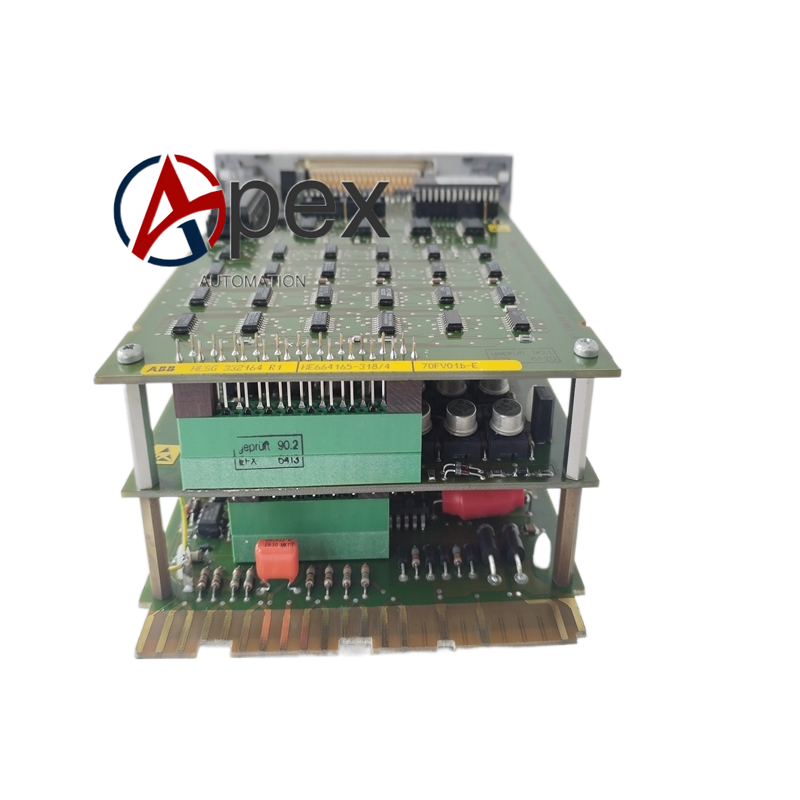

Model: 70FV01V-E
Series: Procontrol P13 / P14
Module Type: 16-Channel Binary Input Module
Input Voltage: 24 V DC (wet/dry configurable)
Interface: ZD station bus
Terminals: Screw terminals
Mounting: Procontrol P bus slot
Dimensions: 160 × 25 × 160 mm (4-unit board)
Weight: 0.5 kg
Power Consumption: 5 W (full load)
Compliance: CE, RoHS, IEC 61131
Performance Parameters Frequency measurement accuracy: ±1 pulse per 24‑hour continuous operation Fault tolerance: Single‑channel fault will not interrupt other channels measurement function Mean Time Between Failures: Exceeds 220000 hours Shock and vibration resistance: Complies with industrial cabinet‑mount equipment vibration standard
Functional Features
Captures 16 isolated channels of on/off state with noise rejection. Configurable wet/dry contact inputs adapt to various field device types. The module integrates into the Procontrol P13/P14 station bus for deterministic data exchange. Screw terminal connections provide secure field wiring.
Application Scenarios
Acquisition of limit switch, pushbutton, and relay contact status in Procontrol P13/P14 DCS. Process automation requiring binary signal monitoring with noise immunity.
Installation and Usage Notes
Insert the module into the Procontrol P bus slot until locked. Wire field devices to the screw terminals observing polarity for wet contact mode. Configure wet/dry mode per channel via the engineering software. Verify station bus communication and channel status LEDs during commissioning.
