ABB 70EA05A‑E High‑Precision Analog Input Module

Technical Specifications Supported Input Signal Type: 4‑20 mA DC, 0‑10 V DC Number of Input Channels: Multi independent input channels Conversion Resolution: 18‑bit Measurement Accuracy: ±0.08% full scale Channel‑to‑Backplane Isolation Voltage: 500 V RMS Operating Power Supply: 24 VDC Operating Temperature: ‑40 ℃ to +85 ℃ Storage Temperature: ‑45 ℃ to +90 ℃ Relative Humidity: 5%‑95%, non‑condensing Mechanical Dimension: Standard single‑slot plug‑in module for ABB control rack Protection Grade: IP20 Certifications: CE

Functional Features Supports high‑precision acquisition for field analog current and voltage signals. Provides high‑resolution analog‑digital conversion function. Built‑in multi‑stage hardware filtering circuit suppresses complex site electromagnetic noise. Delivers digital process measurement data to main controller via rack backplane bus. Implements channel short‑circuit and signal over‑range diagnosis function. Provides visual LED status indication for module working state and channel fault. Supports hot‑swap replacement under compliant site safety operation. Fully compatible with ABB rack system internal bus protocol.

Performance Parameters Signal sampling rate: 80 samples per second for each channel Temperature drift: Less than 0.03% full scale per 10℃ Fault tolerance: Single channel abnormal will not affect other channels measurement performance Mean Time Between Failures: Exceeds 250000 hours Shock and vibration resistance: Complies with IEC 60068‑2‑6 industrial cabinet‑mount standard

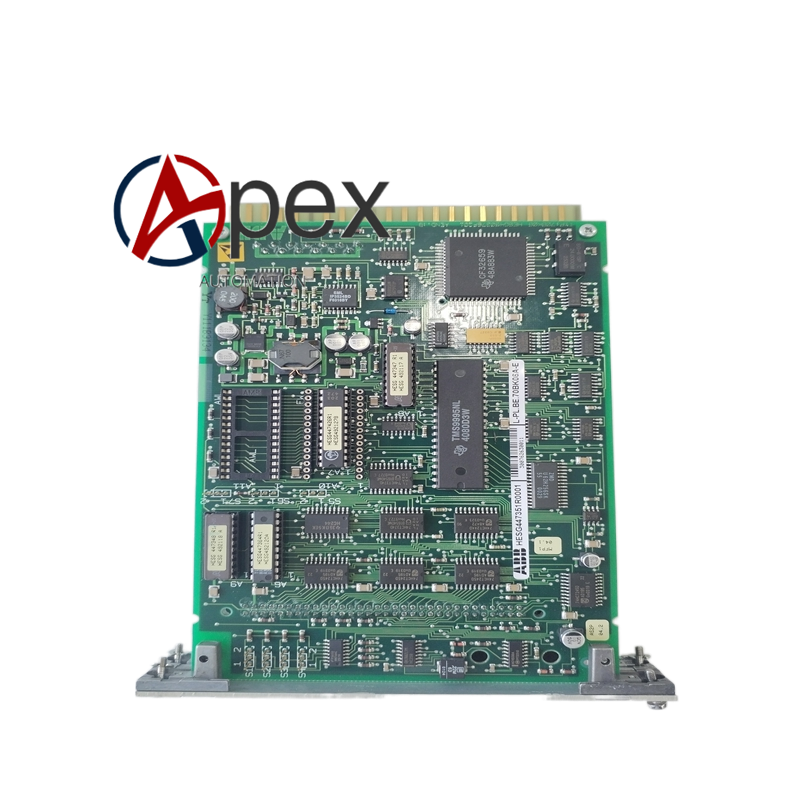

Material Composition Main circuit substrate: High‑grade industrial multilayer printed circuit board with conformal anti‑corrosion coating. Housing and frame: Reinforced flame‑retardant alloy plastic rack mounting frame. Connector parts: Gold‑plated field terminal blocks and backplane golden finger connectors. Internal components: High‑precision operational amplifiers, isolated optocouplers, 18‑bit A/D conversion chips. Structural fasteners: Anti‑loosening metal spring locking clip for rack installation.

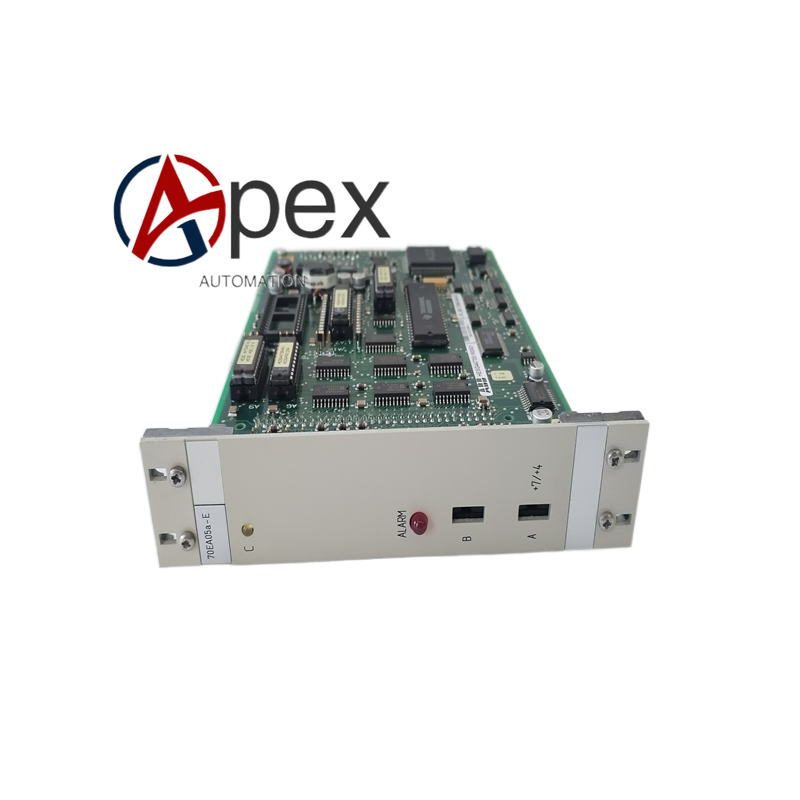

Structural Characteristics Standard single‑slot plug‑in structure matching ABB series control rack. Front panel equipped with LED indicator lamps for power supply and channel fault alarm. Field signal wiring terminals arranged at module front side for convenient maintenance operation. Backplane golden finger interface for internal system bus communication. Integrated metal shielding structure to restrain external electromagnetic interference. Spring‑lock mechanism for firm installation inside rack to resist vibration displacement.

Application Scenarios

Turbine temperature monitoring, generator winding condition monitoring, and boiler parameter tracking in thermal and nuclear power plants. Distillation column temperature monitoring, reactor condition tracking, and pipeline pressure signal acquisition in oil & gas. Batch reactor temperature and pH monitoring in chemical manufacturing. Flow meter, level sensor, and analyzer integration in water treatment plants.

Installation and Usage Notes

Mount the module onto the system backplane or DIN rail inside the control cabinet. Connect field wiring to the screw-terminal blocks observing polarity and signal type. Configure channel parameters (thermocouple type, voltage range, alarms) via ABB Control Builder software. Verify the module is automatically recognized by the system controller upon power-up. Ensure proper grounding of the cabinet earth bus to maintain measurement accuracy and isolation integrity.
