Technical Specifications IGCT: high‑voltage high‑current rating, operating junction temperature ‑40 ℃ to +125 ℃. Trigger Board: auxiliary power 24 V DC, operating temperature ‑10 ℃ to +55 ℃, conformal coated circuit board.
Functional Features IGCT completes high‑current main‑circuit turn‑on and turn‑off action. 3BHB018162R0001 receives control command and generates gate trigger and commutated signal. On‑board LED indicates trigger board operating and fault status. Built‑in hardware self‑diagnosis detects signal circuit abnormality.
Application Scenarios Combined spare assembly for ABB high‑power inverter and excitation equipment. Applied in power plant and heavy‑industry power electronic equipment overhaul.
Performance Parameters IGCT has fast commutated turn‑off performance. Trigger board outputs stable driving signal. Whole assembly maintains reliable switching performance under long‑time load operation.
Material Composition IGCT: metal press‑pack housing, semiconductor silicon chip, gate terminal. Trigger Board: multilayer glass‑fiber epoxy printed circuit board, pulse generation assemblies, conformal protective coating, signal connectors.

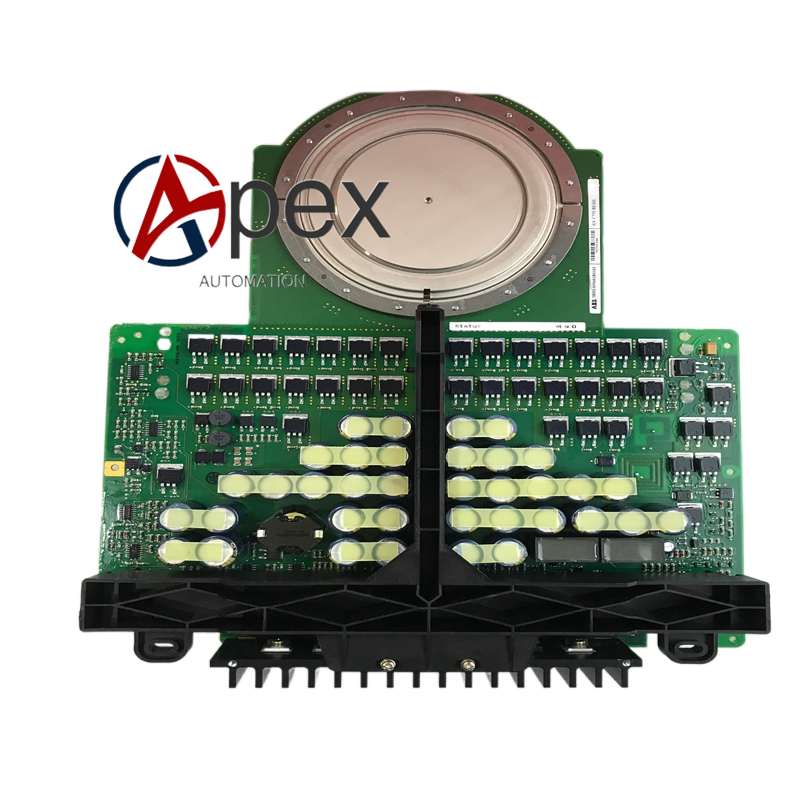

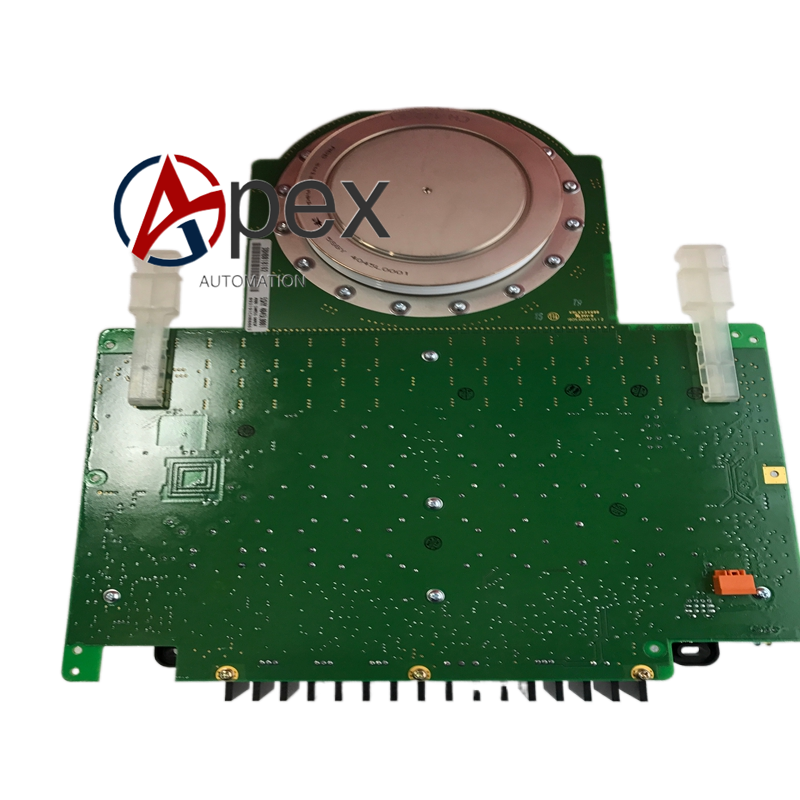

Structural Characteristics IGCT is disc‑shaped press‑pack power device. Trigger board is plug‑in circuit board mounted beside power stack. Weight total approximately 2.05 kilogram.
Working Principle Main control system sends control command to 3BHB018162R0001 trigger board. Trigger board generates gate trigger and commutated pulse signals and transmits to 5SHY4045L0001. IGCT completes conduction and blocking action according to gate signal to realize main‑loop power conversion. Diagnosis circuit monitors trigger board signal output status continuously.
Installation Requirements Fully cut off main power and complete high‑voltage capacitor discharge before replacement. Install 5SHY4045L0001 into power stack with specified compression force. Mount 3BHB018162R0001 trigger board and complete signal wiring. Restore power supply, perform insulation test and full‑load running test.
Usage Notes Strictly follow electrostatic protection requirements. Ensure stacking pressure of IGCT meets specification. Check connection between trigger board and IGCT gate terminal. Do not hot‑plug trigger board under powered state.
