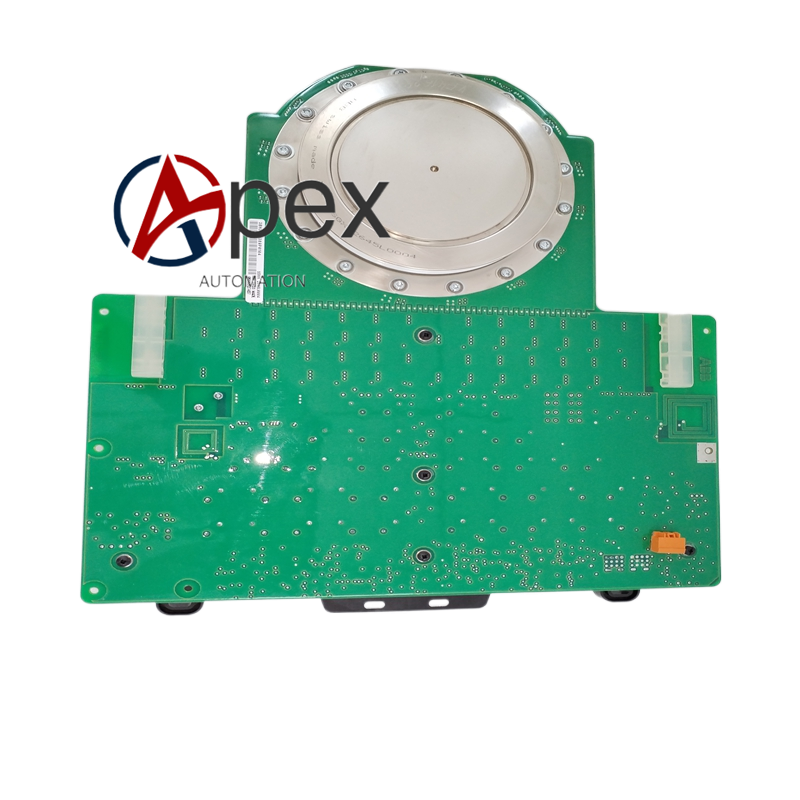

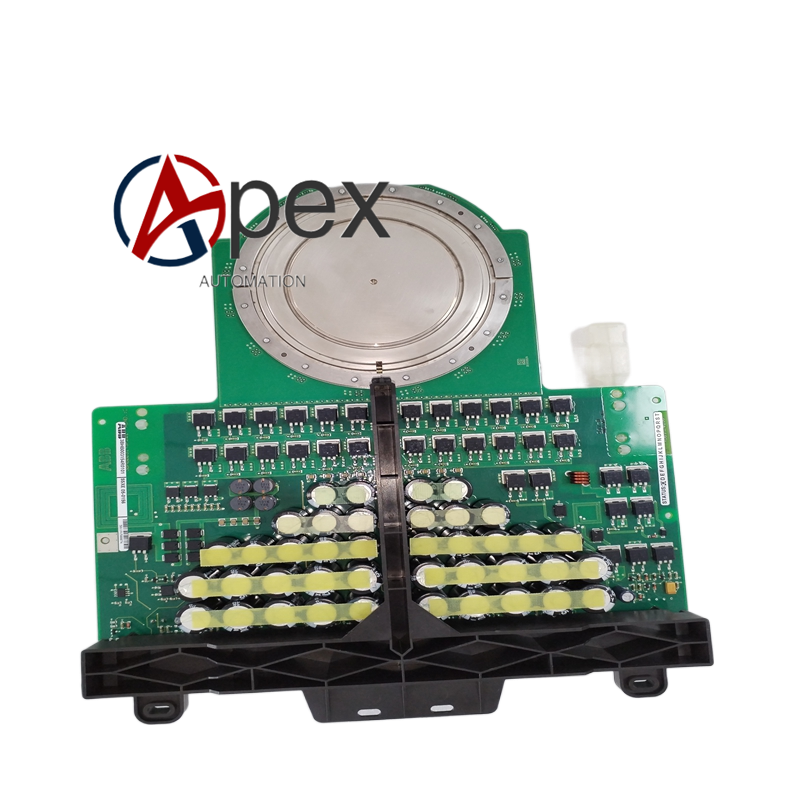

ABB 5SHX2646L0004 Integrated Gate-Commutated Thyristor (IGCT) Power Module

Manufacturer: ABB (Sweden)

Model: 5SHX2646L0004

Product Type: Integrated Gate-Commutated Thyristor (IGCT) Module

Voltage Rating: 1000 V (medium-voltage class, certain sources state 4500 V for symmetric type)

Continuous On-State Current: 2646 A

Peak Current Handling: High surge current capacity for transient loads

Switching Frequency: 50/60 Hz industrial power systems (capable of higher-frequency operation)

On-State Voltage Drop: Minimal forward voltage drop for high energy efficiency

Isolation: High galvanic isolation between power and control circuits

Gate Drive Interface: Low-inductance, high-speed gate control connection

Cooling Method: Optimized thermal design, supports natural cooling and forced-air cooling (water-cooled radiator optional)

Protection Class: IP20 (suitable for integration into enclosed power cabinets)

Operating Junction Temperature: -40 to +125 °C

Storage Temperature: -40 to +85 °C

Humidity: 5–95 % RH non-condensing

Vibration/Shock: Complies with IEC 60068-2-6 and IEC 60068-2-27

Certifications: CE, UL, RoHS, IEC 60747

Corresponding Part Number: 3BHL000389P0104 (same series as 5SHX2645L0004)

Ultra-high current handling with 2646 A continuous current capacity for heavy industrial loads. Fast switching speed enables high-frequency operation with minimal switching losses. High power density with compact design maximizes power output while minimizing system footprint. Low on-state losses reduce energy consumption and heat generation. Robust thermal management with optimized baseplate and cooling design. Snubber-less operation due to high dv/dt rating. Built-in overcurrent, over-temperature, and over-voltage protection. Industrial durability resists vibration, shock, and harsh environmental contaminants.

Medium-voltage variable frequency drives (VFDs) for pumps, fans, compressors, and conveyors. Industrial process control for metal processing, cement, chemical manufacturing. Mining machinery drives, oil & gas offshore drilling equipment, marine propulsion converters. Power generation & grid support including STATCOM and grid-tie converters for wind/solar plants. Rail traction converters and HVDC/FACTS power transmission systems.

Install the module on a suitable heat sink observing the specified mounting force and torque values. Ensure proper cooling (natural, forced-air, or liquid cooling) is provided and verified before energizing. Connect the gate drive interface with correct polarity and low-inductance wiring. Verify all protective functions (overcurrent, overtemperature) are correctly configured in the converter control system. Perform a controlled startup with gradual voltage ramp-up while monitoring leakage currents and gate driver feedback.
