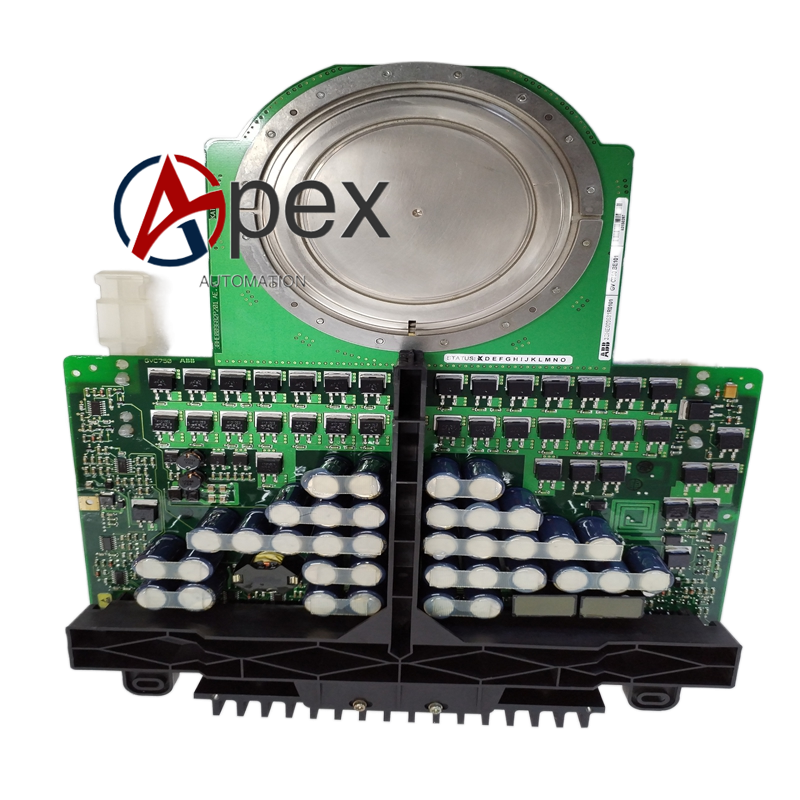

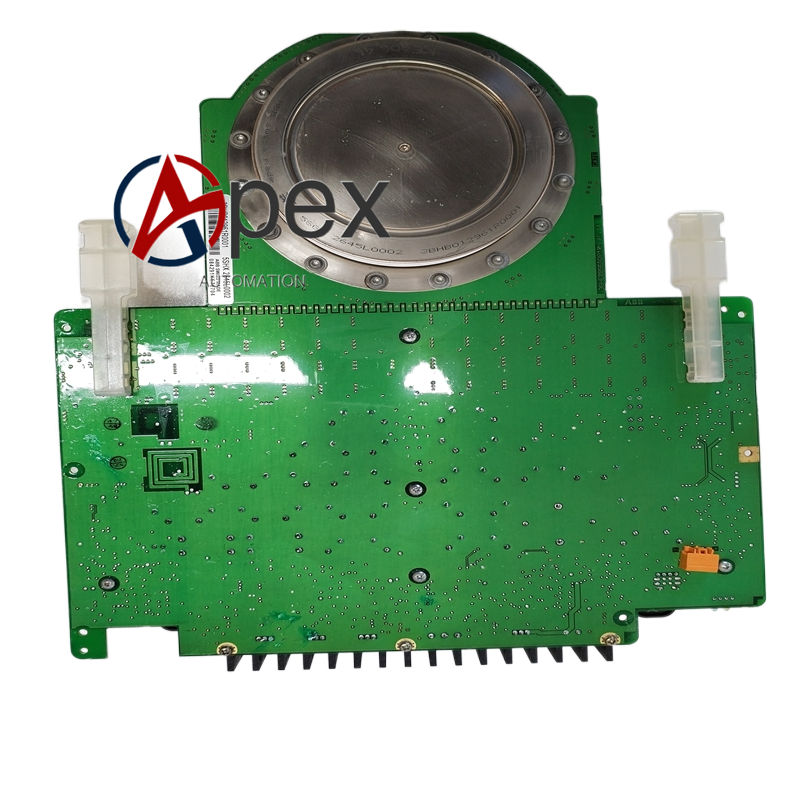

ABB 5SHX2645L0002 High-Power Integrated Gate-Commutated Thyristor (IGCT) Module

Manufacturer: ABB

Model: 5SHX2645L0002

Associated Part Numbers: 3HB012961R0001 / 3BHB012961R0001

Component Type: Integrated Gate Commutated Thyristor (IGCT)

Repetitive Peak Off-State Voltage (V_DRM): 4500 V

Permanent DC-Link Voltage (V_DC): 2800 V

Repetitive Peak Reverse Voltage (V_RRM): 17 V (asymmetric type)

Average On-State Current (I_TAVM): 2645 A

Maximum Controllable Turn-Off Current (I_TGQM): 2600 A

Surge On-State Current (I_TSM): 40 kA (some sources state 50 kA for 3 ms sine wave)

On-State Voltage (V_T): 2.35–2.7 V at 2600 A, T_j = 125 °C

Threshold Voltage (V_T0): 1.4 V

Slope Resistance (r_T): 0.325 mΩ

Turn-On Delay Time: 3.5 µs

Turn-Off Delay Time: 7 µs

Turn-Off Energy per Pulse: 19.5–22 J

Gate Trigger Current (I_GT): 200 mA

Gate Trigger Voltage (V_GT): 3 V

Operating Junction Temperature (T_vj): -40 to +125 °C

Storage Temperature: -40 to +150 °C

Mounting Force: 36–44 kN

Stray Inductance (L_D): 30 to 50 nH typical

Cooling Method: Double-sided press-pack liquid/air cooling integration

Dimensions: 120 × 120 × 100 mm (some sources state 93 mm diameter)

Weight: 2.5 kg (some sources state 2.9 kg or 3.4 kg)

Package Type: Press-pack

The module supports a 4500 V blocking voltage and 2645 A average current, suitable for large-scale power conversion in medium-voltage systems. Its high surge current tolerance ensures reliability under transient load conditions. Integrated gate drive and protection simplify system design and reduce external components. The press-pack housing facilitates double-side cooling for superior thermal performance and features non-catastrophic failure modes, enhancing system safety. High snubber-less turn-off rating and simple optical control interface with status feedback are provided.

Central switching element in medium-voltage drives, grid compensation systems (STATCOM/SVC), and renewable energy converters. Used in industrial process control for metal processing, cement production, chemical manufacturing, and material handling systems. Also applied in mining & heavy machinery drives, oil & gas, marine propulsion, and power generation & grid support.

Mount using a calibrated press applying the specified clamping force (36–44 kN) against a flat, clean heat sink (liquid- or air-cooled). Ensure the cooling circuit is operational before applying DC-link voltage. Connect the gate driver using the specified low-inductance connection and verify gate auxiliary supply. Observe proper handling procedures for press-pack devices to avoid mechanical damage.
