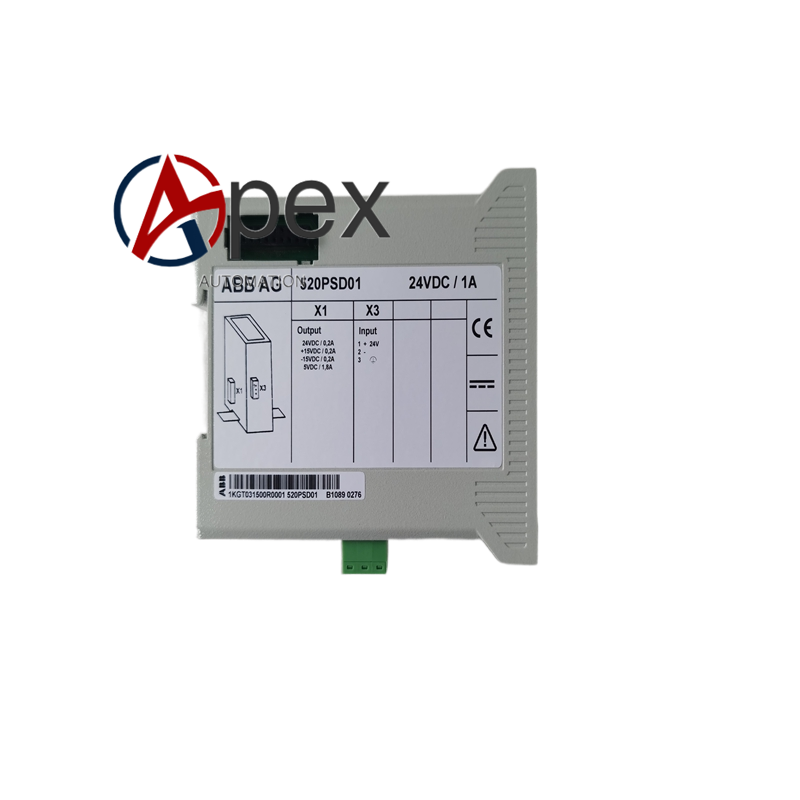

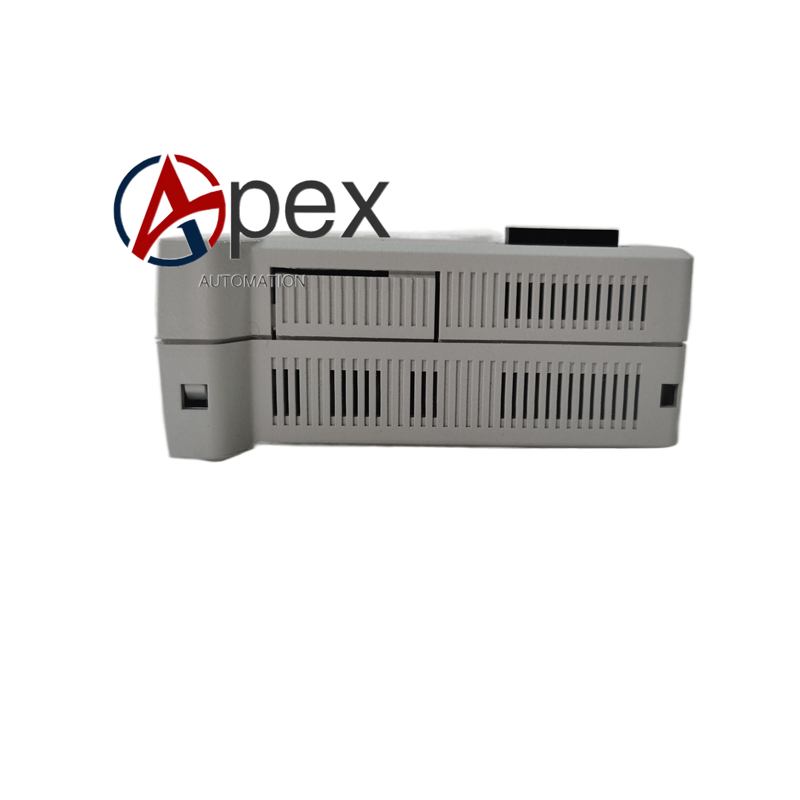

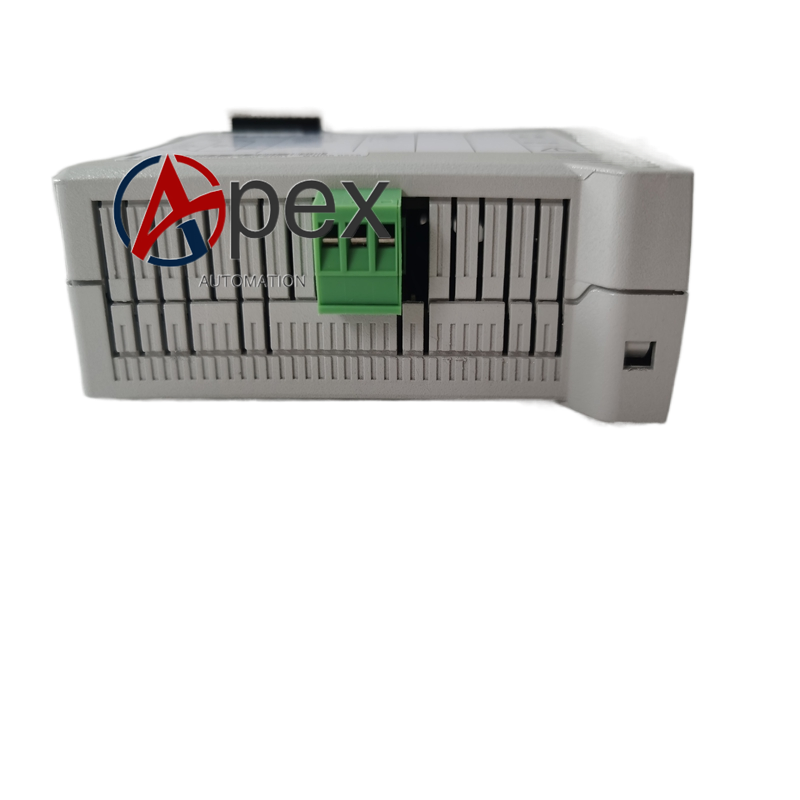

ABB 520PSD01 Power Supply Module

Technical Specifications Input Voltage Range: 85‑264 VAC Output Rated Voltage: 24 VDC Output Rated Current: Corresponding rated output current for system rack load Output Ripple: Low‑ripple DC output Over‑voltage, over‑current, over‑temperature built‑in protection Operating Temperature: 0 ℃ to +55 ℃ Storage Temperature: ‑40 ℃ to +85 ℃ Relative Humidity: 5%‑95%, non‑condensing Mechanical Dimension: Single‑slot plug‑in rack module Certifications: CE

Functional Features Converts wide‑range AC input into stable 24 VDC system power supply for rack backplane. Built‑in over‑voltage, over‑current and over‑temperature protection mechanism. Provides front‑panel LED indicator for power‑supply normal and fault alarm state. Supports hot‑swap replacement complying with on‑site safety operation procedure. Delivers stable power output for CPU and all I/O modules in system rack. Short‑circuit protection activates when back‑plane load short‑circuit occurs.

Application Scenarios ABB corresponding series control system rack internal power supply unit. Process industry automation cabinet main rack power‑supply spare‑part replacement.

Installation Requirements Install power‑supply module into designated power‑supply slot of standard control rack. Ensure cabinet protective earth connection strictly follows power‑distribution grounding specification. Separate AC input power‑cable and low‑voltage signal‑cable routing. Confirm AC input voltage matches module rated input range before power‑on. Module supports hot‑swap; replacement operation must comply with on‑site safety operation procedure. Ambient installation environment stays within defined temperature and humidity range without condensed moisture. Reserve heat‑dissipation space for power‑supply module. Tighten power‑input terminal screws with manufacturer‑recommended torque value to prevent over‑heating caused by poor contact.

Usage Notes Do not exceed total rated output load capacity of power‑supply module. Control cabinet internal dust accumulation to avoid heat‑dissipation channel blockage. Carry out regular inspection for front‑panel LED status indicator. Do not short‑circuit back‑plane power bus artificially. Check power‑input terminal tightening status during periodic equipment maintenance. Implement lock‑out tag‑out safety rules during power‑supply module replacement and maintenance.
