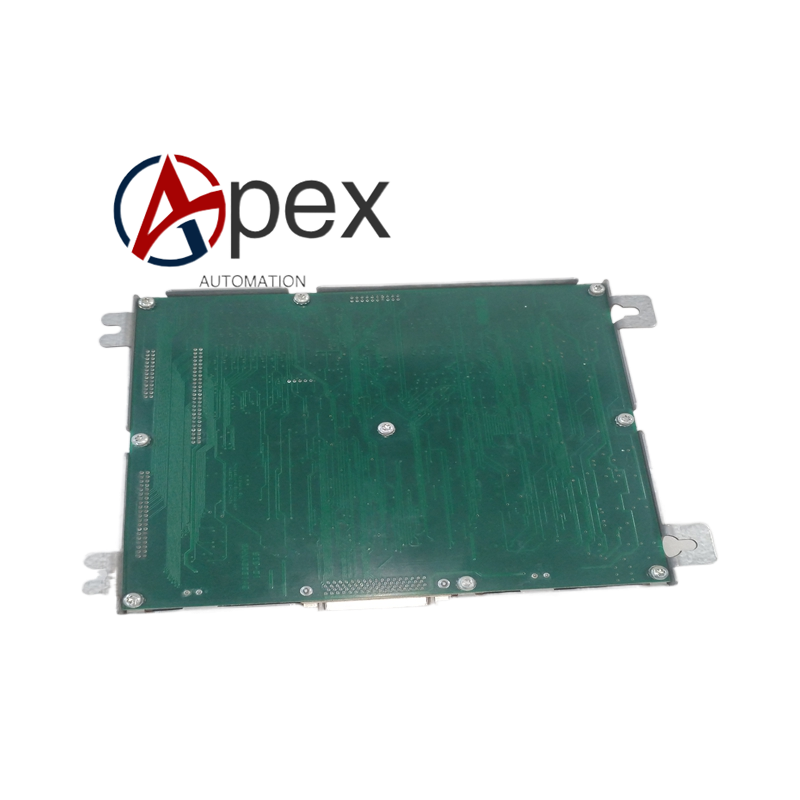

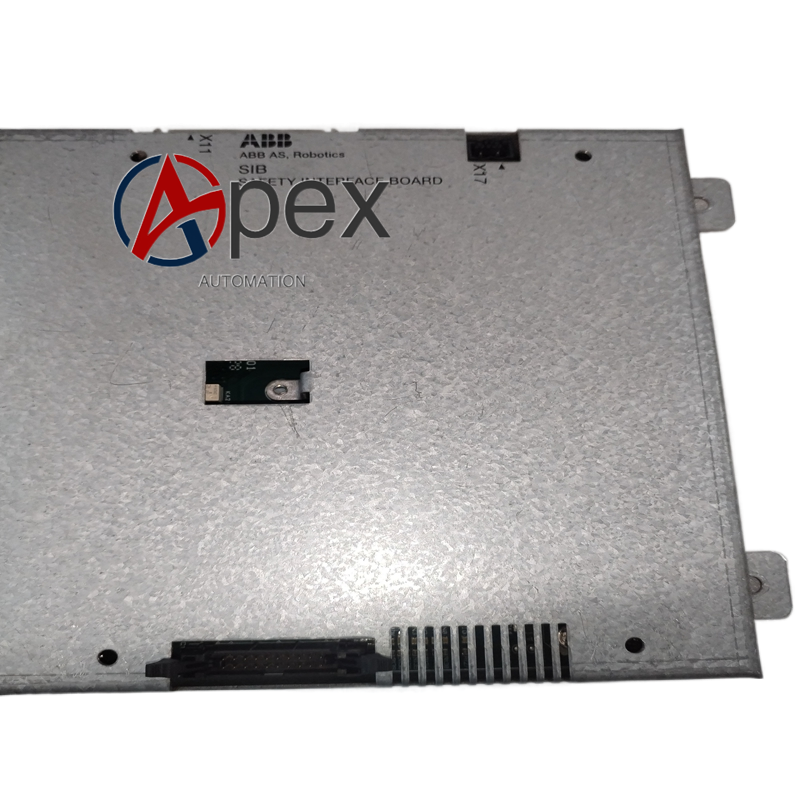

ABB 3HNA006146-001 SIB-01 Robot Safety Interface Board

Manufacturer: ABB

Model: SIB-01

Catalog Number: 3HNA006146-001

Product Type: Robot Safety Interface Board

Compatible Controller: IRC5P Paint Robot Control System

Rated Supply Voltage: 24 V DC

Operating Temperature: 0 to +55 °C (some sources state -20 to +60 °C)

Dimensions: 270 mm × 205 mm × 20 mm (sources vary: 165 × 110 × 74 mm)

Net Weight: 0.92 kg

Protection Class: IP20

Core Functions: E-stop signal acquisition, safety door monitoring, safety signal transmission

Safety Compliance: ISO 13849-1 PLd, EN 954-1, EN 61508 SIL 3

Certifications: CE, UL, IECEx (varies by source)

Mounting: Cabinet internal fixed installation

Provides dedicated safety input channels for emergency stop buttons and safety door switches. Continuously monitors the integrity of safety circuits and transmits status to the IRC5P controller for immediate interlock response. LED indicators give at-a-glance status of safety chain health during commissioning and maintenance.

Specifically deployed in ABB IRC5P paint robot controllers used in automotive paint shops and other hazardous-area robotic applications where safety interlocks for E-stop and safety doors are mandated.

Install inside the IRC5P controller cabinet per ABB mechanical layout drawings. Connect 24 V DC supply from the controller’s safety power source. Wire E-stop and safety door contacts to the designated safety input terminals observing the wiring diagram. Verify safety chain continuity and perform functional test of E-stop and door interlock during commissioning. Do not bypass safety inputs during operation.
