Technical Specifications Multi‑channel servo power output, encoder feedback signal interface. Three‑phase AC main power input, 24 V DC auxiliary control power. Operating temperature 0 ℃ to +55 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Integrated multiple hardware protection functions.
Functional Features Receives motion control instructions from robot main controller. Outputs adjustable frequency and voltage power to robot joint servo motors. Processes encoder position feedback signals for closed‑loop control. On‑board LED displays module running and fault alarm status. Built‑in hardware self‑diagnosis detects power unit over‑current, over‑temperature and feedback circuit faults.
Application Scenarios Replacement spare‑part for ABB industrial robot control cabinet. Applied in automated production line robot equipment overhaul and spare‑part replacement.
Performance Parameters High dynamic servo response performance for robot joint motion. Stable power output under long‑time continuous operation. Accurate hardware fault detection capability.
Material Composition Metal heat‑dissipation housing. Power electronic components, signal processing printed circuit board. Power terminals and signal connectors.

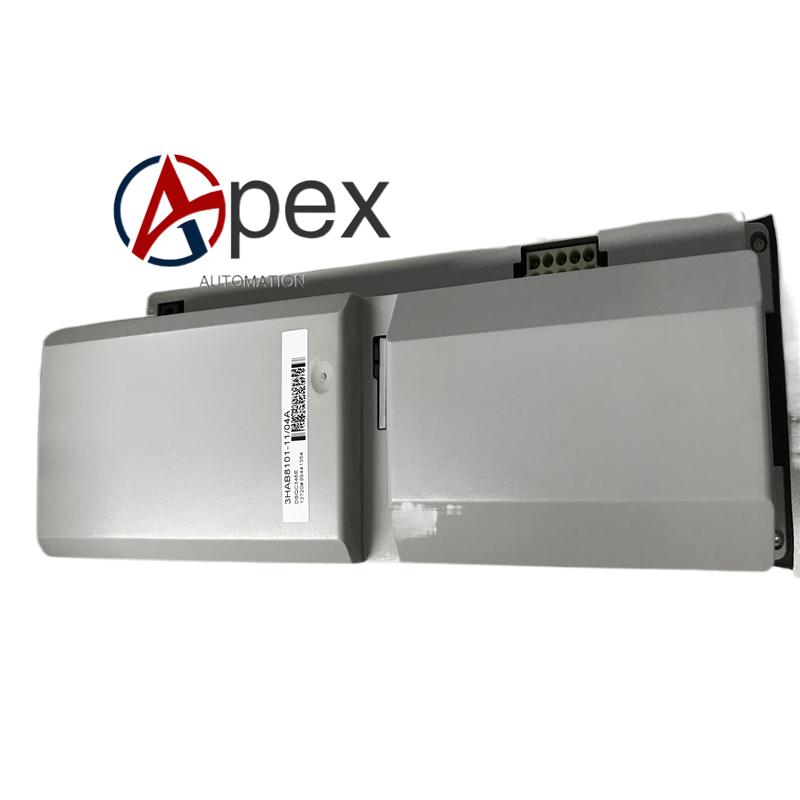

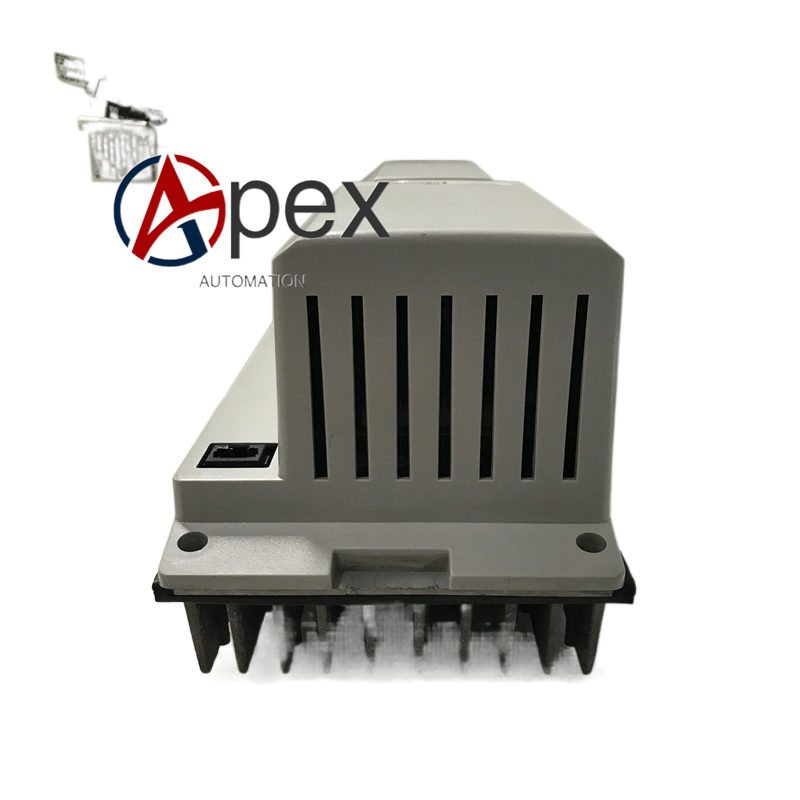

Structural Characteristics Cabinet fixed‑mount integrated module. Equipped with power wiring terminals and signal plug‑in connectors. Reserved mounting fixing holes. Weight approximately 3.4 kilogram.
Working Principle After power‑on, module completes hardware self‑check. Motion commands are received from robot main controller. Internal power conversion circuit generates driving power for servo motors. Encoder feedback signals are collected to form position‑speed closed‑loop adjustment. Protection circuit executes shutdown protection when abnormal condition occurs.
Installation Requirements Cut off robot cabinet total power supply before replacement. Secure 3HAB8101‑1105D to cabinet mounting bracket. Connect main power cable, motor power cable and encoder feedback cable. Restore power supply, complete robot axis zero‑point calibration and joint motion test.
Usage Notes Maintain unobstructed heat‑dissipation air channel of drive module. Prevent dust accumulation inside cabinet. Check connector locking state during periodic maintenance. Re‑calibrate robot mechanical zero after replacement.
