Technical Specifications Multi‑channel analog output, supports 4‑20 mA current signal. Auxiliary power 24 V DC, typical power consumption 4.2 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Galvanic isolation between field side and internal back‑plane bus.
Functional Features Receives digital set‑point values from DCS main controller. Completes digital‑to‑analog conversion for control signals. Outputs standard current analog signals to field positioners and regulating actuators. Each channel corresponds to status LED indicator. Supports hardware self‑diagnosis for output loop open‑circuit and short‑circuit faults.
Application Scenarios Field control output spare‑part for ABB DCS automation system. Applied in power plant and petrochemical industry for control of regulating valves and field analog actuators.
Performance Parameters High‑precision digital‑to‑analog conversion guarantees output signal accuracy. Galvanic isolation blocks field‑side surge interference from invading control rack. Self‑diagnosis accurately locates output loop hardware faults.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Signal conversion and conditioning assemblies. Back‑plane plug‑in connector and field wiring screw terminals.

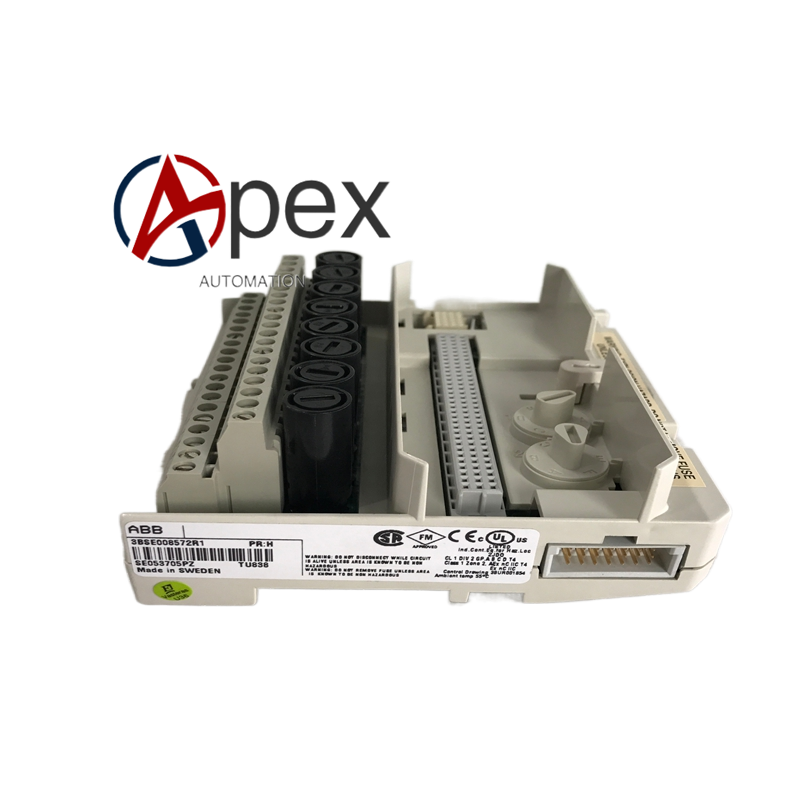

Structural Characteristics Standard DCS plug‑in module structure. Front panel arranges channel status LED and field wiring terminals. Rear side fitted with back‑plane bus connector. Weight approximately 0.37 kilogram.
Working Principle DCS controller transmits digital control value via back‑plane bus. Internal digital‑to‑analog conversion circuit converts digital data into standard current signal. Analog signal is output to field actuator through front‑end terminals. Diagnosis circuit monitors each output channel loop condition continuously.
Installation Requirements Insert 3BSE008572R1 into designated slot of DCS rack and lock fixing latch. Complete field actuator signal wiring on front‑end terminals. Confirm back‑plane connector is fully engaged. Power on DCS system and perform channel output accuracy test.
