Technical Specifications Multi‑channel isolated digital input. Auxiliary power 24 V DC, typical power consumption 4.0 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Galvanic isolation between field channel and internal back‑plane bus.
Functional Features Acquires field contact switching status signals. Completes signal filtering and galvanic isolation. Transmits digital status data to DCS main controller through back‑plane bus. Each channel corresponds to status LED indicator. Supports hardware self‑diagnosis for channel circuit abnormality.
Application Scenarios Field signal acquisition spare‑part for ABB DCS automation system. Used in power, chemical industry for collecting equipment interlock contact and auxiliary switch status.
Performance Parameters Reliable identification of field contact on‑off status. Galvanic isolation blocks field‑side surge interference from entering control rack. Self‑diagnosis provides channel fault indication.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Signal conditioning and optocoupler isolation assemblies. Back‑plane plug‑in connector and field wiring screw terminals.

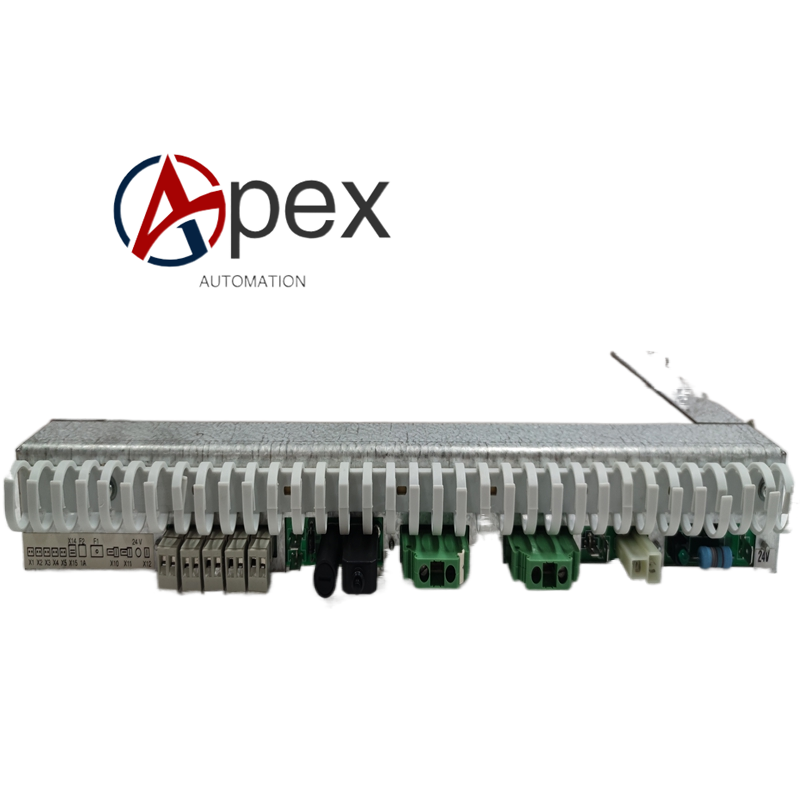

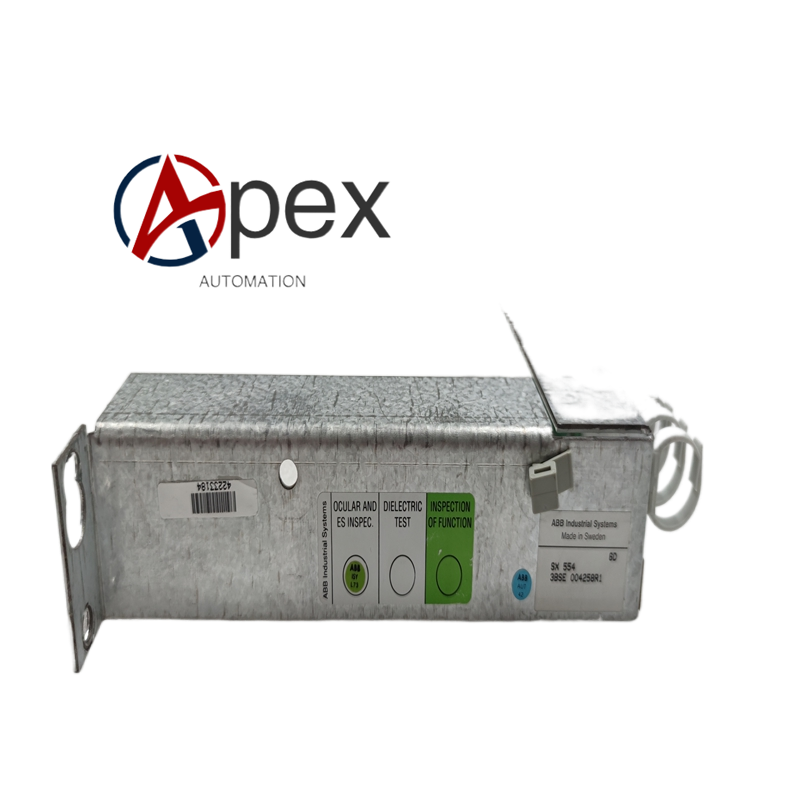

Structural Characteristics Standard DCS plug‑in module structure. Front panel arranges channel status LED and field wiring terminals. Rear side fitted with back‑plane bus connector. Weight approximately 0.35 kilogram.
Working Principle Field switching signals enter module through front‑end screw terminals. Signals go through filtering and optocoupler isolation processing. Contact status is converted into digital data and transmitted to DCS controller over back‑plane bus. Diagnosis circuit monitors each input channel working condition continuously.
Installation Requirements Insert 3BSE004258R1 into designated slot of DCS rack and lock fixing latch. Complete field contact signal wiring on front‑end terminals. Confirm back‑plane connector is fully engaged. Power on DCS system and perform channel signal acquisition test.
Usage Notes Match field input signal voltage with module rated specification. Check terminal tightening torque in regular maintenance. Avoid condensation and corrosive‑gas operating environment.
