ABB 3BHE037864R0107 Main Control Processor Board

Alias UFC911B107, MPRC086444-005. Order number 3BHE037864R0107. Supply 24 V DC from converter control power, plus minus 15 V and plus minus 5 V auxiliary. Fiber Rx or Tx 10 Mbit ABB module bus, ST or SMA multi-mode 660 or 820 nm, distance below 30 m. Trigger pulse peak several thousand volts, peak amperes. Pulse shaping with dead-band check, parity, minimum pulse width, hardware Pulse Block. Dimensions approximately 230 mm by 160 mm by 40 mm, weight about 1.2 kg. Operating temperature -10 to plus 55 C. Storage -40 to plus 85 C. Conformal coat. Protection IP20. Mount DIN or screw on cabinet back panel.

EMI-immune fiber trigger. Onboard re-timing of upstream PWM. Pulse Block on gate fault. Desat and over-temp readback. Redundant trigger channel switchover. Supports 12-pulse, 18-pulse, 24-pulse topologies. Hardware watchdog.

ACS800 MV mining crusher and rolling mill main drive. ACS6000 power plant boiler fan, marine propulsion, rail traction. Multi-pulse rectifier converters with 5SHY IGCT or 5SXE IGBT.

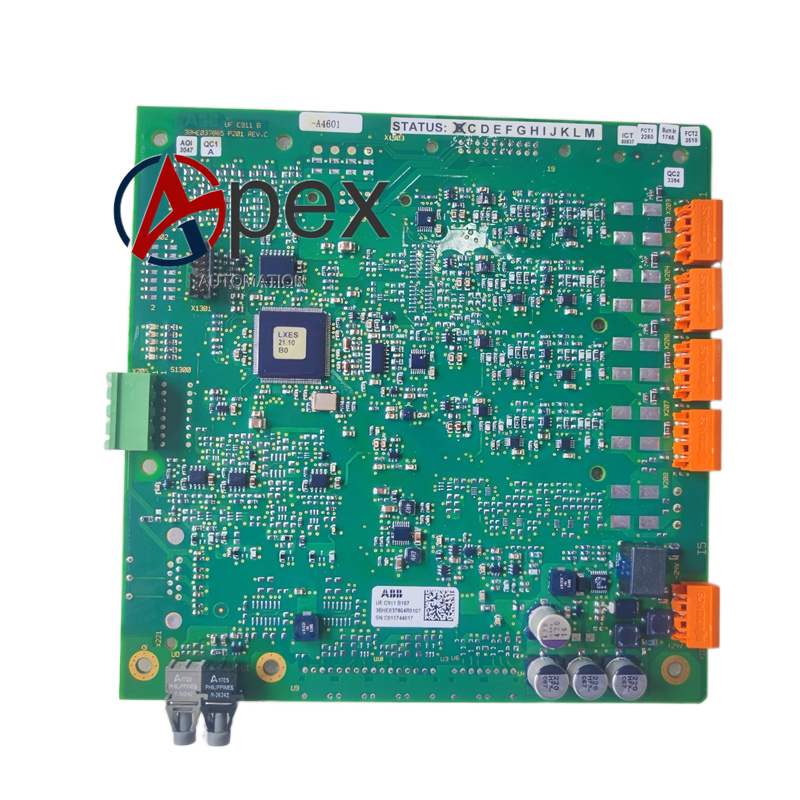

Rectangular PCB, fiber ST or SMA connectors, pulse transformers, gate drive transistors, gold backplane, aluminum mounting brackets, LED for PWR Run Fault Link.

Optical receiver decodes firing word, pulse amplifier charges gate capacitor, pulse transformer couples kV-class pulse to IGCT gate, feedback fiber reports desat over-temp pulse-loss to CPU, watchdog blocks output on lost link.

LOTO MV deck, wait for DC-link discharge, mount on heatsink bracket or cabinet panel, align fiber, torque screws, verify 24 V DC and plus minus 15 V before close.

B107 suffix is fixed HW revision, not interchangeable with B106 or B108 without checking CDR or CM firmware compatibility. Never measure gate output with MV energized. Mixing suffixes in one stack causes Unknown Board ID or Gate Comm Loss.
