Technical Specifications

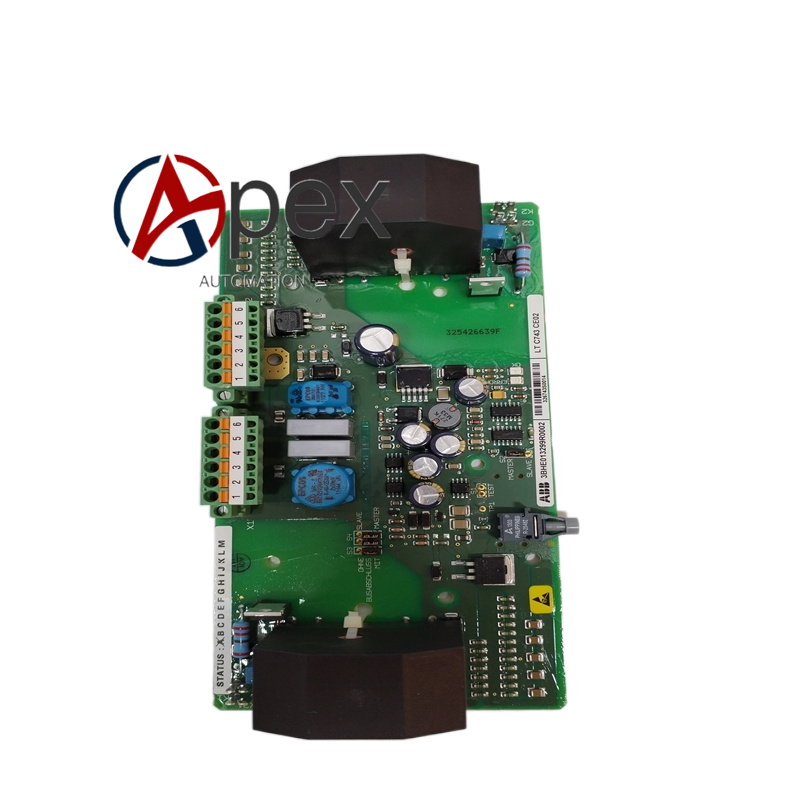

Model LTC743CE02. Order number 3BHE013299R0002. 32 isolated relay outputs, Form A normally open dry contact. Contact rating 2 A at 30 V DC or 250 V AC resistive. Isolation optical plus relay per channel, 1500 V AC channel-to-system. Backplane power 5 V and 24 V rails, consumption approximately 4.5 W. Terminal base TB840 required. Operating temperature 0 to plus 60 C. Diagnostics per-channel LED and module status LED. Hot-swap not officially supported, zero-config replacement via terminal base ID. Dimensions standard S800 card width. Conformal-coated PCB. Certifications CE, UL, IEC 61000-4 immunity.
Functional Features
Channel-to-channel galvanic isolation via electromechanical relay, eliminates ground loops. Mixed AC or DC load switching without level shifter. Native Control Builder M library. Predictive maintenance via 800xA channel status. Surge-suppressed inputs meeting plus minus 4 kV ESD and 2 kV burst.
Application Scenarios
Power plant sequence-of-operation logic. Water treatment valve and pump starter control. Mining conveyor interlock. Heavy process alarm annunciation. Motor starter coil switching.
Material and Structure
S800 I/O card format, black molded housing, 32 relay coils and contacts, opto-couplers, gold backplane fingers, LED column, plug-in TB840 terminal base.
Working Principle
AC 800M CPU writes output image to backplane, card drives relay coil through opto-isolator, contact closes field circuit, status reflected back via LED and diagnostics.
Installation Requirements
Insert into TB840 terminal base on S800 rack, DIN rail mount, 24 V DC field supply separated from backplane, terminate load per 2 A channel rating, suppress inductive loads with freewheel diode or RC snubber.
Usage Notes
Relay mechanical life limited by switching frequency, derate for inductive loads. Replace only in planned outage. Do not exceed 2 A per channel.
