Technical Specifications

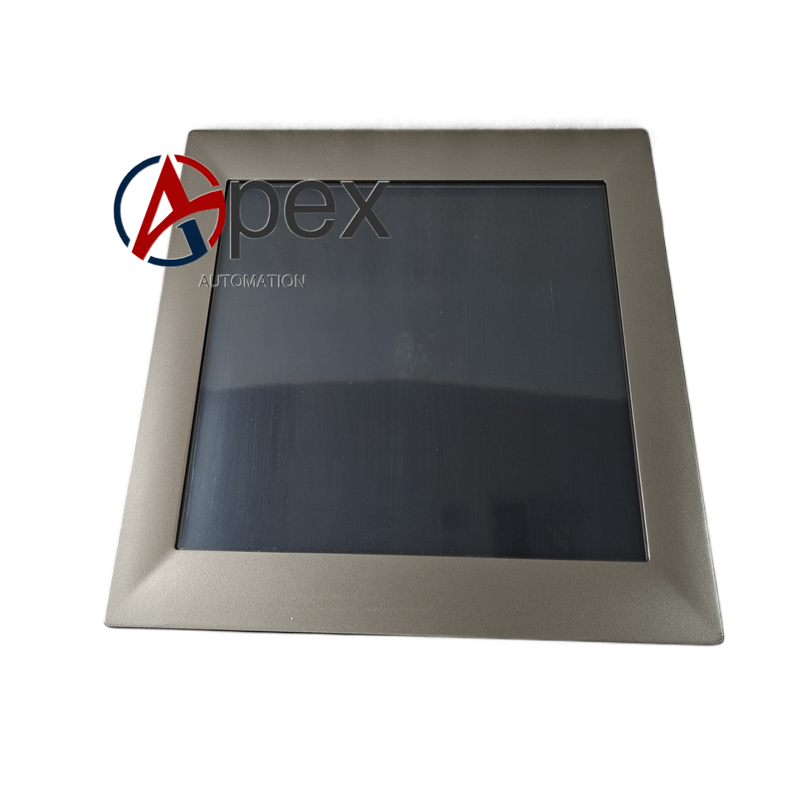

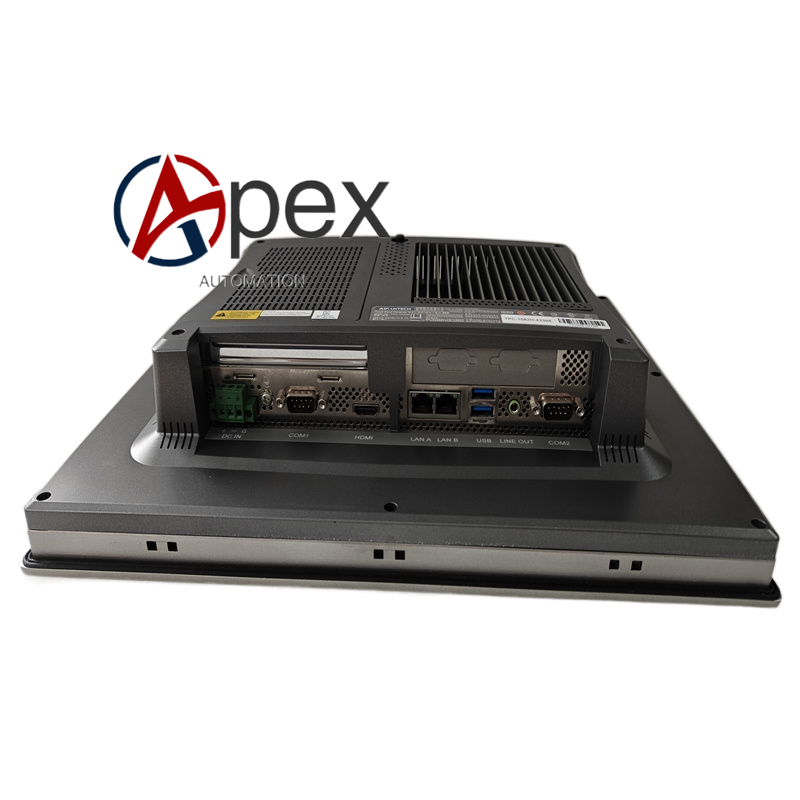

Display 15-inch class XGA or 1280 by 1024 LCD with 5-wire resistive or projected capacitive touch. Processor 4th Generation Intel Core i3-4010U 1.7 GHz or equivalent. Memory 4 GB DDR3L. Storage 64 GB SSD or eMMC. Operating system Windows 10 IoT Enterprise or Windows Embedded Standard. Power 24 V DC plus minus 10 percent, typical consumption 15 to 45 W. Ethernet 1 or 2 Gigabit RJ45. Serial 1 RS-232. USB 2 or 4 ports USB 2.0 and 3.0. Video HDMI and VGA. Expansion Mini-PCIe or iDoor for fieldbus cards. Front panel protection IP65. Chassis die-cast aluminum, fanless. Operating temperature -10 to plus 55 C. Storage temperature -20 to plus 65 C. Humidity 5 to 95 percent non-condensing. Vibration IEC 60068-2-6, shock IEC 60068-2-27. Certifications CE, UL, CSA, FCC, RoHS. Panel cut-out industrial 15-inch format, weight approximately 5.5 kg for 467 by 290 by 60 mm variant.
Functional Features
Fanless passive cooling with no moving parts. 800xA faceplate runtime support. Resistive touch works with gloves, PCAP supports multi-touch. iDoor fieldbus expansion for Profibus, Modbus, DeviceNet. Screw-terminal 24 V DC with surge protection. Status LEDs for power, network and fault.
Application Scenarios
Substation and power plant operator consoles. Medium-voltage drive local HMI. Petrochemical and refinery process view stations. Water and wastewater treatment SCADA clients. Food, pharmaceutical and discrete manufacturing line panels.
Material and Structure

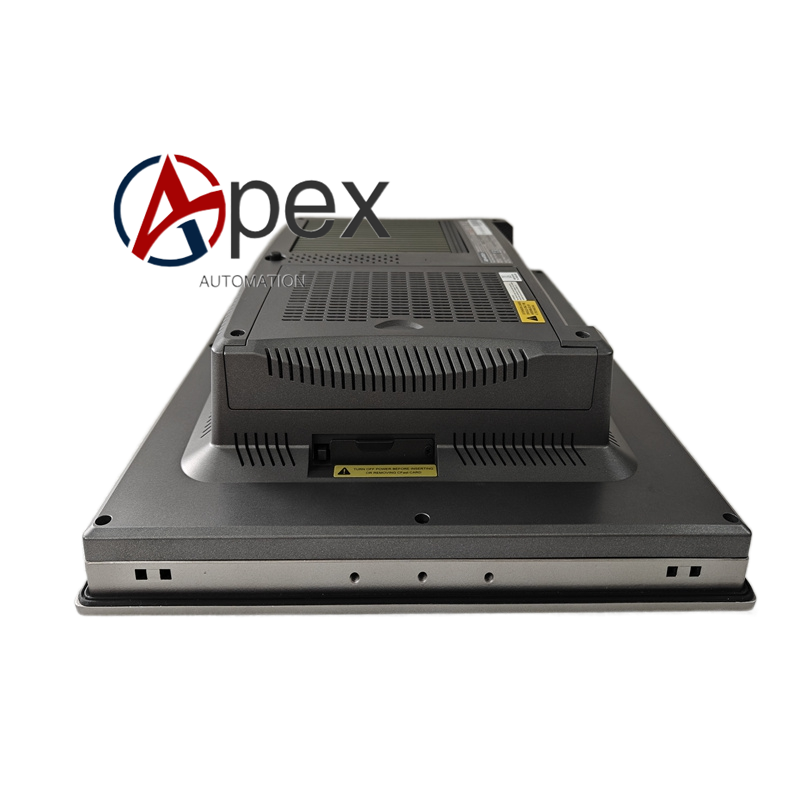

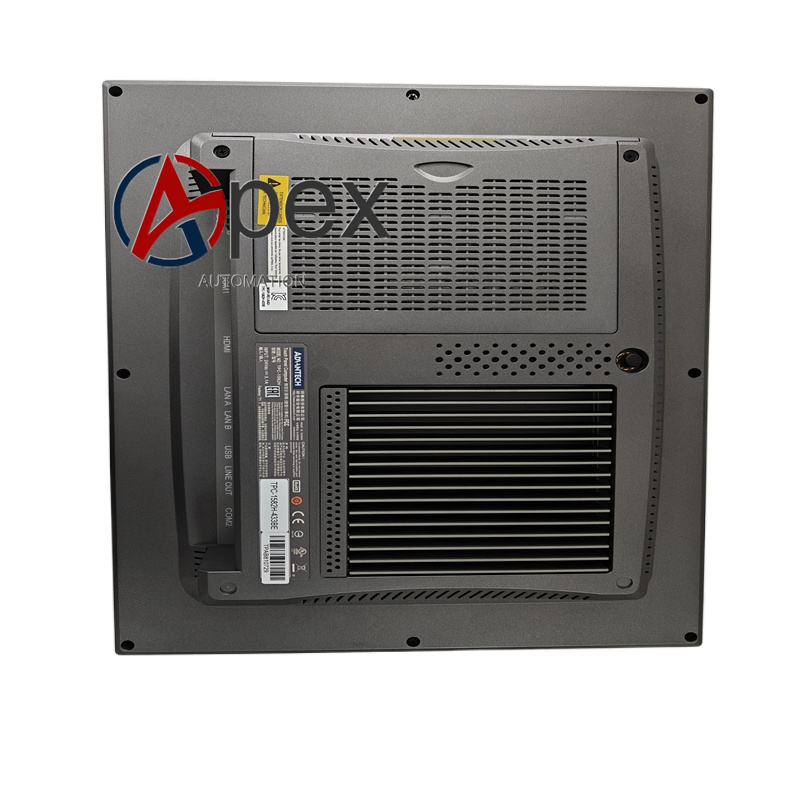

Die-cast aluminum front bezel, steel rear cover, internal aluminum heat spreader, glass LCD overlay, screw-terminal block for 24 V DC, no internal fan.
Working Principle
Runs industrial Windows, loads 800xA operator client or third-party HMI runtime from SSD, communicates with AC 800M or PLC over Ethernet Modbus TCP or OPC UA, renders process graphics on LCD and returns operator commands over the same network.
Installation Requirements
Panel cut-out with IP65 gasket, rear clamps to secure chassis, isolated 24 V DC supply with overcurrent protection, keep LCD out of direct sunlight, leave clearance behind panel for cable bend radius and heat convection.
Usage Notes
Calibrate resistive touch periodically. SSD has finite write cycles, avoid constant full-rate logging to local disk. Do not feed via PoE. Use isolated 24 V DC, not 24 V AC.
