Technical Specifications Back‑plane bus interface, industrial communication physical port. Auxiliary power 24 V DC, typical power consumption 4.4 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%.
Functional Features Executes protocol conversion between controller back‑plane bus and upper‑level communication network. Uploads real‑time process value, equipment status and fault alarm data. Receives remote configuration and control commands from host system. Front‑panel LED indicates communication link and module operating status. Built‑in hardware self‑diagnosis detects link interruption and internal circuit faults.
Application Scenarios Communication spare part for ABB PLC and DCS automation system. Applied in industrial site for control system and SCADA host interconnection maintenance.
Performance Parameters Stable bidirectional real‑time data transmission. Fast fault recognition for communication link abnormality. Reliable protocol conversion performance.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Protocol processing chip and signal isolation assemblies. Back‑plane plug‑in connector and network communication port.

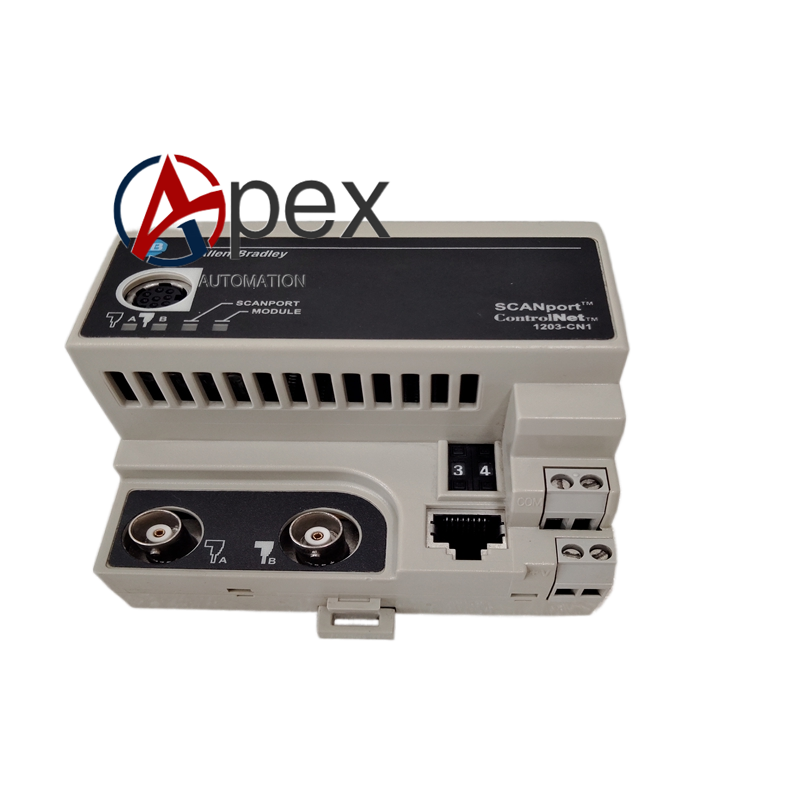

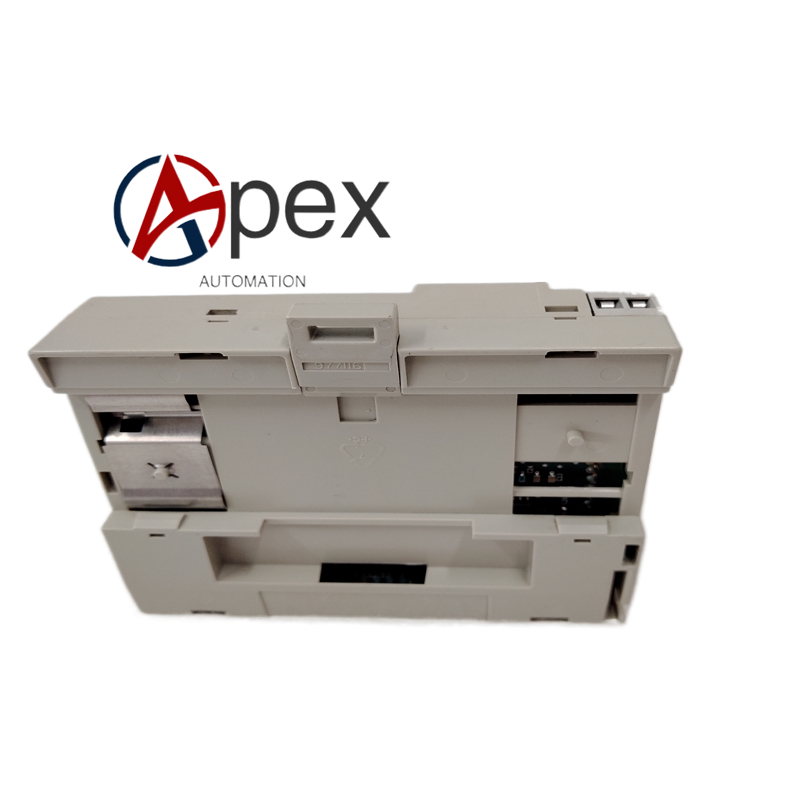

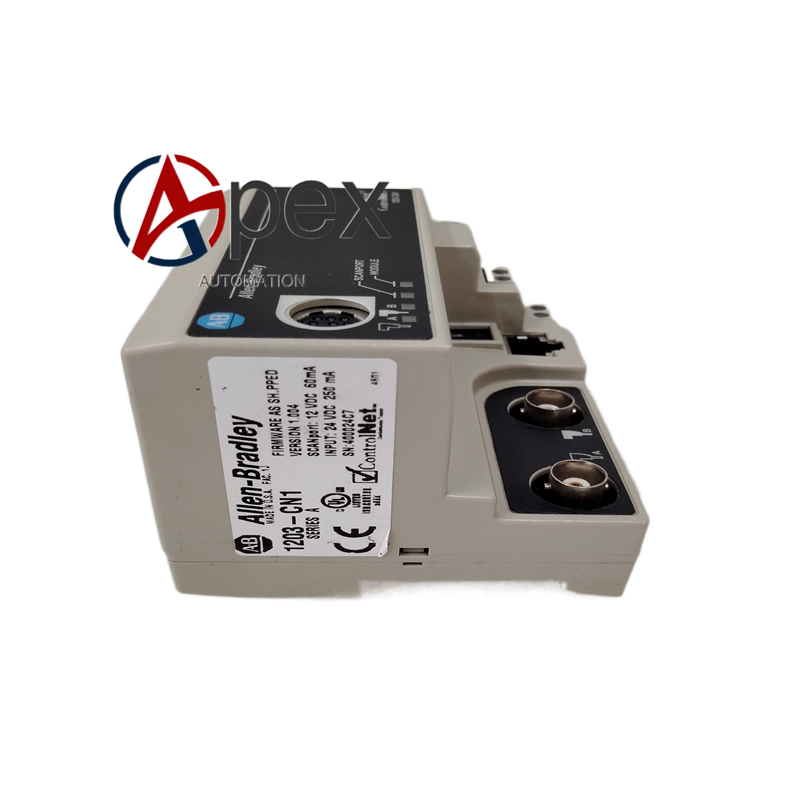

Structural Characteristics Standard rack plug‑in module. Front panel fitted with communication port and status LED indicators. Rear side equipped with back‑plane bus connector. Weight approximately 0.42 kilogram.
Working Principle After power‑on, module completes hardware self‑test and communication protocol initialization. It exchanges data with controller via back‑plane bus. Protocol conversion processing is performed for sending and receiving data packets. Bidirectional data interaction is completed with upper‑level host through communication port. Diagnosis circuit monitors communication link status continuously.
Installation Requirements Insert 1203‑CN1 into corresponding rack slot and lock fixing latch. Connect communication network cable to front‑end port. Confirm back‑plane connector is fully engaged. Restore power supply, configure communication parameters and verify data interaction with host system.
Usage Notes Use matched industrial communication cable. Verify upper‑host data reading and command response after replacement.
