Technical Specifications Multi‑channel analog and digital signal input‑output interface, internal bus connector. Auxiliary supply 24 V DC, typical power consumption 4.7 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Conformal coated printed circuit board.
Functional Features Receives external start‑stop commands, setpoint signals and equipment feedback status. Performs signal filtering, level conversion and galvanic isolation. Transmits conditioned signals to drive main control unit. On‑board LED displays channel status and board fault information. Built‑in hardware self‑diagnosis detects signal loop open‑circuit and short‑circuit faults.
Application Scenarios Spare part for ABB large‑capacity variable‑frequency drive cabinet. Applied in heavy‑industry transmission equipment maintenance and hardware replacement.
Performance Parameters Stable signal conditioning and transmission performance. Strong electromagnetic interference resistance. Reliable channel fault identification capability.

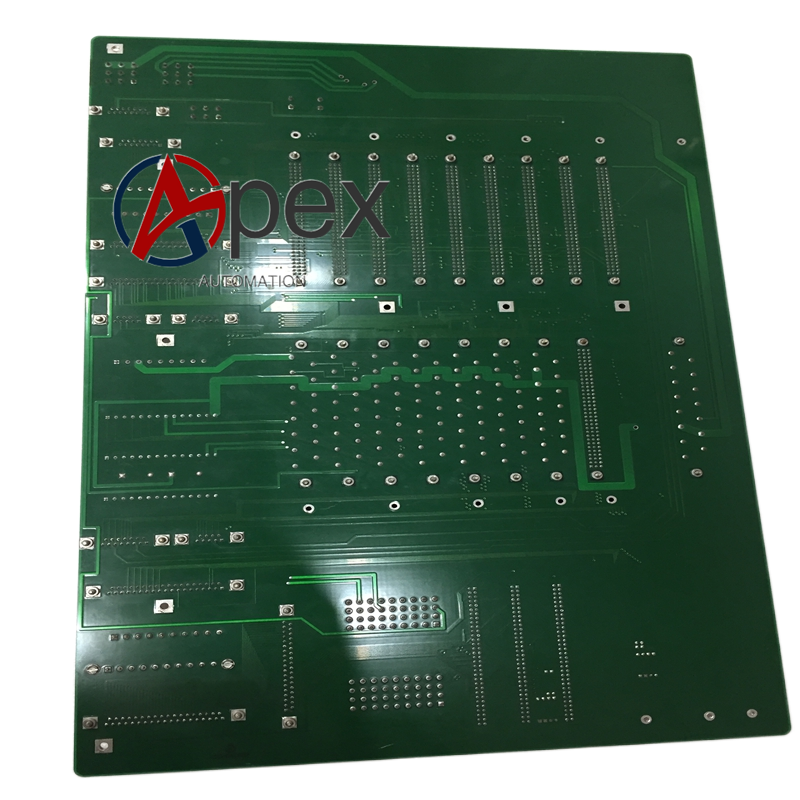

Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal filtering, isolation and level conversion assemblies. Conformal protective coating. External wiring terminals and internal plug‑in connectors.

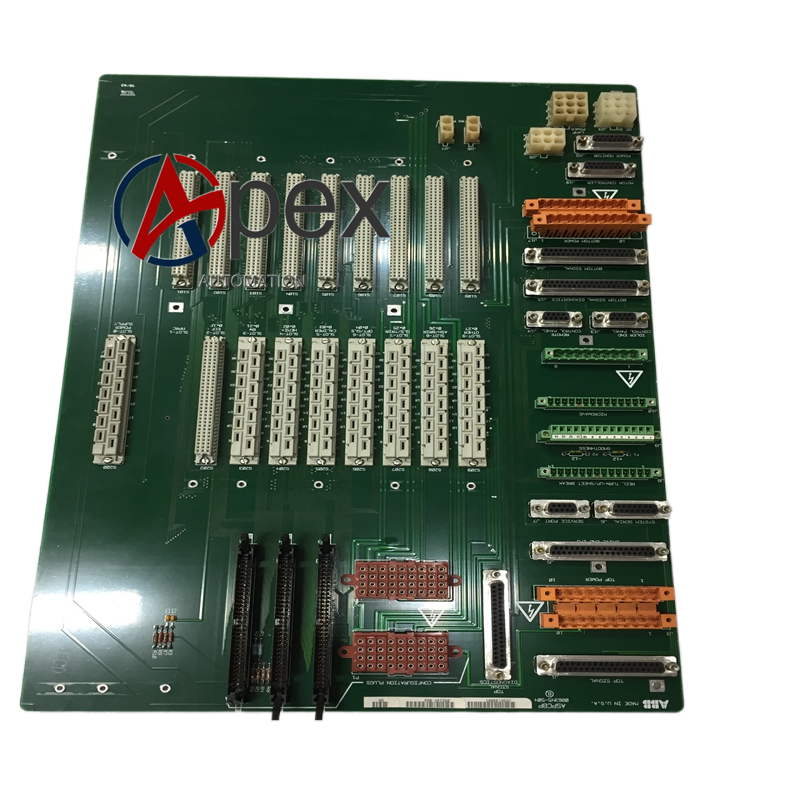

Structural Characteristics Cabinet fixed‑mount circuit board. Equipped with external signal terminals and internal bus connectors. Reserved mechanical fixing holes. Weight approximately 0.46 kilogram.
Working Principle External control and feedback signals access the board through external terminals. Internal circuit completes filtering and isolation processing. Valid signals are transmitted to drive main controller via internal connectors. Diagnosis circuit continuously monitors operating status of each signal channel.
Installation Requirements Completely cut off drive cabinet main power and auxiliary power before replacement. Secure 086345‑004 to specified cabinet mounting position. Complete external signal wiring and internal connector connection. Restore power supply, verify command reception and signal feedback performance.
Usage Notes Apply anti‑static protection during handling. Separate signal cables from high‑voltage power cables. Do not scratch conformal coating. Verify complete drive control functions after board replacement.
