Technical Specifications Backplane power supply. Multi-channel digital output. Transistor or relay contact output. Group isolation. Operating temperature:0°C ~ +60°C.
Functional Features Discrete on-off control signal output. Overload and short-circuit protection. LED channel status indication. Hot swap capability.
Application Scenarios Process industry valve interlock, motor auxiliary control, alarm lamp and solenoid valve driving.
Performance Parameters Reliable switching output, built-in load protection. Operating temperature:0~+60°C.

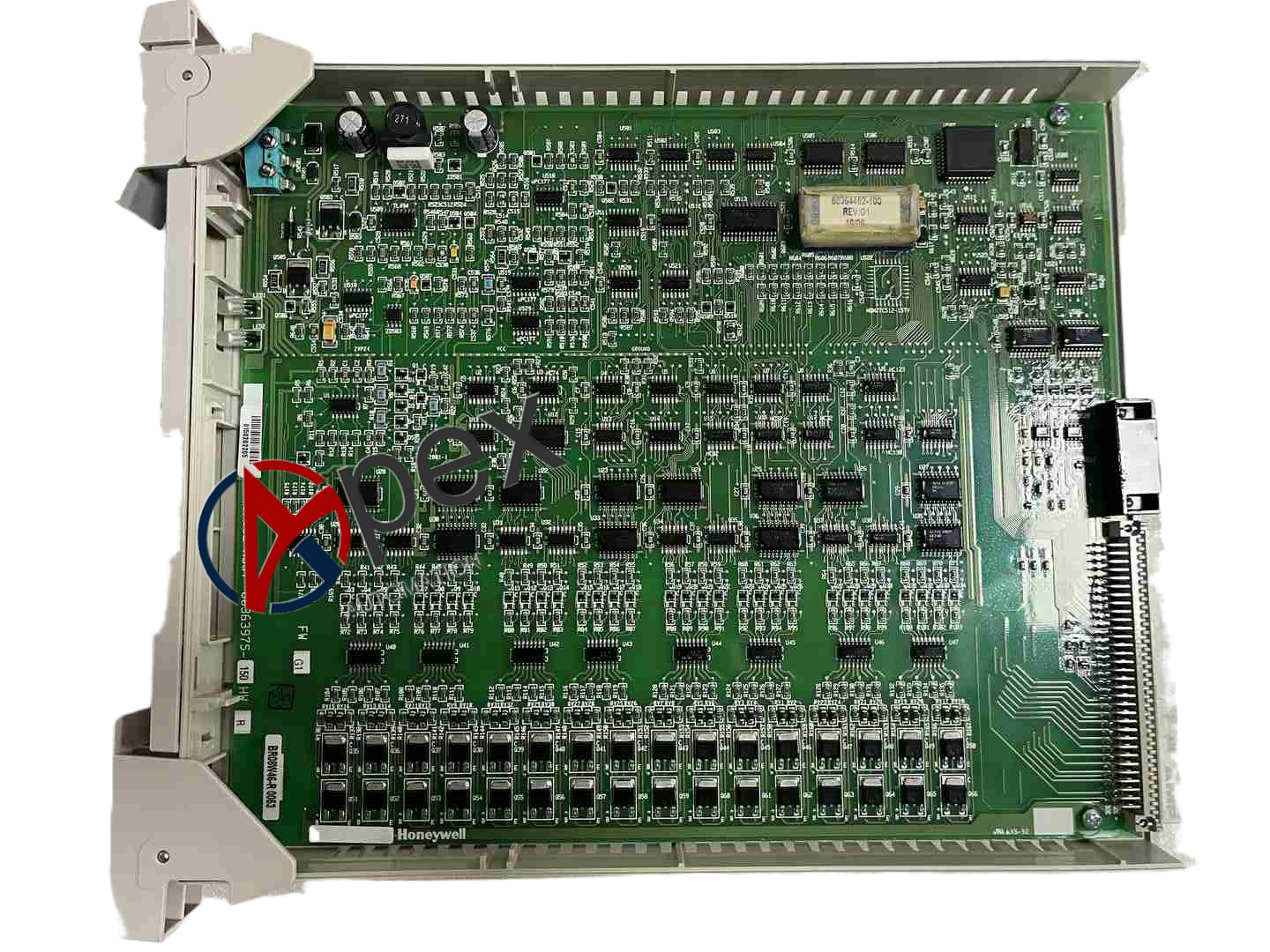

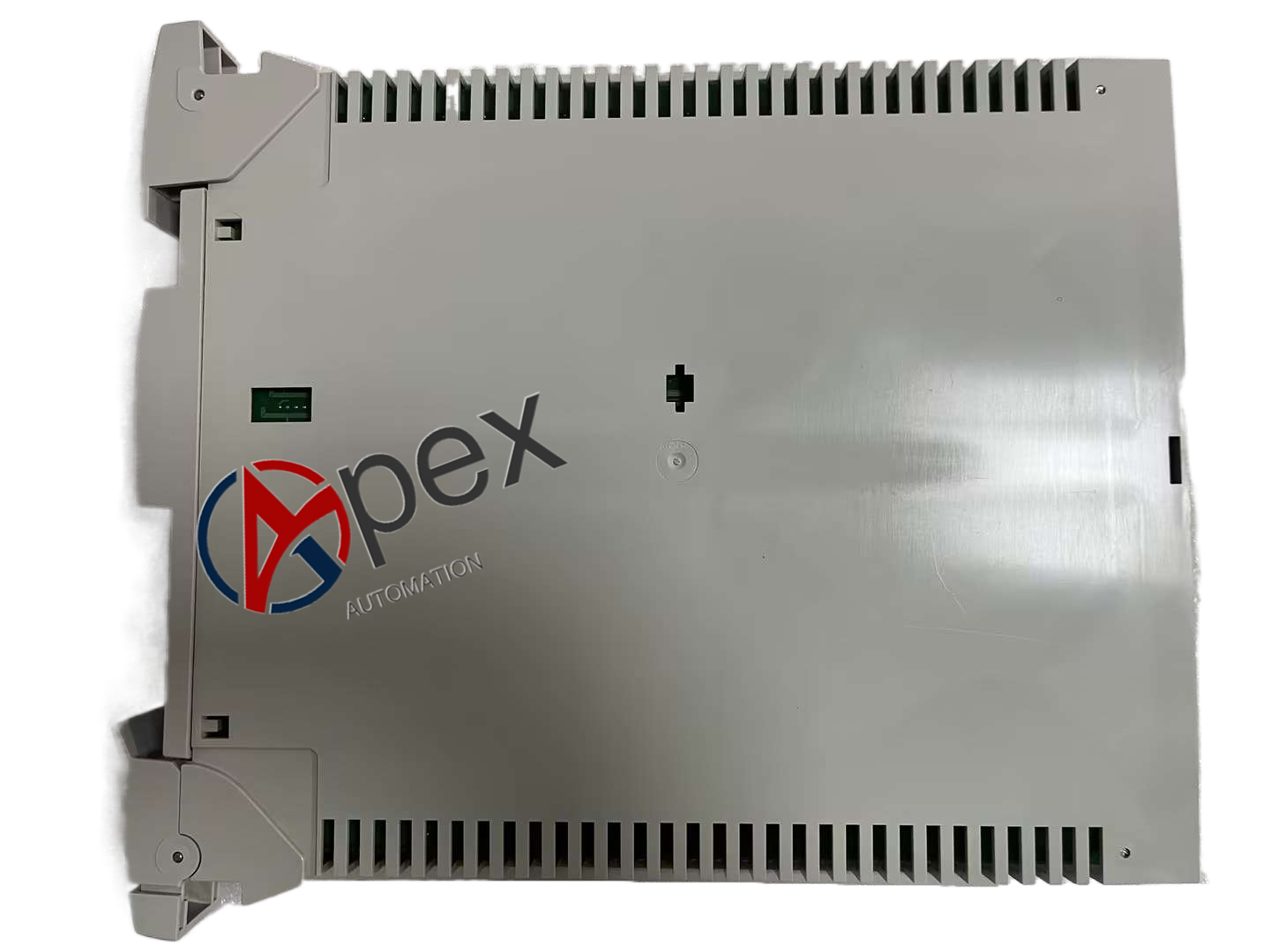

Structural Characteristics Rack plug-in module, front terminal block for field load wiring, backplane bus connector, output drive circuit.
Working Principle Receive logic commands from C200 controller, switch each output channel to turn on or off, actuate field solenoid valves and relays according to control interlock requirements.
Installation Requirements Install into C200 I/O rack. Connect field load wiring. Download hardware configuration to DCS system.
Usage Notes Do not exceed rated load per channel. Add surge suppression for inductive loads.
