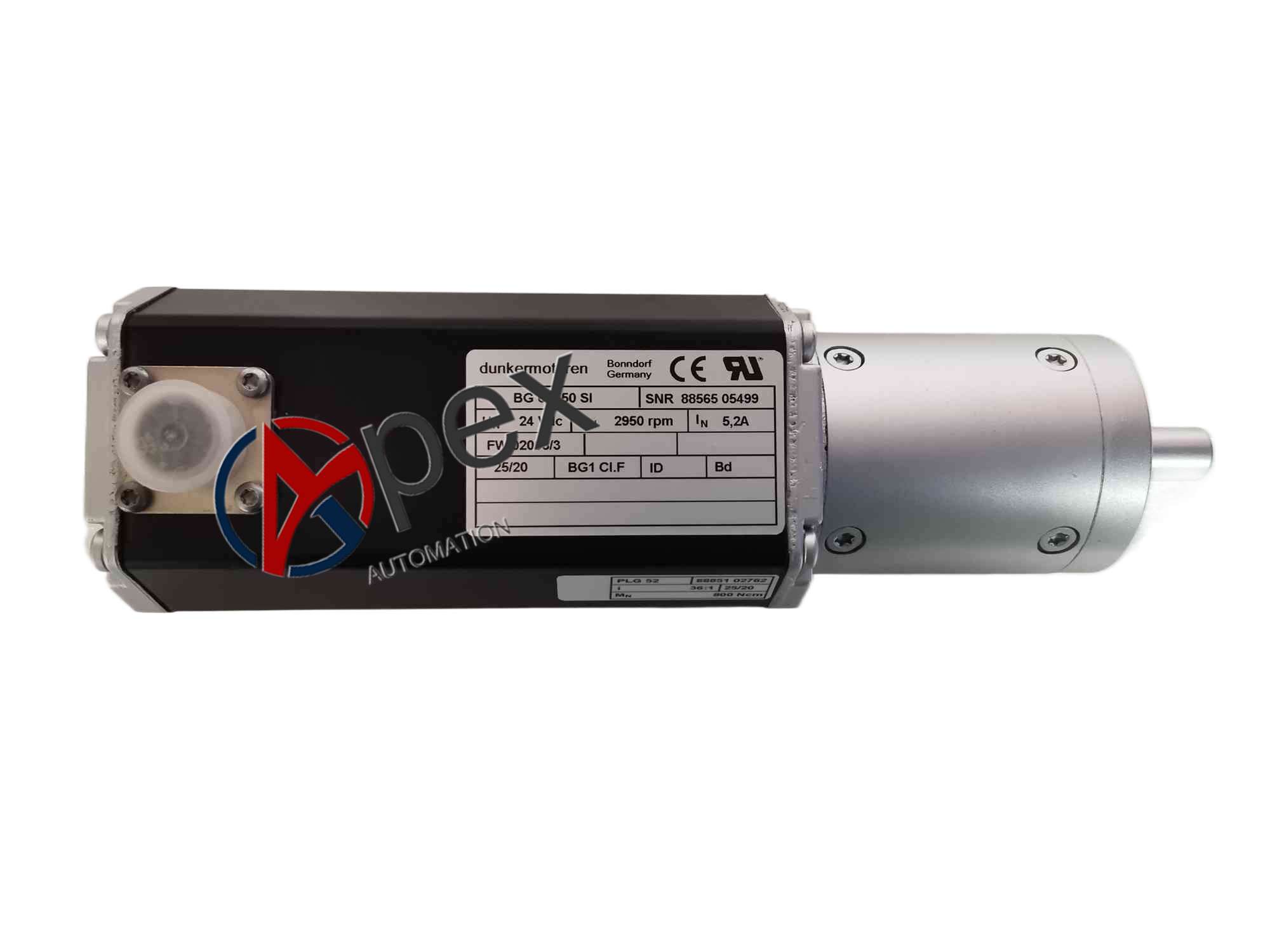

Technical Specifications Power supply: 24V DC. Frame size 65mm. Integrated hall sensor feedback. Operating temperature: -20°C ~ +50°C.
Functional Features Brushless construction for long service life. Built-in position feedback. Low vibration and low noise. High torque density. Compact mechanical structure.
Application Scenarios Packaging machinery, automated handling systems, conveyor drives, valve actuators and precision positioning equipment.
Performance Parameters Rated speed range 0~4500rpm. Continuous torque stable output. Operating temperature: -20°C ~ +50°C.
Structural Characteristics Aluminum alloy motor housing, output shaft, built-in hall sensor assembly, multi-pin wiring connector.
Working Principle The drive unit sequentially energizes stator windings according to rotor position signals from hall sensors, generating rotating magnetic field to drive rotor rotation and realize closed-loop speed control.
Installation Requirements Mount the motor firmly on mechanical bracket. Align coupling properly. Connect power and feedback cables to matching servo drive.
Usage Notes Avoid shaft overload and locked-rotor operation. Check bearing condition regularly. Prevent dust and moisture ingress into motor housing.
