Technical Specifications Back‑plane DCS system bus interface. Field‑bus physical communication port. Auxiliary power 24 V DC, typical power consumption 3.3 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Field‑bus channel signal galvanic isolation.
Functional Features Communicates with DCS main controller via back‑plane system bus. Executes field‑bus data frame receiving, parsing, packaging and sending. Collects measurement data and status information from field‑bus field instruments. Transmits controller configuration and control commands to connected field devices. Front‑panel LED indicators display field‑bus link status and module fault alarm. Built‑in hardware self‑diagnosis detects bus communication abnormality and internal circuit faults.
Application Scenarios Field‑bus interface spare part for ABB Freelance DCS control rack. Widely used in chemical, power plant automation projects adopting field‑bus intelligent instruments.
Performance Parameters Stable field‑bus data transmission performance. Multi‑device concurrent data processing capacity. Reliable bus fault diagnosis function.

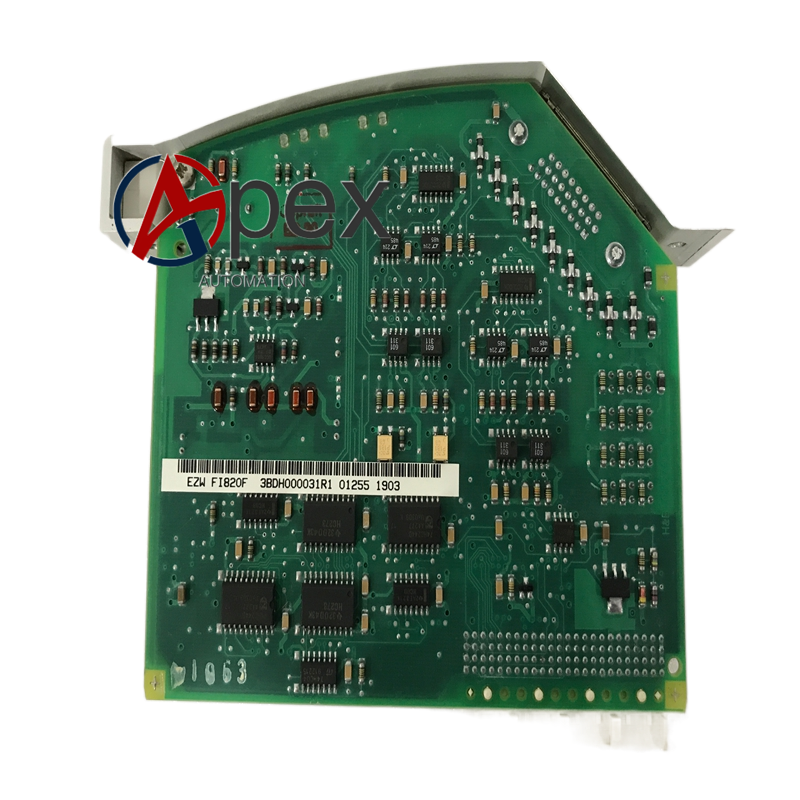

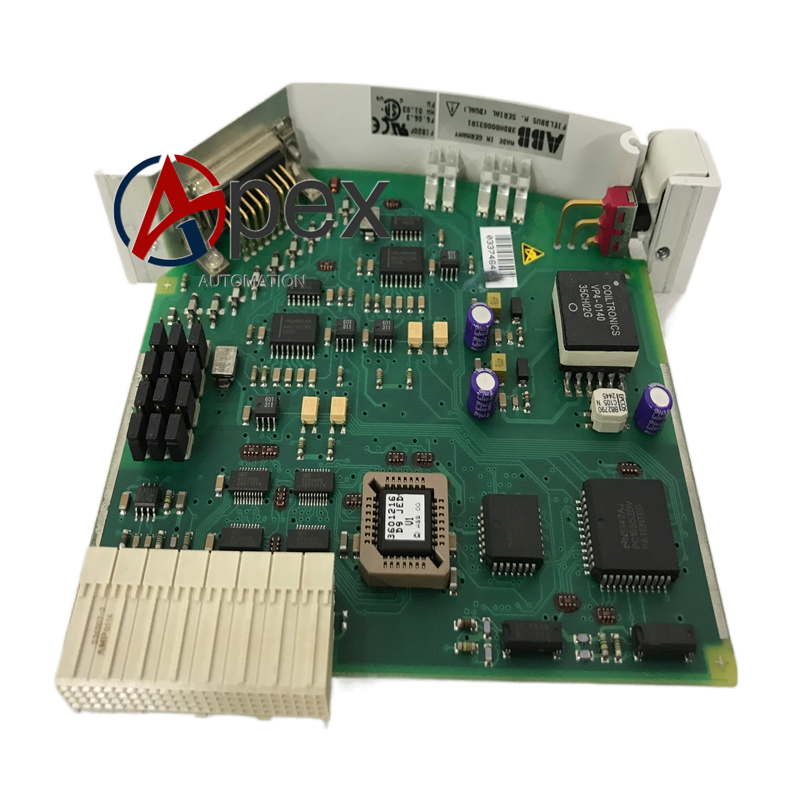

Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Field‑bus protocol processing chip and signal isolation assemblies. Back‑plane plug‑in connector and field‑bus signal terminals.

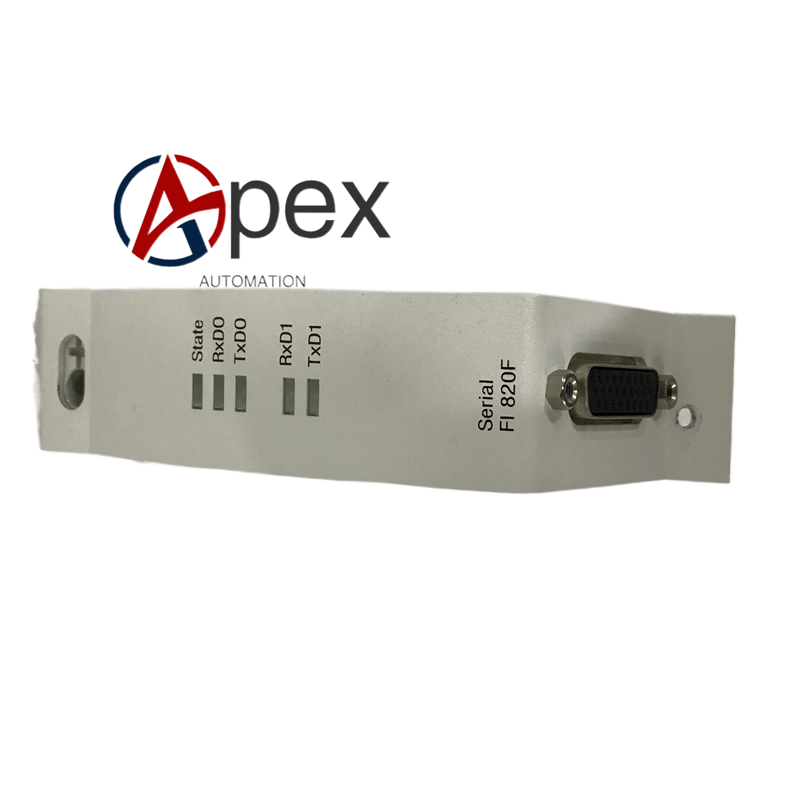

Structural Characteristics Standard DCS rack plug‑in module. Front side fitted with field‑bus signal terminals and status LED indicators. Rear side equipped with back‑plane bus connector. Weight approximately 0.31 kg.
Working Principle After power‑on initialization, module establishes communication with field‑bus connected instruments. Diagnosis circuit monitors bus signal quality and module hardware operating state continuously.
Installation Requirements Ensure back‑plane connector is fully engaged. Restore power supply, complete field‑bus device configuration and verify data interaction between DCS and field instruments.
Usage Notes Follow field‑bus wiring specification for cable laying and termination resistor configuration. Use shielded communication cable to reduce external interference. Hot‑plug operation under powered condition is prohibited. Check field‑bus device online status after module replacement.
