Technical Specifications Multiple analog and digital signal channels. Internal working power supplied by equipment power unit. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Partial channel signal isolation protection.
Functional Features Realizes signal conditioning, level matching and signal transmission between internal hardware modules. Provides stable signal interconnection path for multi‑group internal signals. On‑board test points support signal inspection during maintenance. Transmits partial fault status signals to main control unit.
Application Scenarios Replacement spare board for ABB special industrial automation equipment. Used for internal hardware fault overhaul of corresponding equipment model.
Performance Parameters Low‑distortion signal transmission performance. Stable long‑term continuous working characteristic. Reliable signal interconnection capacity.

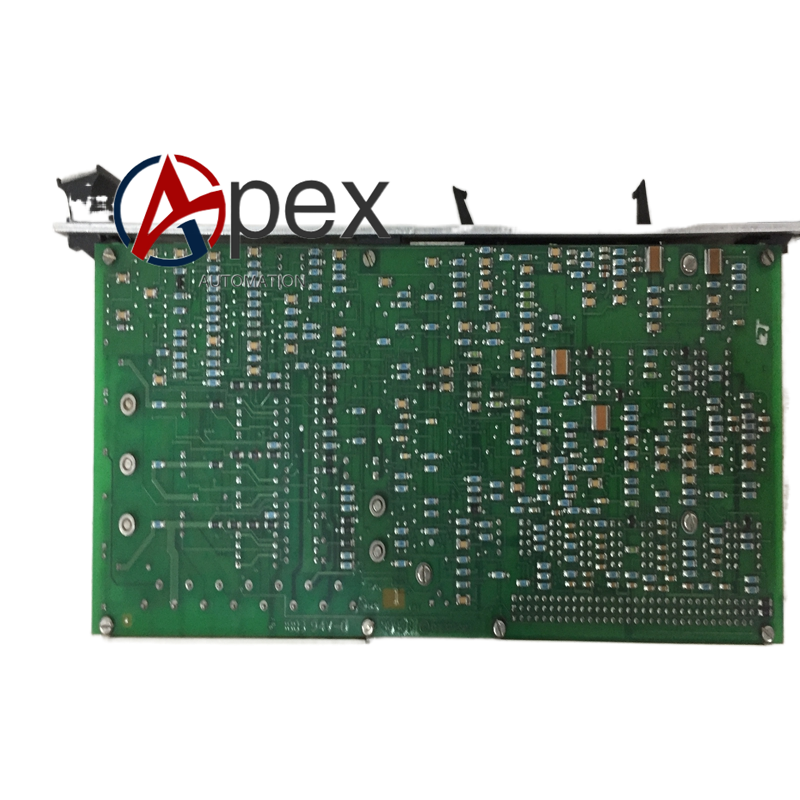

Material Composition Multilayer glass‑fiber epoxy printed circuit board. Signal conditioning components, connector sockets and metal fixing hardware. Circuit surface adopts conformal anti‑corrosion coating.
Structural Characteristics Irregular shape circuit board matching equipment internal installation space. Multiple multi‑pin connectors distributed on board edges. Reserved screw mounting holes for cabinet fastening.
Working Principle Signals from upstream hardware units enter the board through connectors. After signal conditioning and level adaptation processing, signals are output to downstream functional units via corresponding connectors. Status feedback signals are transmitted back to main control unit through dedicated signal paths.
Installation Requirements Fully cut off total power supply of host equipment before replacement. Adopt anti‑static measures during handling. Fasten ECS086329‑003 to designated cabinet position with screws. Insert all matched multi‑pin connectors completely. Restore equipment power supply, execute equipment self‑check and verify signal transmission between related functional units.
Usage Notes Anti‑static operation is mandatory during disassembly and installation. Each connector must be aligned correctly to avoid pin damage. Hot‑plug under powered state is prohibited. Check equipment self‑check result after board replacement.
