Technical Specifications Working power 24 V DC. Multi‑channel analog and digital signal interfaces. Internal communication bus for drive unit. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95. Built‑in signal surge suppression circuit.
Functional Features Receives external set‑point commands and motor feedback signals. Executes drive control algorithm and generates switching control signals for power modules. Realizes fault signal collection and status feedback of the whole drive unit. On‑board LED indicators display running state and fault codes. Built‑in hardware self‑diagnosis detects circuit and signal channel faults.
Application Scenarios Spare control board for ABB high‑power industrial frequency converters. Applied in metallurgy, water treatment and manufacturing drive equipment maintenance.
Performance Parameters High‑speed real‑time signal processing capability. Stable long‑term continuous operation performance. Accurate drive fault detection response.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Surface‑mount integrated chips, signal conditioning assemblies and connector terminals. Metal fixing hardware. Conformal coating protection for circuit surface.

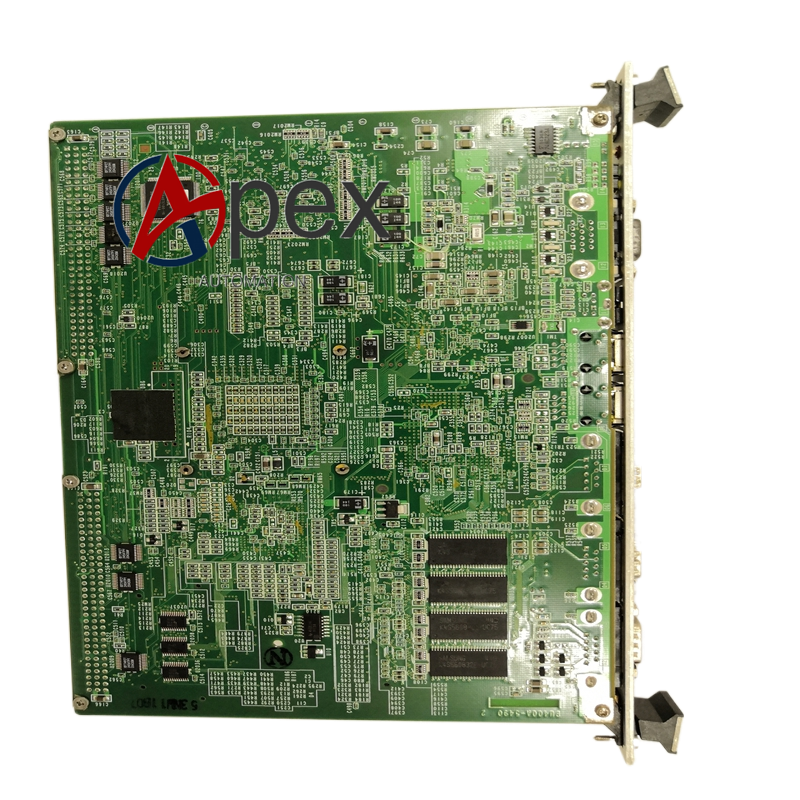

Structural Characteristics Flat rectangular circuit board structure. Multiple signal and power connectors distributed on board edges. Mounting holes for screw fastening inside drive cabinet.
Working Principle Internal chip completes algorithm calculation and outputs pulse control signals to power semiconductor units.
Installation Requirements Wear anti‑static wrist strap during handling. Fasten DVE‑68650 to designated position inside cabinet with screws. Plug all matching signal and power connectors firmly. Restore power supply, download drive parameter set and verify motor running performance.
Usage Notes Strict anti‑static protection must be followed during installation and replacement. Confirm all connectors are fully seated before power‑on. Hot‑plug operation under powered condition is prohibited.
