Technical Specifications High‑density multi‑channel digital input, rated input 24 V DC. Back‑plane controller bus interface. Auxiliary power 24 V DC, typical power consumption 4.0 W. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, non‑condensing relative humidity 5%‑95%. Group‑wise channel galvanic isolation.
Functional Features Acquires multi‑group on‑off status of field 24 V DC digital contact signals. Completes signal isolation and level conversion. Transmits all‑channel status data to main controller via back‑plane bus. Front‑panel LED indicators show status of each channel group. Built‑in hardware self‑diagnosis detects internal circuit abnormality.
Application Scenarios High‑density digital input spare part for ABB Advant DCS system. Used for automation cabinets with abundant discrete signal points.
Performance Parameters Parallel multi‑point signal acquisition performance. Reliable signal isolation processing. Stable bus data uploading capability.
Material Composition Flame‑retardant plastic module housing. Multilayer glass‑fiber epoxy printed circuit board. Multi‑channel signal isolation and level conversion assemblies. Back‑plane plug‑in connector and field signal terminals.

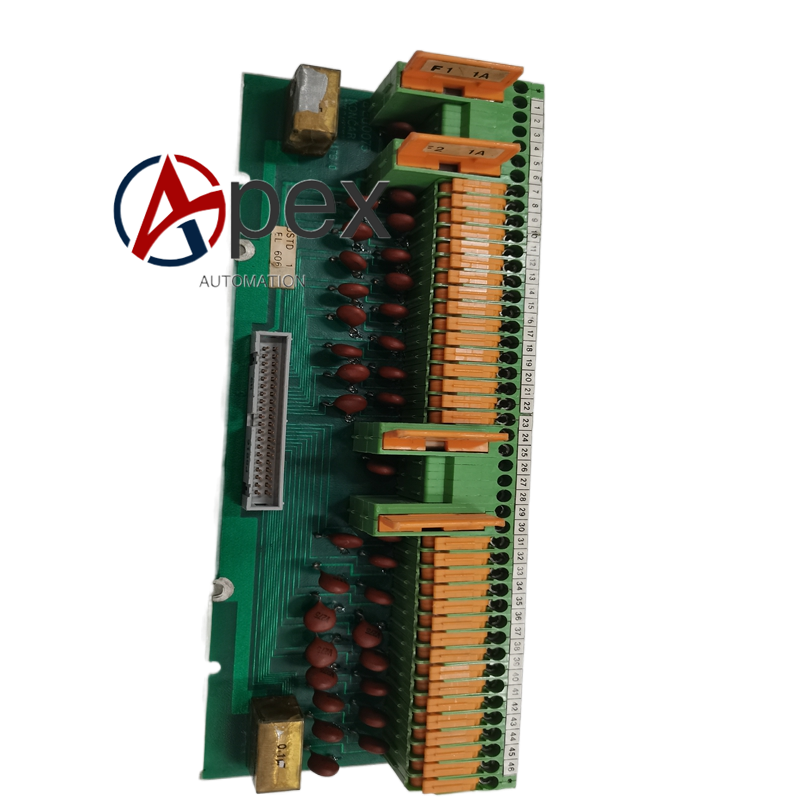

Structural Characteristics Standard rack plug‑in module. Front side equipped with multi‑point field signal terminals and channel‑group status LED indicators. Rear side fitted with back‑plane bus connector. Weight approximately 0.39 kg.
Working Principle Field discrete digital signals access each channel terminal. Internal isolation circuit converts raw signal level into bus‑identifiable data. All‑channel status information is encoded and uploaded to controller through back‑plane bus. Diagnosis circuit monitors module hardware operating state continuously.
Installation Requirements Disconnect rack auxiliary power before replacement. Insert DSTD150 into target rack slot and lock fixing latch. Connect field multi‑channel digital wiring to front‑end terminals. Confirm back‑plane connector is fully engaged. Restore power supply, verify input response of all signal channels.
Usage Notes Avoid over‑voltage surge damaging input channels. Arrange field wiring according to terminal definition. Hot‑plug operation under powered condition is prohibited. Verify input function of all signal points after installation.
