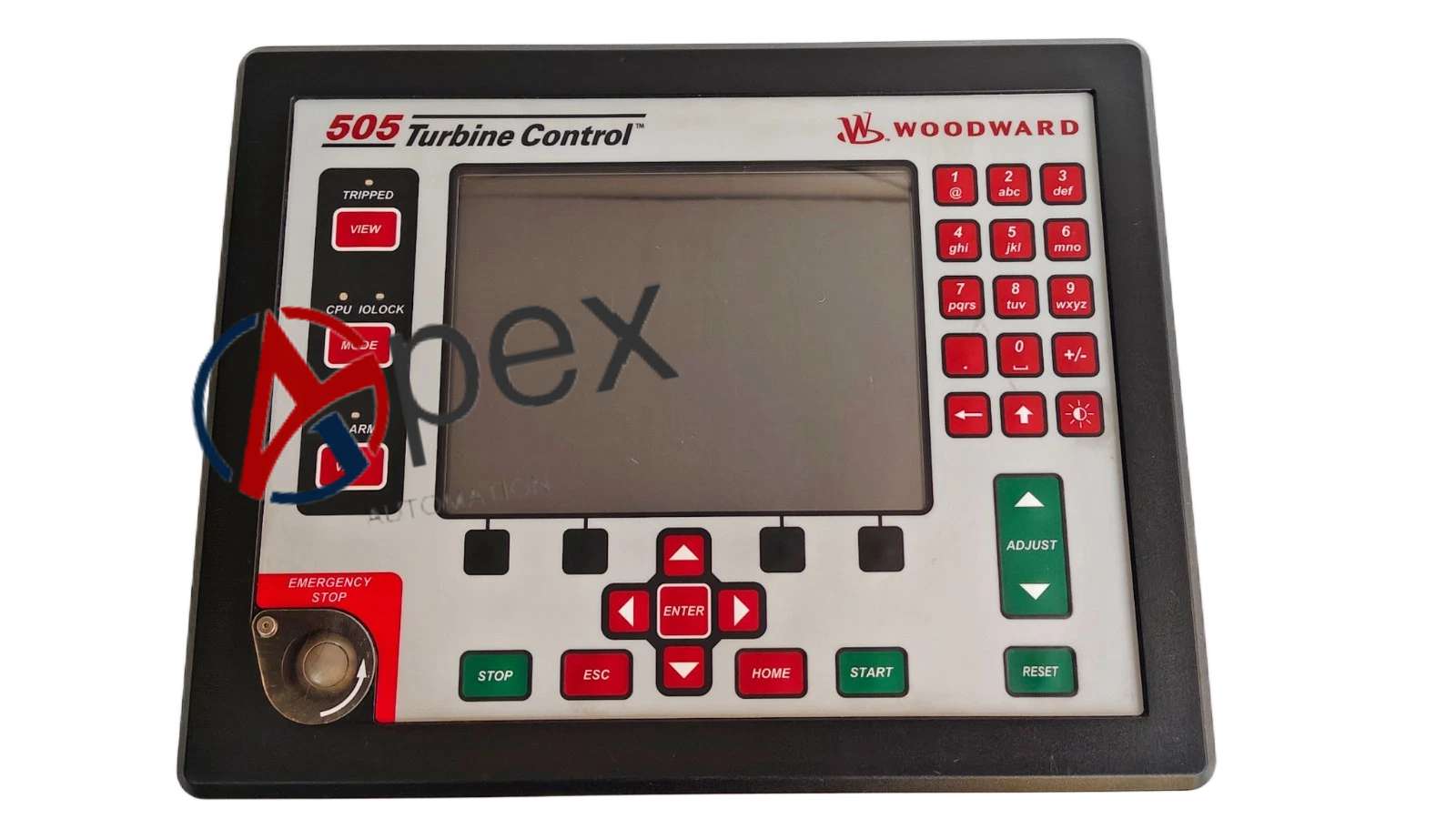

Technical Specifications Governor: 505XT enhanced digital governor, 18–32 V DC, 16-bit control resolution; speed interface: 8200-1311 dual-channel, 10 Hz–20 kHz per channel; analog output: 4–20 mA; communication: Modbus RTU; operating temperature: -40 °C to +70 °C; enclosure: IP20.
Functional Features Dual redundant speed sensing; enhanced PID control algorithm; speed signal fault detection and automatic switchover; advanced diagnostic functions; soft start and load sharing; overspeed and underspeed protection.
Application Scenarios Critical engine generator sets, standby power generation systems, critical pump and compressor drives, high-availability engine control.
Performance Parameters Steady-state speed regulation: ±0.25% of setpoint; speed channel switchover time: < 10 ms; transient response: < 250 ms for 10% load step; fault detection time: < 20 ms.
Material Composition Flame-retardant plastic enclosure, enhanced control processor board, dual-channel speed interface circuit, analog output drivers, gold-plated terminals.
Structural Characteristics Integrated governor and speed interface assembly; front panel status and fault LEDs; rear terminal blocks for all wiring; standard panel mounting footprint.
Working Principle The dual-channel speed interface conditions two independent speed pickup signals. The 505XT controller selects the valid speed signal, executes enhanced speed control algorithms, and outputs a precise control signal to the engine actuator, with automatic failover between speed channels for high availability.
