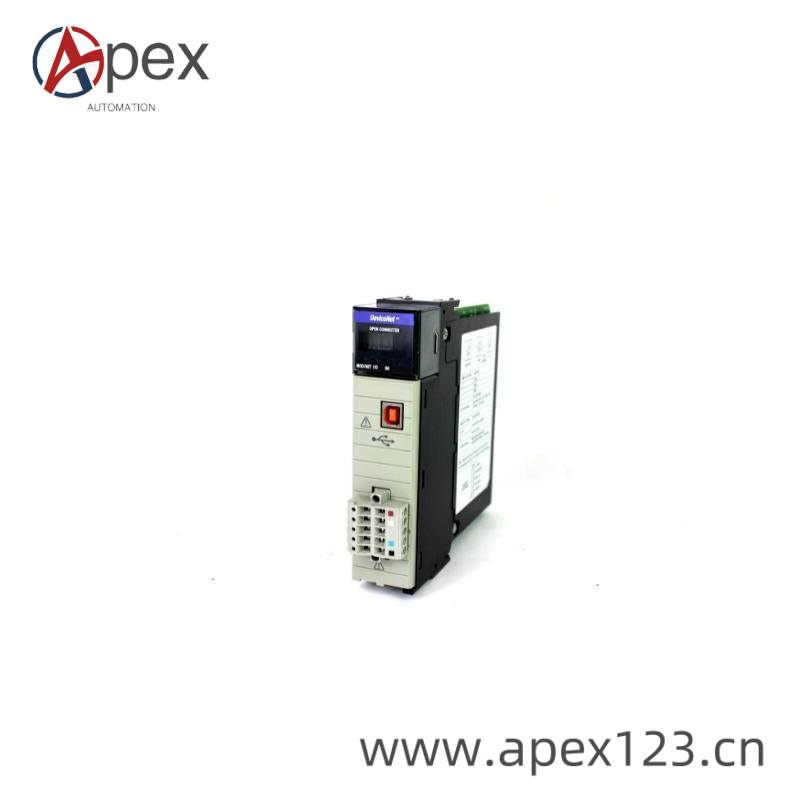

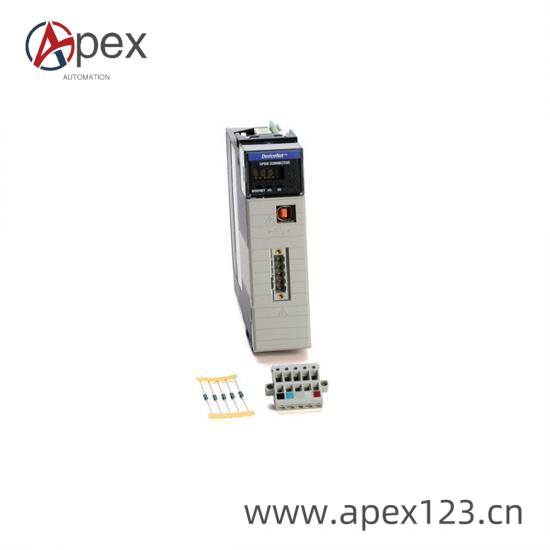

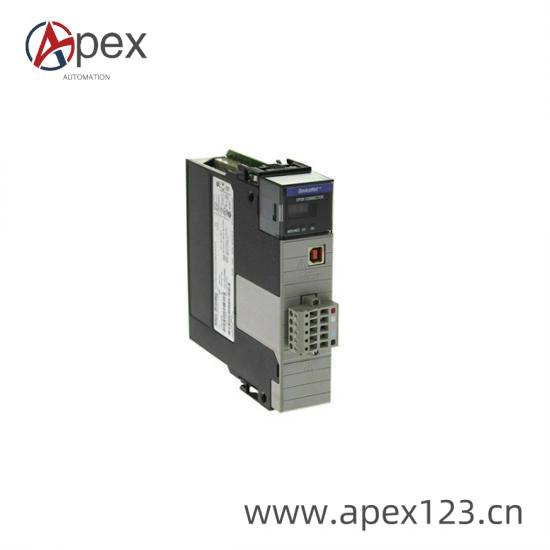

Allen-Bradley 1756-DNB DeviceNet Bridge Module
The Allen-Bradley 1756-DNB DeviceNet Bridge Module enables seamless integration between DeviceNet networks and ControlLogix systems using the Common Industrial Protocol (CIP). This high-performance module is essential for optimizing manufacturing automation processes by facilitating reliable machine-to-machine communication in demanding industrial environments.
Technical Specifications
| Brand | Allen Bradley |
| Model | 1756-DNB |
| Protocol | Common Industrial Protocol (CIP) |
| Data Rate | 500 kbps |
| Voltage | 24 VDC |
| Dimensions | 170 x 100 x 50 mm |
| Weight | 1 kg |
| Temperature Range | -40°C to +85°C |
Applications & Key Features
Designed for harsh industrial environments with NEMA 6P/IP66 rating, this module excels in automotive manufacturing, material handling systems, and process control applications. Its compact design enables flexible mounting in control cabinets while maintaining 500 kbps data transfer speeds. The 1756-DNB seamlessly integrates with ControlLogix processors like 1756-L7x series and supports DeviceNet scanners including 1771-SDN and 1784-PCD.
- Robust CIP communication for real-time control
- Plug-and-play integration with ControlLogix chassis
- Minimal power consumption (2W) with thermal protection
- Vibration-resistant construction for heavy machinery
Why Choose Apex Automation?
Founded in 2014, Apex Automation specializes in industrial automation solutions with ready-to-ship equipment. Our technical experts provide personalized pre-sales consultation to ensure perfect system compatibility. All products include 1-year comprehensive warranty with dedicated technical support. Can’t find your required model?
Contact us via WhatsApp for custom sourcing solutions.
Actual pricing and delivery options available upon request at anikaqx@gmail.com
