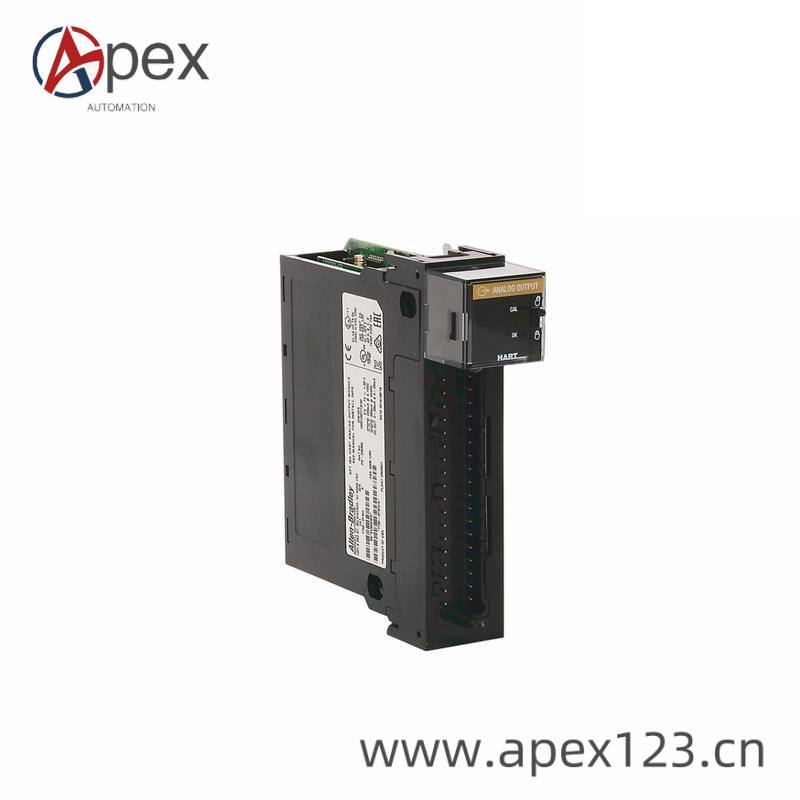

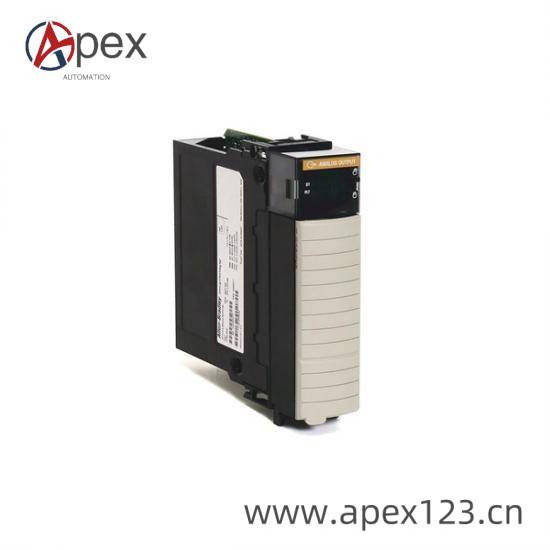

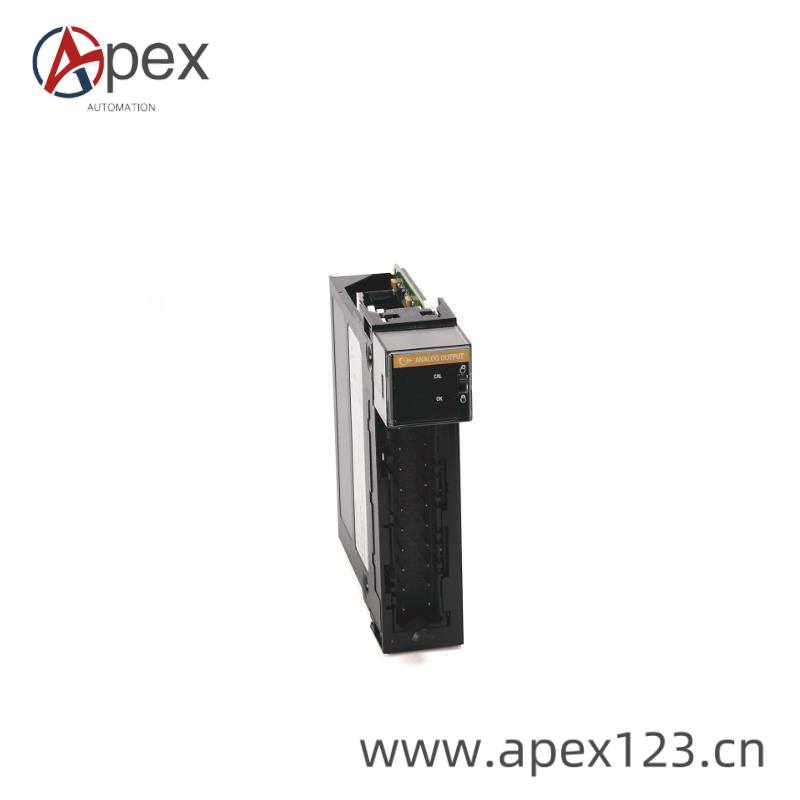

Allen-Bradley 1756-OF8 Analog Output Module
The Allen-Bradley 1756-OF8 Analog Output Module delivers precise analog signal control for industrial automation systems. Engineered for process control and manufacturing applications, this robust module ensures accurate signal transmission in demanding environments like chemical processing, power generation, and assembly lines. Its industrial-grade construction maintains stable operation under extreme temperatures and harsh conditions.
Technical Specifications
| Attribute | Specification |
| Model Number | 1756-OF8 |
| Brand | Allen-Bradley |
| Output Type | Analog |
| Output Channels | 8 |
| Operating Voltage | 24 VDC |
| Output Range | 0-20 mA or 0-10 V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of F.S. |
| Protection Rating | IP20 |
Integration & Applications
This module seamlessly integrates with ControlLogix systems and is compatible with 1756 series I/O chassis. Typical applications include:
- Process variable control (temperature, pressure, flow)
- Actuator and valve positioning
- Motor speed regulation
- Batch processing systems
Commonly paired with 1756-IB16 digital input modules and 1756-IF8 analog input modules for complete control solutions.
