Technical Specifications Multiple RS232/RS485 serial ports; Support Modbus RTU and other serial protocols; Galvanic isolation.
Functional Features Serial data transceiver; Protocol processing; Communication fault diagnosis; Data buffering.
Application Scenarios Communication with instruments, weighing devices, barcode readers and other serial equipment connected to RX3i PLC.
Performance Parameters Configurable baud rate; Support master/slave mode.

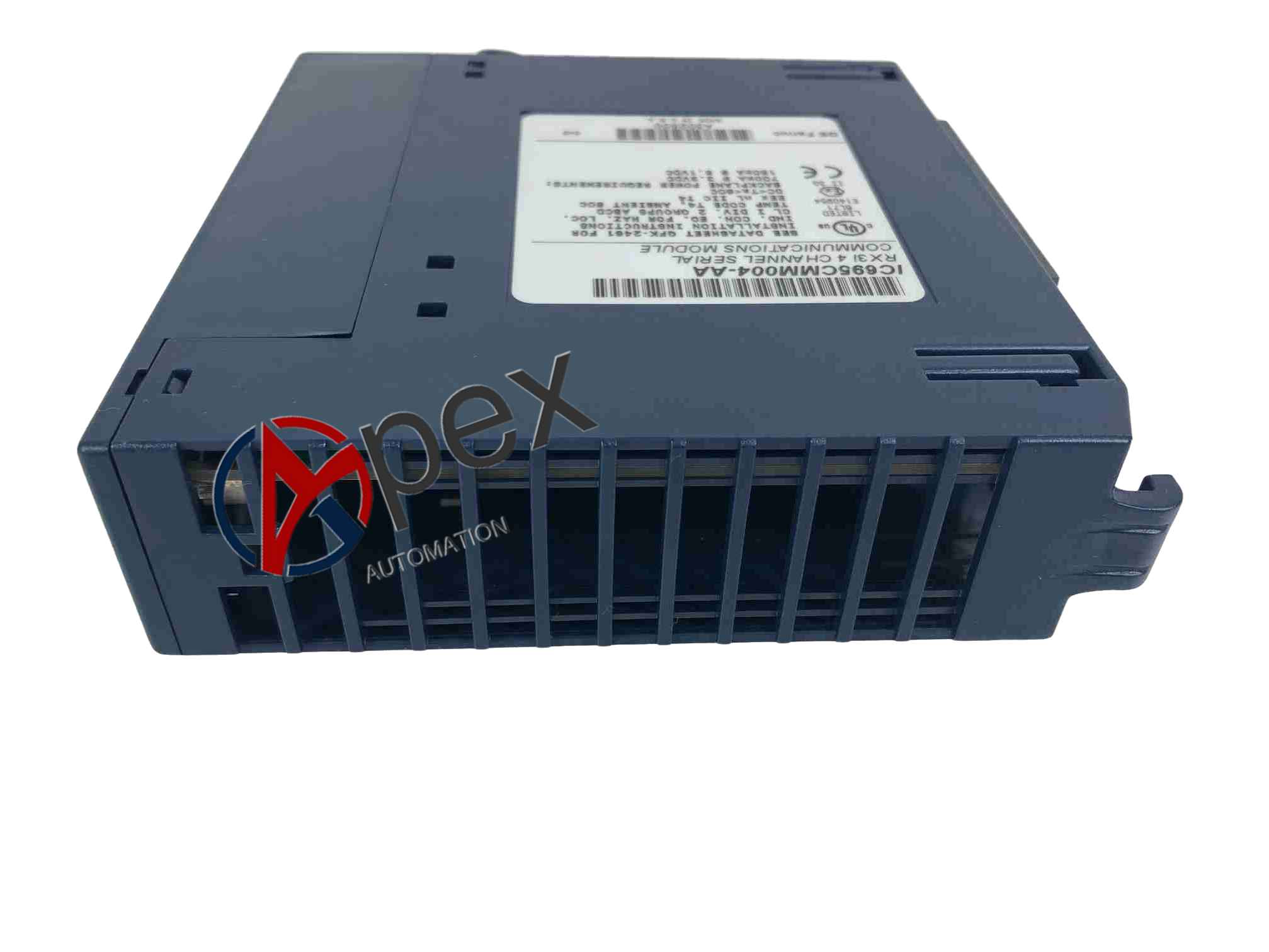

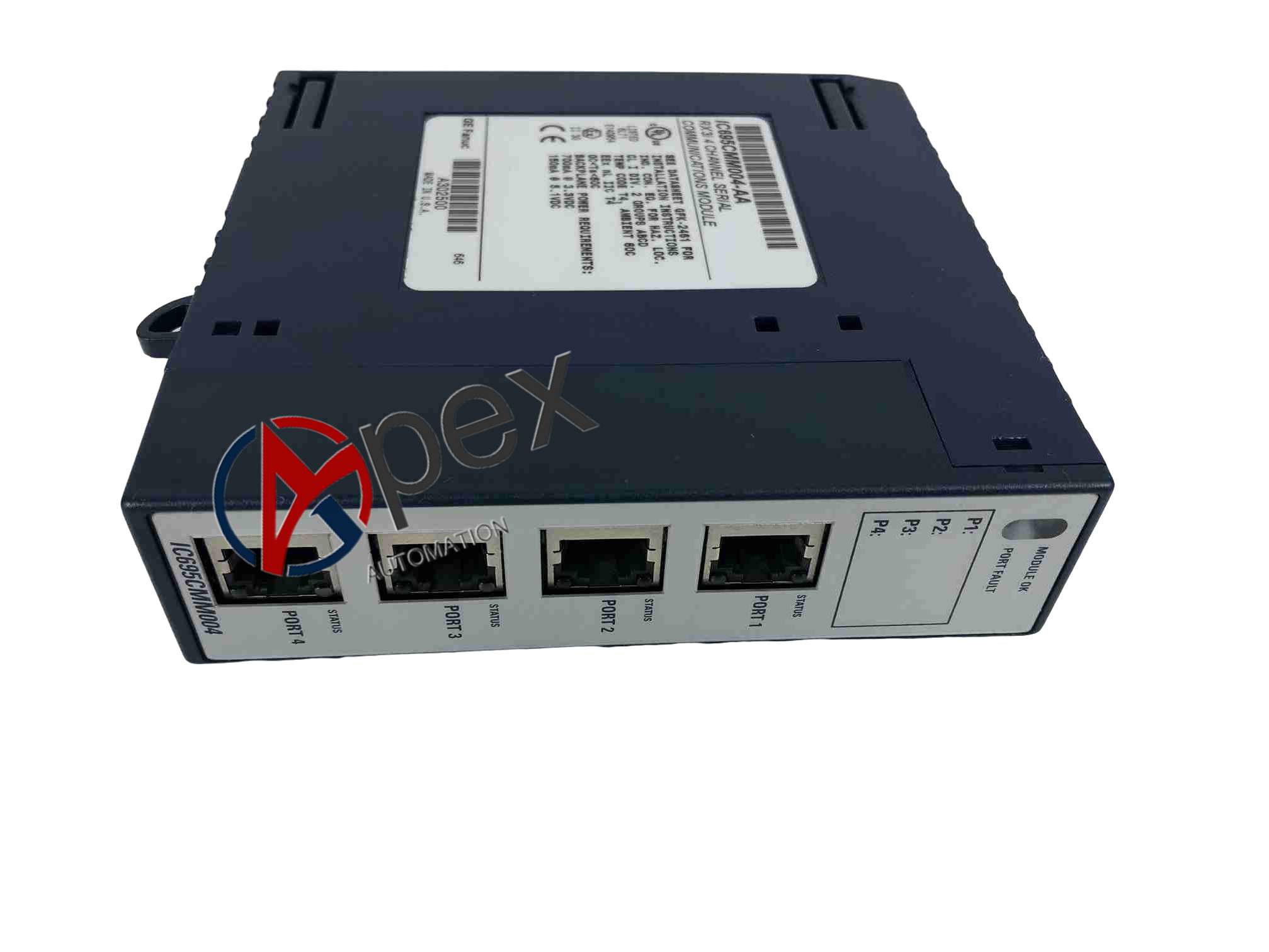

Structural Characteristics RX3i rack pluggable module, serial interface terminals, communication status LEDs.
Working Principle Act as serial gateway between RX3i CPU and external serial devices, convert PLC internal data into serial protocol data and exchange bidirectional information.
Installation Requirements Install on RX3i backplane; Use shielded twisted pair for RS485 bus; Set correct station address.
Usage Notes Match baud rate, parity and data bits with slave devices. Avoid placing near high frequency interference sources.
