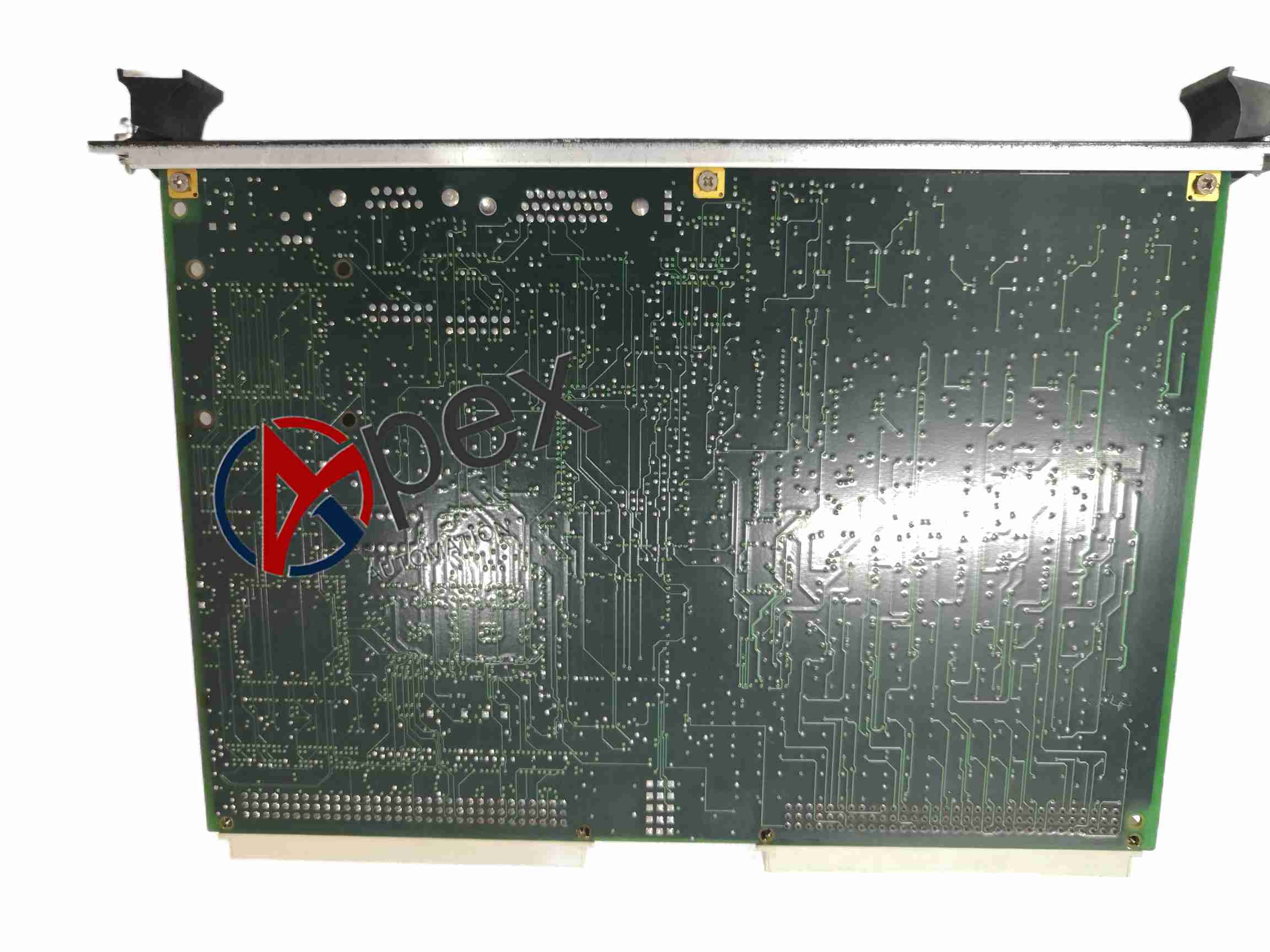

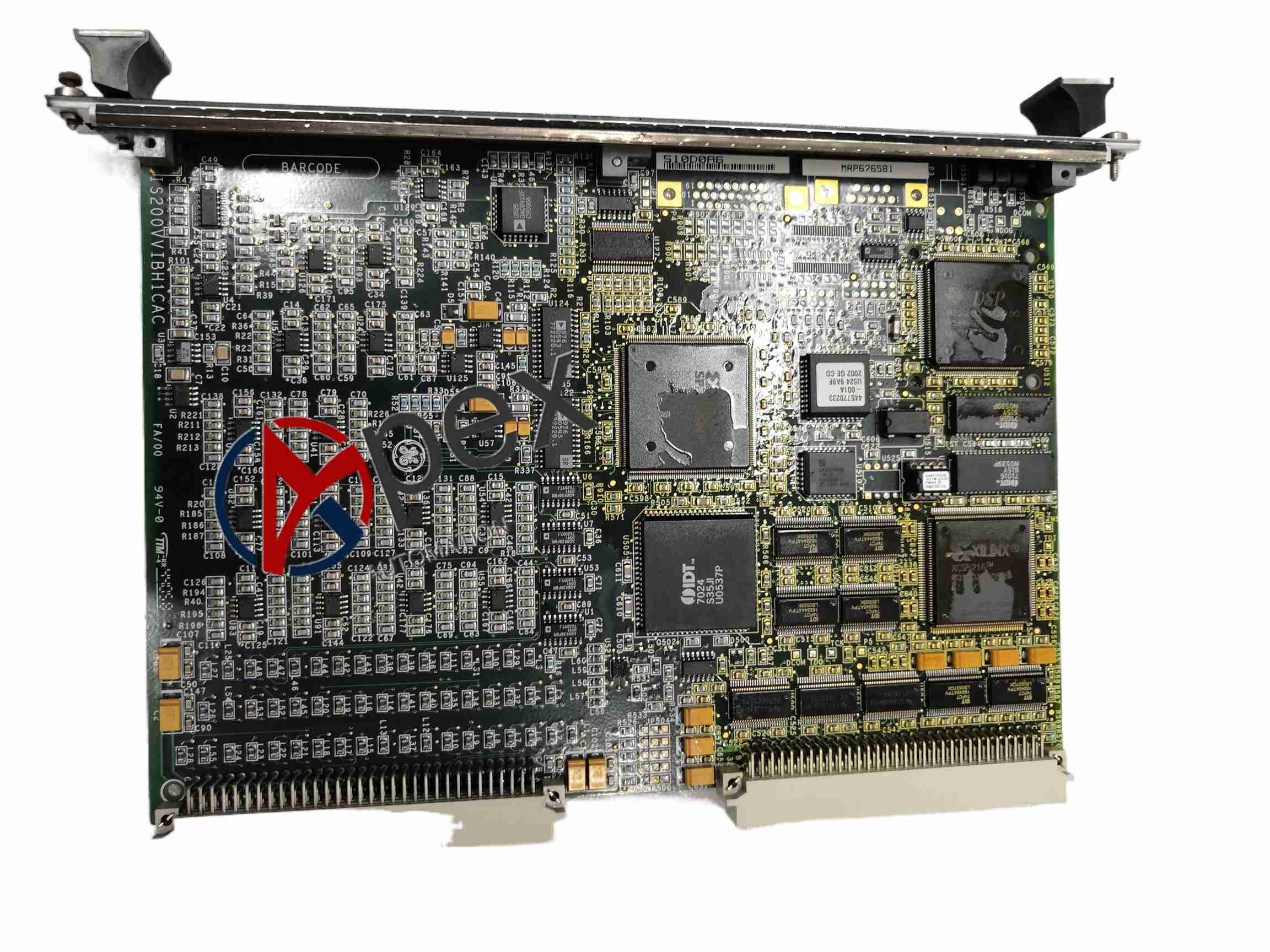

GE IS200VVIBH1CAC Vibration Monitoring Board

Technical Specifications Mark VI system; Vibration signal input; Signal conditioning; High speed sampling circuit; Rack pluggable.

Functional Features Vibration signal acquisition; Signal filtering; Vibration amplitude calculation; Vibration alarm and fault diagnosis.

Application Scenarios Power plant gas turbine, steam turbine and generator shaft vibration monitoring in Mark VI control system.

Performance Parameters High sampling precision; Wide vibration frequency range; Onboard fault detection.

Structural Characteristics Plug-in circuit board, backplane edge connector, probe signal input terminals, status LEDs.

Working Principle Receive raw vibration signal from eddy current probes, filter and sample signal, compute vibration value and send data to Mark VI main controller.

Installation Requirements Install in Mark VI rack; Use shielded cable for vibration probes; ESD protection when handling PCB.

Usage Notes Calibrate vibration channel after installation. Avoid strong electromagnetic interference near probe cables.
