Technical Specifications Multi-channel analog input; Supports 4-20mA signal; Galvanic channel isolation; Operating temperature 0~60°C.
Functional Features Analog signal conditioning; A/D conversion; Channel fault detection; Wire break diagnosis.
Application Scenarios Temperature, pressure and flow signal collection for process monitoring in general industrial process control.
Performance Parameters High measurement accuracy; Built-in signal filtering function.

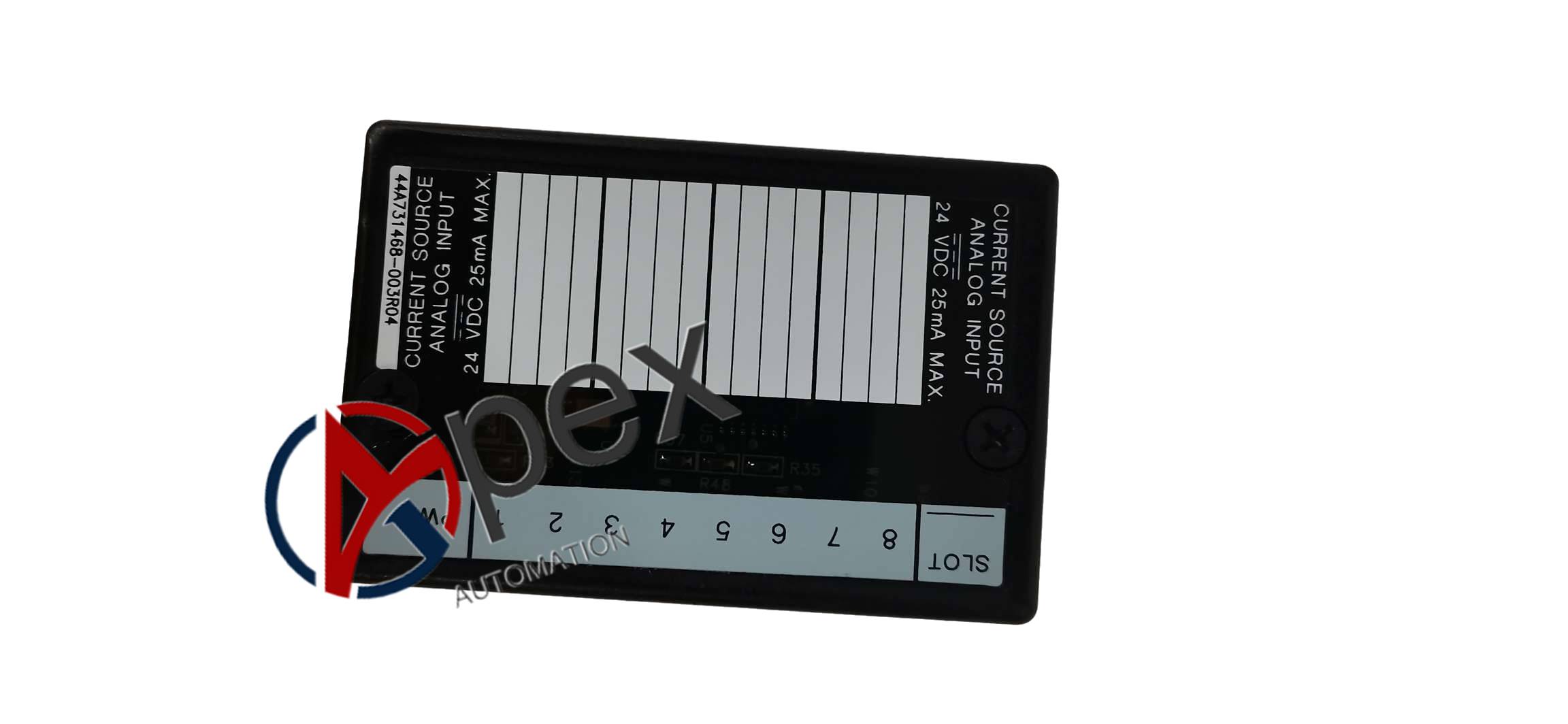

Structural Characteristics Rack mount module, front status LEDs, field analog signal terminal block.
Working Principle Receive analog current signals from field transmitters, convert analog quantity into digital value, and send data to the PLC controller via backplane bus.
Installation Requirements Install on GE Field Control rack; Use shielded twisted pair for analog wiring; Separate analog cable from power cable.
Usage Notes Calibrate module before putting into operation. Check for wire break alarm during routine maintenance.
