Technical Specifications Digital output channels; Genius bus interface; Overload and short-circuit protection; Isolated output design.
Functional Features Digital on-off output control; Output channel fault diagnosis; Protection when overcurrent occurs.
Application Scenarios Control of solenoid valves, contactors, indicators and other discrete field actuators in distributed automation.
Performance Parameters Overcurrent protection for each channel; Fault status feedback to controller.

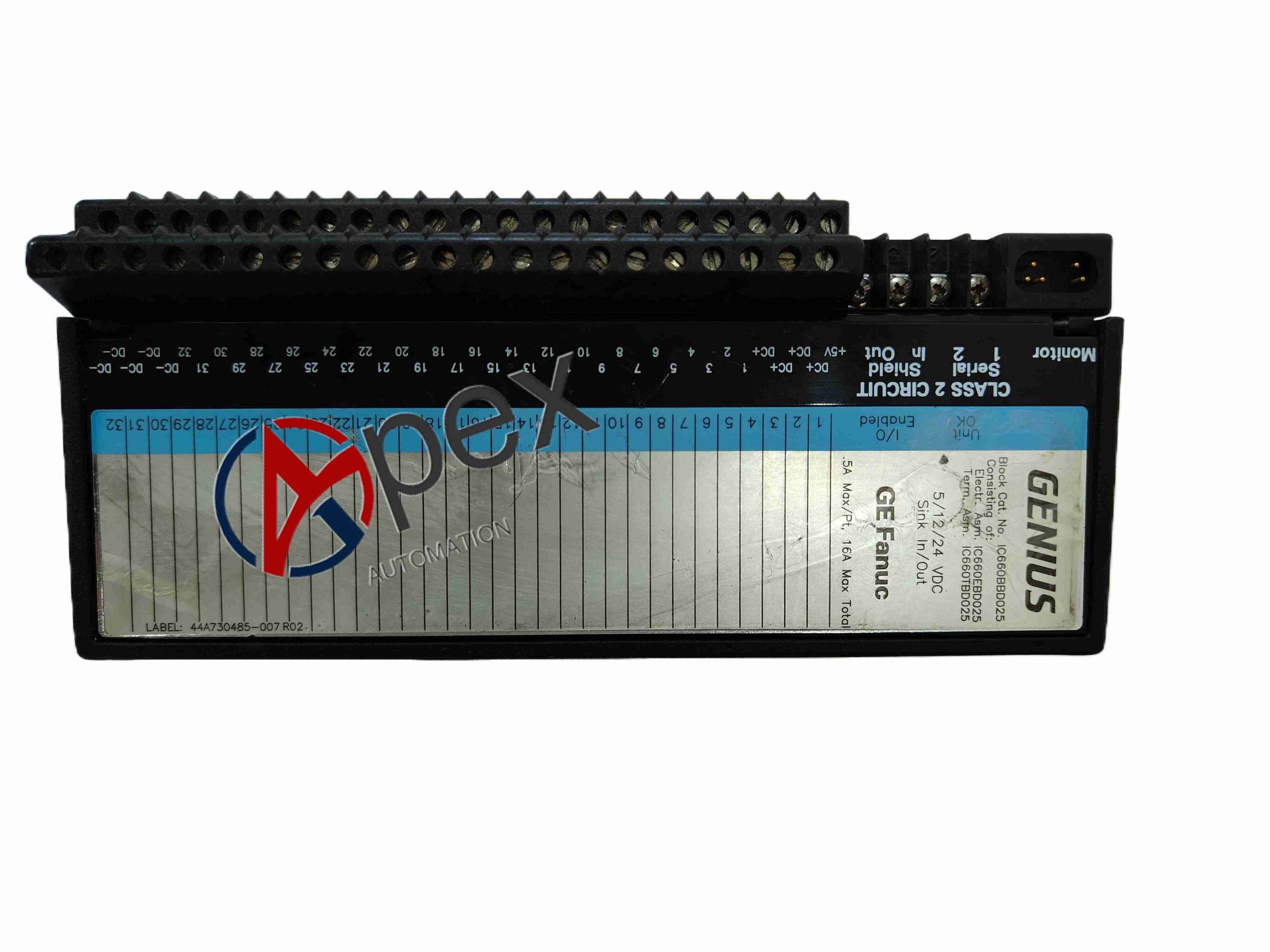

Structural Characteristics Rack pluggable module, front LED indicators for each channel, field output terminals.
Working Principle Receive control instructions from PLC through Genius bus, drive each output channel to on or off state to control field equipment.
Installation Requirements Install on Genius I/O rack; Use proper wire gauge for field actuators; Keep ventilation space.
Usage Notes Do not exceed rated load per channel. Cut off load power before replacing field wiring.
