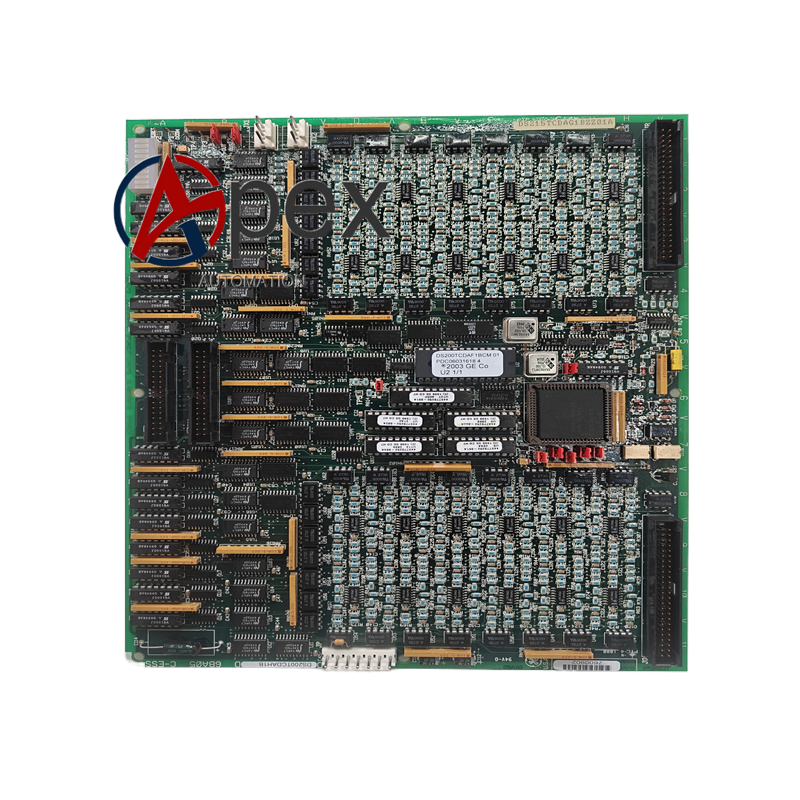

Technical Specifications Mixed analog input and digital output channels, Mark V back‑plane bus connector, auxiliary DC power supplied by chassis back‑plane. Operating temperature 0 ℃ to +60 ℃, storage temperature ‑40 ℃ to +85 ℃, relative humidity 5%‑95% non‑condensing. Conformal coating PCB protection. Mark V plug‑in form factor.
Functional Features Acquires multi‑channel analog feedback signals from field turbine equipment and transducers. Performs analog signal filtering and amplitude conditioning. Receives digital control commands from main CPU and outputs corresponding digital driving signals. Provides hardware surge and short‑circuit protection for signal channels. Supports mixed‑signal channel self‑diagnosis after power‑on.
Application Scenarios Spare replacement mixed‑signal processing board for GE Mark V gas and steam turbine control systems, applied for power plant turbine‑control‑system maintenance and overhaul.
Performance Parameters High‑precision analog signal sampling accuracy, stable digital driving output performance, reliable mixed‑signal channel fault‑detection capability.
Material Composition Multilayer glass‑fiber epoxy printed circuit board. Analog signal conditioning components, digital driving chips, surge and short‑circuit protection devices. Gold‑plated Mark V back‑plane edge connector. Front metal panel equipped with status LED indicators and fixing screws. Conformal protective coating layer.
Structural Characteristics Standard Mark V chassis plug‑in board dimension. Rear gold‑plated edge connector interfaces with Mark V back‑plane bus. Front metal panel mounts status LED indicators and fastening hardware. PCB layout implements strict physical separation between analog signal tracks and digital logic tracks to reduce cross‑interference.
Working Principle Board draws operating power from Mark V chassis back‑plane. Hardware monitoring circuit detects abnormal operating condition of each signal channel.
Installation Requirements Insert DS200TCDAH1B into corresponding chassis slot, tighten front‑panel fixing screws. Restore chassis power supply, execute system power‑on self‑test and mixed‑signal channel loop verification test.
Usage Notes Prevent mechanical scratch damage to conformal coating protective layer. Only install inside compatible GE Mark V turbine control chassis.
